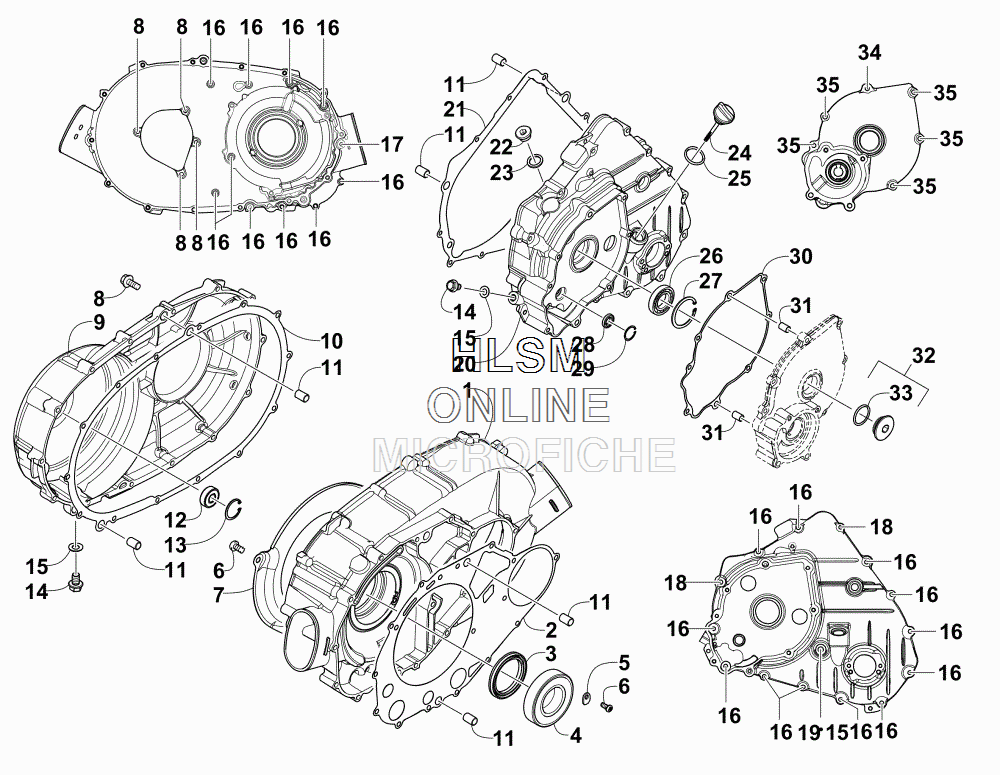

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat ALTERRA 450 GREEN [ACA2016KAK4CUSR] - 2016 года выпуска`
-
№АртикулНазвание
-
10806-026 COVER, CLUTCHCOVER, CLUTCH
-
20830-055 GASKETGASKET
-
30830-157 SEALSEAL
-
40832-071 BEARINGBEARING
-
50822-104 RETAINER, BEARINGRETAINER, BEARING
-
60826-144 SCREW, PPH - M6 X 1 X 12SCREW, PPH - M6 X 1 X 12
-
70806-103 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
83303-386 BOLT, FLANGEBOLT, FLANGE
-
90806-027 COVER, DRIVE BELTCOVER, DRIVE BELT
-
100830-056 GASKETGASKET
-
110829-046 PIN, DOWELPIN, DOWEL
-
120832-023 BEARINGBEARING
-
133303-347 RING, RETAININGRING, RETAINING
-
143304-544 BOLT FLANGE 8X12BOLT FLANGE 8X12
-
153303-591 WASHERWASHER
-
163307-053 BOLT, FLANGEBOLT, FLANGE
-
173307-054 SCREW, CAPSCREW, CAP
-
183307-062 BOLT FLANGE SH 6X50BOLT FLANGE SH 6X50
-
193307-060 BOLT FLANGE 8X140BOLT FLANGE 8X140
-
200806-122 COVER, MAGNETOCOVER, MAGNETO
-
210830-057 GASKETGASKET
-
220806-099 PLUGPLUG
-
230830-141 WASHER, CRUSHWASHER, CRUSH
-
240806-029 STICK, OIL LEVEL (INC. 25)STICK, OIL LEVEL (INC. 25)
-
253304-102 ...O-RING...O-RING
-
260832-053 BEARINGBEARING
-
273305-943 RING, RETAININGRING, RETAINING
-
283305-944 BEARINGBEARING
-
293305-942 RING, RETAININGRING, RETAINING
-
300830-206 GASKETGASKET
-
313301-716 PIN, DOWELPIN, DOWEL
-
320812-087 PLUG - ASSEMBLY (INC. 33)PLUG - ASSEMBLY (INC. 33)
-
330835-016 ...O-RING...O-RING
-
343307-055 BOLT FLANGE SH 6X30 (G)BOLT FLANGE SH 6X30 (G)
-
353304-189 BOLT, FLANGEBOLT, FLANGE
