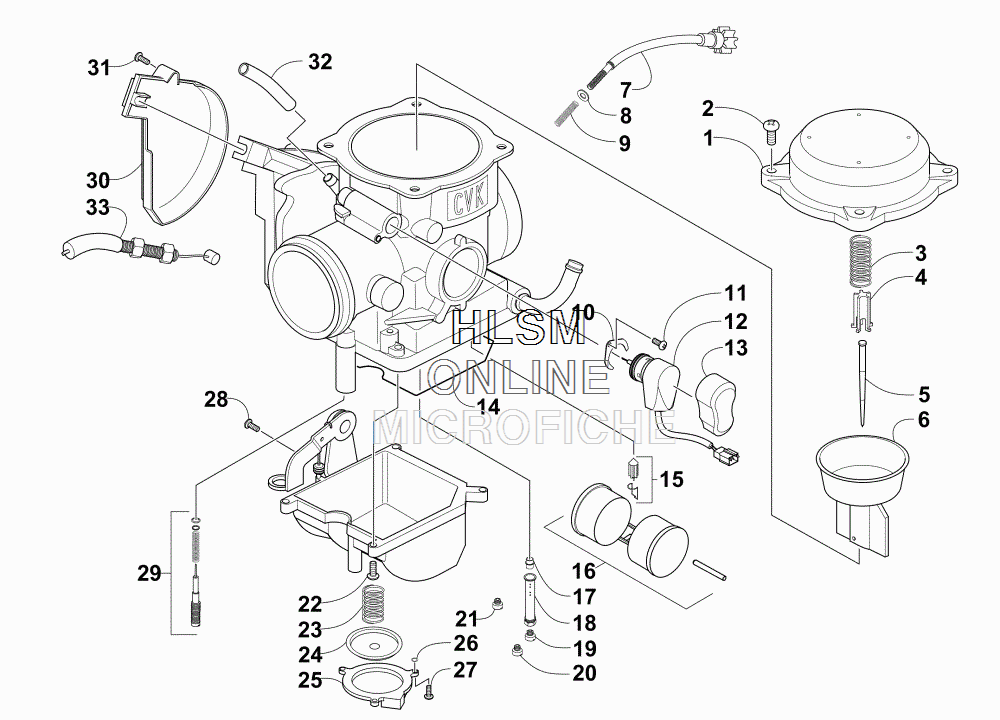

CARBURETOR для Arctic Cat ALTERRA 400 RED [A2016KAG4BUSR] - 2016 года выпуска`
-
№АртикулНазвание
-
-0470-737 CARBURETOR, CVK - 34MMCARBURETOR, CVK - 34MM
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, TOP COVERSCREW, TOP COVER
-
35507-240 SPRINGSPRING
-
45507-005 SEAT, SPRINGSEAT, SPRING
-
53307-641 JET NEEDLEJET NEEDLE
-
65507-004 PISTON, VACUUMPISTON, VACUUM
-
75507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
85507-028 WASHERWASHER
-
95507-029 SPRINGSPRING
-
105507-115 PLATEPLATE
-
113307-128 SCREW, MACHINESCREW, MACHINE
-
125507-180 CHOKE, ELECTRICCHOKE, ELECTRIC
-
135507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
145507-207 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
153306-755 VALVE, FLOAT - SETVALVE, FLOAT - SET
-
165507-039 FLOAT SETFLOAT SET
-
175507-007 NEEDLE JETNEEDLE JET
-
185507-047 HOLDER, JET - NEEDLEHOLDER, JET - NEEDLE
-
193305-434 JET, MAIN - 112JET, MAIN - 112
-
205507-097 JET, STARTER - 75JET, STARTER - 75
-
215507-246 JET, SLOW #38JET, SLOW #38
-
225507-017 SCREWSCREW
-
235507-032 SPRINGSPRING
-
245507-197 DIAPHRAGMDIAPHRAGM
-
255507-198 PUMP HOUSINGPUMP HOUSING
-
265507-034 U-RINGU-RING
-
275507-035 SCREW, MACHINESCREW, MACHINE
-
285507-050 SCREW, DRAINSCREW, DRAIN
-
295507-111 SCREW, PILOT - SETSCREW, PILOT - SET
-
305507-036 COVERCOVER
-
315507-037 SCREWSCREW
-
320410-070 HOSE - 25 FTHOSE - 25 FT
-
333306-275 CABLE, THROTTLECABLE, THROTTLE
