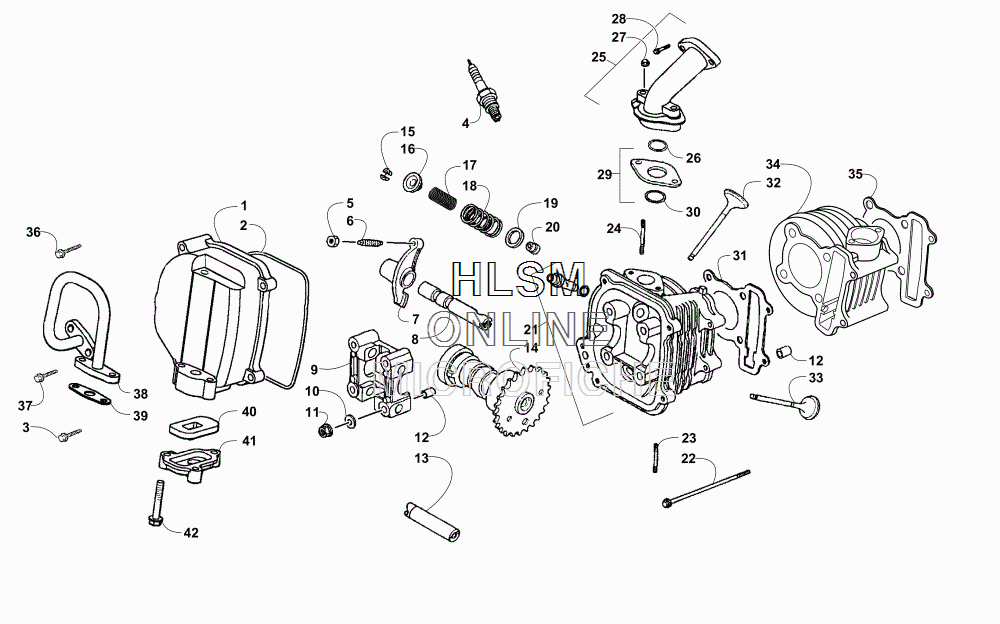

CYLINDER HEAD ASSEMBLY для Arctic Cat 90 2X4 UTILITY [A2016KUB2BUSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-594 COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 2
    3304-616 GASKET
    GASKET
  • 3
    3304-569 SCREW, CAP
    SCREW, CAP
  • 4
    0217-726 PLUG, SPARK (CR7HSA)
    PLUG, SPARK (CR7HSA)
  • 5
    3304-026 NUT, TAPPET ADJUSTING
    NUT, TAPPET ADJUSTING
  • 6
    3304-007 SCREW, TAPPET ADJUSTING
    SCREW, TAPPET ADJUSTING
  • 7
    3303-031 VALVE, ROCKER ARM
    VALVE, ROCKER ARM
  • 8
    3303-032 SHAFT, ROCKER ARM - INTAKE
    SHAFT, ROCKER ARM - INTAKE
  • 9
    3303-018 RETAINER, CAMSHAFT
    RETAINER, CAMSHAFT
  • 10
    3304-048 WASHER - 8 MM
    WASHER - 8 MM
  • 11
    3304-668 NUT, LOCK
    NUT, LOCK
  • 12
    3303-342 PIN, DOWEL
    PIN, DOWEL
  • 13
    3303-033 SHAFT, ROCKER ARM - EXHAUST
    SHAFT, ROCKER ARM - EXHAUST
  • 14
    3304-617 CAMSHAFT
    CAMSHAFT
  • 15
    3303-044 COTTER, VALVE
    COTTER, VALVE
  • 16
    3303-042 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 17
    3303-041 SPRING, VALVE - INNER
    SPRING, VALVE - INNER
  • 18
    3303-040 SPRING, VALVE - OUTER
    SPRING, VALVE - OUTER
  • 19
    3303-043 SEAT, VALVE SPRING
    SEAT, VALVE SPRING
  • 20
    3303-657 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 21
    3307-197 HEAD, CYLINDER
    HEAD, CYLINDER
  • 22
    3307-199 SCREW, CAP
    SCREW, CAP
  • 23
    3303-249 BOLT, STUD
    BOLT, STUD
  • 24
    3303-310 BOLT, STUD
    BOLT, STUD
  • 25
    3305-595 PIPE, INLET - ASSEMBLY (INC. 26)
    PIPE, INLET - ASSEMBLY (INC. 26)
  • 26
    3303-304 ...O-RING
    ...O-RING
  • 27
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 28
    3307-050 SCREW, CAP
    SCREW, CAP
  • 29
    3303-511 INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)
    INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)
  • 30
    3304-596 ...O-RING
    ...O-RING
  • 31
    3303-019 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 32
    3303-038 VALVE, INTAKE
    VALVE, INTAKE
  • 33
    3303-039 VALVE, EXHAUST
    VALVE, EXHAUST
  • 34
    3303-014 CYLINDER
    CYLINDER
  • 35
    3303-015 GASKET, CYLINDER
    GASKET, CYLINDER
  • 36
    3305-402 SCREW, CAP
    SCREW, CAP
  • 37
    3304-793 BOLT, FLANGE
    BOLT, FLANGE
  • 38
    3305-589 PIPE, AIR INTAKE
    PIPE, AIR INTAKE
  • 39
    3305-356 GASKET
    GASKET
  • 40
    3305-353 VALVE, REED
    VALVE, REED
  • 41
    3305-354 COVER, REED VALVE
    COVER, REED VALVE
  • 41
    3305-354 COVER, REED VALVE
    COVER, REED VALVE
  • 42
    3307-198 BOLT, FLANGE 6*50
    BOLT, FLANGE 6*50
