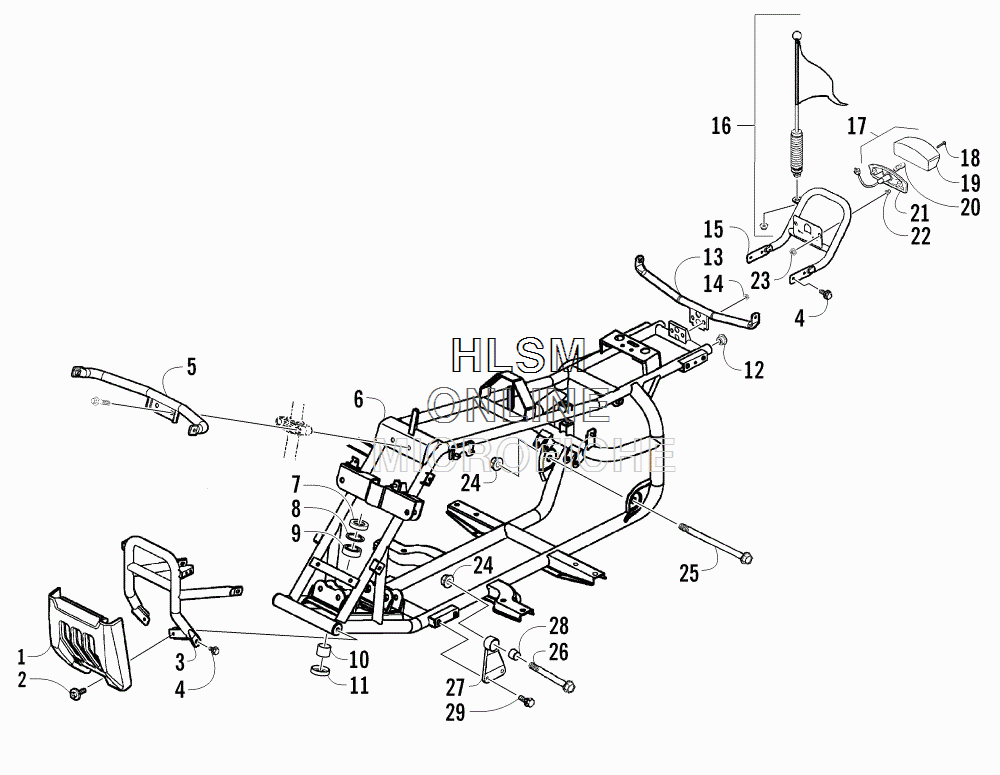

FRAME AND RELATED PARTS ASSEMBLY для Arctic Cat 90 2X4 DVX [A2016KSB2BUST] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-140 COVER, FRONT BUMPER - MED. GRAY
    COVER, FRONT BUMPER - MED. GRAY
  • 2
    3304-587 SCREW, CAP
    SCREW, CAP
  • 3
    3306-118 BUMPER, FRONT
    BUMPER, FRONT
  • 4
    3304-544 SCREW, CAP
    SCREW, CAP
  • 5
    3305-511 BRACKET, SUPPORT - FRONT
    BRACKET, SUPPORT - FRONT
  • 6
    3305-864 FRAME
    FRAME
  • 7
    3303-295 SEAL, OIL
    SEAL, OIL
  • 8
    3303-347 RING, RETAINING
    RING, RETAINING
  • 9
    3303-392 BEARING
    BEARING
  • 10
    3303-445 SPACER
    SPACER
  • 11
    3303-298 SEAL, OIL
    SEAL, OIL
  • 13
    3305-514 BRACKET, SUPPORT - REAR
    BRACKET, SUPPORT - REAR
  • 14
    3304-668 NUT, LOCK
    NUT, LOCK
  • 15
    3305-512 GRIP, REAR
    GRIP, REAR
  • 16
    3305-308 FLAG ASSEMBLY
    FLAG ASSEMBLY
  • 17
    3303-420 TAILLIGHT - ASSEMBLY (INC. 18-21)
    TAILLIGHT - ASSEMBLY (INC. 18-21)
  • 18
    3304-537 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    3304-283 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 20
    3303-849 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 21
    3303-422 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 22
    3303-226 INSERT
    INSERT
  • 23
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 24
    3304-031 U-NUT
    U-NUT
  • 25
    3323-188 SCREW, CAP
    SCREW, CAP
  • 26
    3304-548 BOLT, FLANGE
    BOLT, FLANGE
  • 27
    3303-183 BRACKET, ENGINE HANGER - RIGHT (INC. 28)
    BRACKET, ENGINE HANGER - RIGHT (INC. 28)
  • 27
    3303-184 BRACKET, ENGINE HANGER - LEFT (INC. 28)
    BRACKET, ENGINE HANGER - LEFT (INC. 28)
  • 28
    3304-542 BUSHING, RUBBER
    BUSHING, RUBBER
  • 29
    3304-543 SCREW, CAP
    SCREW, CAP
