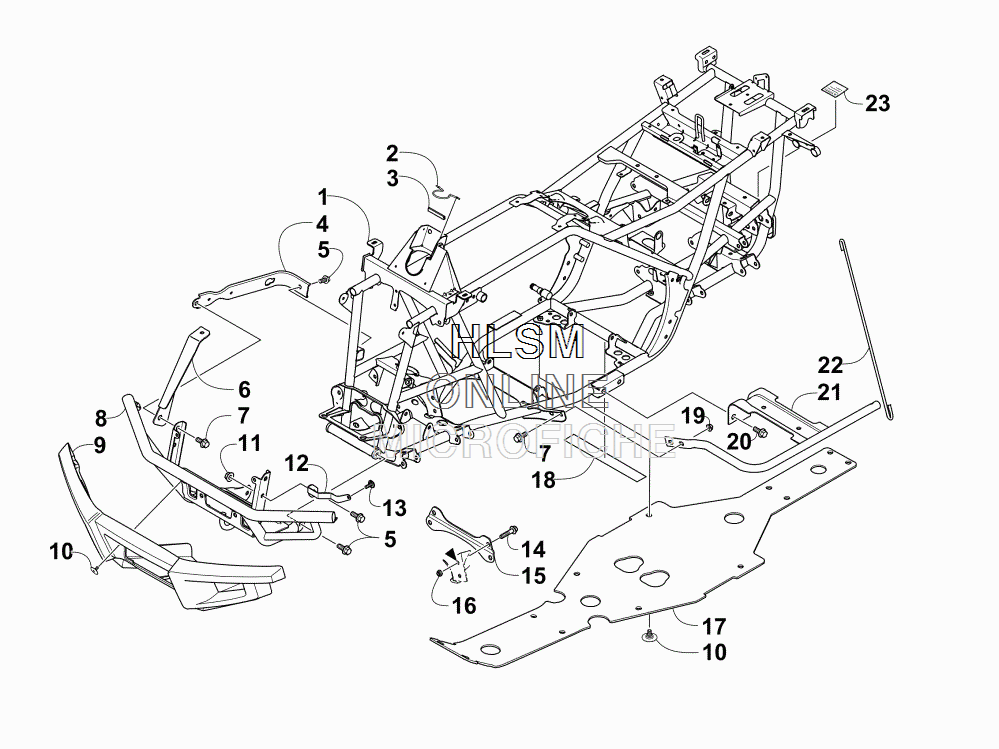

FRAME AND RELATED PARTS для Arctic Cat 500 RED [A2016ICK4CUSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4506-550 FRAME, MAIN
    FRAME, MAIN
  • 2
    2416-401 CLIP, ROUTING
    CLIP, ROUTING
  • 3
    0706-371 TRIM - 3 FT
    TRIM - 3 FT
  • 4
    1506-596 CHANNEL, MOUNTING - BUMPER - RIGHT
    CHANNEL, MOUNTING - BUMPER - RIGHT
  • 5
    8409-020 SCREW, CAP
    SCREW, CAP
  • 6
    1506-686 BRACKET, MOUNTING - BUMPER - RIGHT
    BRACKET, MOUNTING - BUMPER - RIGHT
  • 6
    1506-687 BRACKET, MOUNTING - BUMPER - LEFT
    BRACKET, MOUNTING - BUMPER - LEFT
  • 7
    8408-816 SCREW, CAP
    SCREW, CAP
  • 8
    1506-684 BUMPER, FRONT
    BUMPER, FRONT
  • 9
    1406-868 FASCIA, BUMPER - FRONT - (BLACK)
    FASCIA, BUMPER - FRONT - (BLACK)
  • 10
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 11
    8424-002 NUT
    NUT
  • 12
    2516-594 BRACKET, SUPPORT - RIGHT
    BRACKET, SUPPORT - RIGHT
  • 12
    2516-595 BRACKET, SUPPORT - LEFT
    BRACKET, SUPPORT - LEFT
  • 13
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    8409-025 SCREW, CAP
    SCREW, CAP
  • 15
    2516-852 BRACE, A-ARM
    BRACE, A-ARM
  • 16
    0423-744 NUT, LOCK
    NUT, LOCK
  • 17
    1406-030 PANEL, BELLY
    PANEL, BELLY
  • 18
    0406-289 PAD, FRAME
    PAD, FRAME
  • 19
    8424-802 NUT
    NUT
  • 20
    8409-016 SCREW, CAP
    SCREW, CAP
  • 21
    1506-659 FOOTREST - RIGHT (BLACK)
    FOOTREST - RIGHT (BLACK)
  • 21
    1506-660 FOOTREST - LEFT (BLACK)
    FOOTREST - LEFT (BLACK)
  • 22
    2506-426 ROD, SUPPORT - (BLACK)
    ROD, SUPPORT - (BLACK)
  • 23
    4411-550 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
