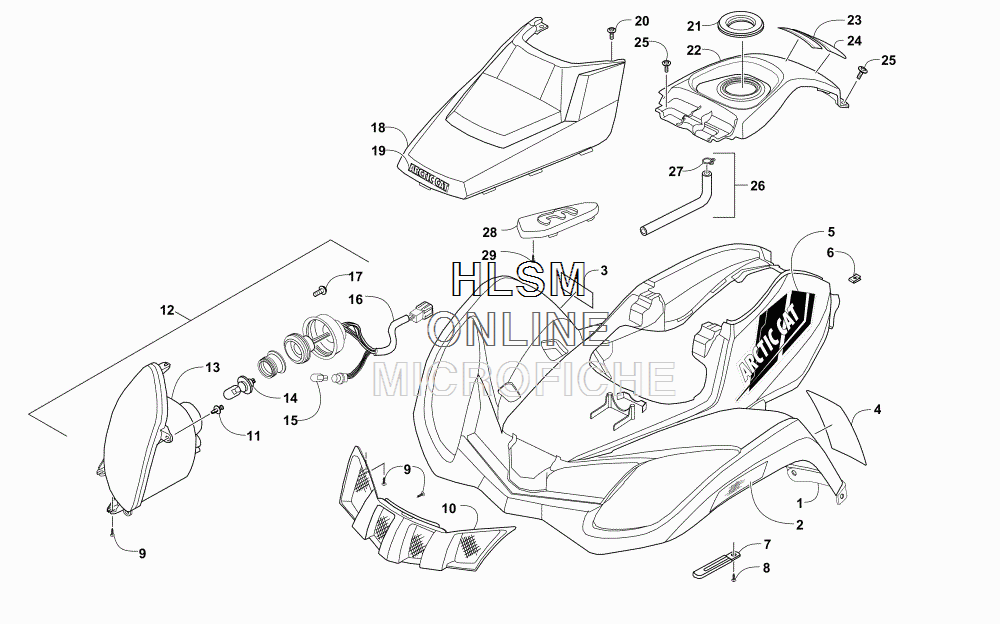

FRONT BODY AND HEADLIGHT ASSEMBLY для Arctic Cat 300 2X4 UTILITY GREEN [A2016KUF2BUSZ] - 2016 года выпуска

№

Артикул

Название
1

3307-235 PANEL, FENDER - ASSEMBLY (INC. 2-4)

PANEL, FENDER - ASSEMBLY (INC. 2-4)

50 120 ₽
2

1411-180 ...DECAL, REFLECTOR - RIGHT - AMBER

...DECAL, REFLECTOR - RIGHT - AMBER

2 070 ₽
2

1411-181 ...DECAL, REFLECTOR - LEFT - AMBER

...DECAL, REFLECTOR - LEFT - AMBER

2 070 ₽
3

4411-818 ...DECAL, WARNING - TURN/HILL

...DECAL, WARNING - TURN/HILL

460 ₽
4

1411-932 ...DECAL, WARNING - GENERAL

...DECAL, WARNING - GENERAL

1 870 ₽
5

5411-340 DECAL, SIDE - UPPER RIGHT - LIME

DECAL, SIDE - UPPER RIGHT - LIME

8 730 ₽
5

5411-341 DECAL, SIDE - UPPER LEFT - LIME

DECAL, SIDE - UPPER LEFT - LIME

8 730 ₽
6

3304-061 NUT CLIP 5 MM

NUT CLIP 5 MM

360 ₽
7

3304-156 CLAMP, ROUTING

CLAMP, ROUTING

290 ₽
8

3304-651 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
9

3304-645 SCREW, SELF-TAPPING - 5 X 12

SCREW, SELF-TAPPING - 5 X 12

190 ₽
10

3307-237 GRILLE - GREEN

GRILLE - GREEN

2 070 ₽
11

3304-057 CLIP, FENDER

CLIP, FENDER

290 ₽
12

3303-844 HEADLIGHT - ASSEMBLY - RIGHT (INC. 13, ONE NO. 14, ONE NO. 15, AND ONE NO. 16)

HEADLIGHT - ASSEMBLY - RIGHT (INC. 13, ONE NO. 14, ONE NO. 15, AND ONE NO. 16)

24 950 ₽
12

3303-845 HEADLIGHT - ASSEMBLY - LEFT (INC. 13, ONE NO. 14, ONE NO. 15, AND ONE NO. 16)

HEADLIGHT - ASSEMBLY - LEFT (INC. 13, ONE NO. 14, ONE NO. 15, AND ONE NO. 16)

27 870 ₽
13

3304-643 ...LENS, HEADLIGHT - RIGHT

...LENS, HEADLIGHT - RIGHT

19 340 ₽
13

3304-644 ...LENS, HEADLIGHT - LEFT

...LENS, HEADLIGHT - LEFT

26 830 ₽
14

3303-846 ...BULB, HEADLIGHT

...BULB, HEADLIGHT

6 230 ₽
15

3303-847 ...BULB

...BULB

860 ₽
16

3305-065 ...SOCKET, HEADLIGHT - ASSEMBLY

...SOCKET, HEADLIGHT - ASSEMBLY

4 570 ₽
17

3304-587 BOLT WASHER 6X16

BOLT WASHER 6X16

190 ₽
18

3307-236 COVER, ACCESS - LIME

COVER, ACCESS - LIME

2 910 ₽
19

2411-465 DECAL, "ARCTIC CAT"

DECAL, "ARCTIC CAT"

1 660 ₽
20

3303-263 BOLT, WASHER

BOLT, WASHER

130 ₽
21

3303-721 GROMMET, COVER

GROMMET, COVER

1 660 ₽
22

3306-220 COVER, GAS TANK - BLACK (INC. 23-24)

COVER, GAS TANK - BLACK (INC. 23-24)

7 070 ₽
23

1411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS

...DECAL, WARNING - NOT FOR HIGHWAYS

7 480 ₽
24

1411-804 ...DECAL, WARNING - AGE (16)

...DECAL, WARNING - AGE (16)

750 ₽
25

3304-029 BOLT, WASHER - 5 X 16

BOLT, WASHER - 5 X 16

130 ₽
26

3303-720 TUBE, DRAIN (INC. 27)

TUBE, DRAIN (INC. 27)

2 070 ₽
27

3303-349 ...CLAMP, HOSE

...CLAMP, HOSE

150 ₽
28

3303-976 GUIDE, SHIFT HANDLE

GUIDE, SHIFT HANDLE

2 070 ₽
29

3304-650 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
