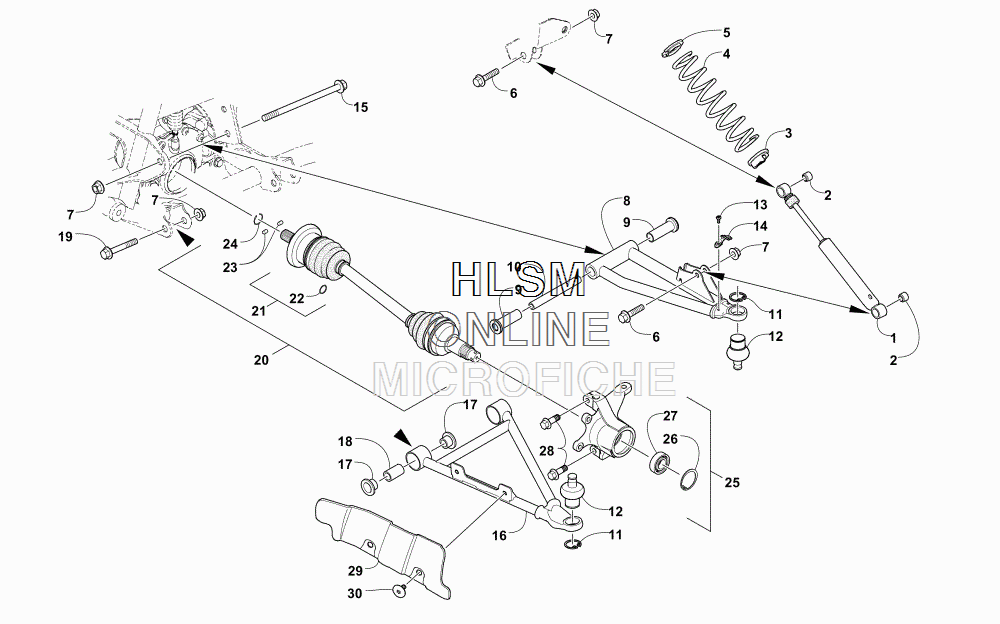

FRONT SUSPENSION ASSEMBLY для Arctic Cat 1000 XT GREEN [A2016AGW1PUSX] - 2016 года выпуска`
-
№АртикулНазвание
-
10403-188 SHOCK ABSORBER (INC. 2)SHOCK ABSORBER (INC. 2)
-
20403-182 ...BUSHING...BUSHING
-
30403-395 CAM, ADJUSTER - SPRINGCAM, ADJUSTER - SPRING
-
40503-511 SPRING, SUSPENSION - (WHITE)SPRING, SUSPENSION - (WHITE)
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
68409-040 SCREW, CAPSCREW, CAP
-
70423-744 NUT, LOCKNUT, LOCK
-
80503-416 A-ARM, FRONT UPPER - RIGHT - (BLACK) - ASSEMBLY (INC. TWO NO. 9, ONE NO. 10, TWO NO. 11, AND TWO NO. 12)A-ARM, FRONT UPPER - RIGHT - (BLACK) - ASSEMBLY (INC. TWO NO. 9, ONE NO. 10, TWO NO. 11, AND TWO NO. 12)
-
80503-417 A-ARM, FRONT UPPER - LEFT - (BLACK) - ASSEMBLY (INC. TWO NO. 9, ONE NO. 10, TWO NO. 11, AND TWO NO. 12)A-ARM, FRONT UPPER - LEFT - (BLACK) - ASSEMBLY (INC. TWO NO. 9, ONE NO. 10, TWO NO. 11, AND TWO NO. 12)
-
90403-289 ...BUSHING, UPPER A-ARM SUSPENSION...BUSHING, UPPER A-ARM SUSPENSION
-
100403-439 ...AXLE...AXLE
-
110423-009 ......CLIP, BALL JOINT......CLIP, BALL JOINT
-
120405-483 ......BALLJOINT-ASSY (DOUBLE STAKE)......BALLJOINT-ASSY (DOUBLE STAKE)
-
130423-946 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141502-594 CLAMP, ROUTINGCLAMP, ROUTING
-
150423-334 SCREW, CAPSCREW, CAP
-
160503-376 A-ARM, FRONT LOWER - RIGHT - ASSEMBLY (BLACK) (INC. FOUR NO. 17, TWO NO. 18, ONE NO. 11, AND ONE NO. 12)A-ARM, FRONT LOWER - RIGHT - ASSEMBLY (BLACK) (INC. FOUR NO. 17, TWO NO. 18, ONE NO. 11, AND ONE NO. 12)
-
160503-377 A-ARM, FRONT LOWER - LEFT - ASSEMBLY (BLACK) (INC. FOUR NO. 17, TWO NO. 18, ONE NO. 11, AND ONE NO. 12)A-ARM, FRONT LOWER - LEFT - ASSEMBLY (BLACK) (INC. FOUR NO. 17, TWO NO. 18, ONE NO. 11, AND ONE NO. 12)
-
170403-409 ...BUSHING,A-ARM SUSPENSION...BUSHING,A-ARM SUSPENSION
-
180403-438 ...COLLAR,SUSPENSION BUSHING-A-ARM...COLLAR,SUSPENSION BUSHING-A-ARM
-
198409-075 SCREW, CAPSCREW, CAP
-
202502-307 KIT, HALFSHAFT (INC. 21-24)KIT, HALFSHAFT (INC. 21-24)
-
212436-112 REPAIR KIT, BOOT (INC. 22)REPAIR KIT, BOOT (INC. 22)
-
221441-988 CLIP, RETAININGCLIP, RETAINING
-
231402-885 PIN, DETENTPIN, DETENT
-
241402-889 CLIP, RETAININGCLIP, RETAINING
-
250505-578 KNUCKLE, STEERING - RIGHT - ASSEMBLY (INC. ONE NO. 26 AND ONE NO. 27)KNUCKLE, STEERING - RIGHT - ASSEMBLY (INC. ONE NO. 26 AND ONE NO. 27)
-
250505-579 KNUCKLE, STEERING - LEFT - ASSEMBLY (INC. ONE NO. 26 AND ONE NO. 27)KNUCKLE, STEERING - LEFT - ASSEMBLY (INC. ONE NO. 26 AND ONE NO. 27)
-
260423-423 ...RING, RETAINING...RING, RETAINING
-
271402-809 ...BEARING,WHEEL...BEARING,WHEEL
-
280423-998 SCREW, SHOULDERSCREW, SHOULDER
-
291406-034 GUARD, BOOT - AXLE - RIGHTGUARD, BOOT - AXLE - RIGHT
-
291406-035 GUARD, BOOT - AXLE - LEFTGUARD, BOOT - AXLE - LEFT
-
300423-545 SCREW, SHOULDERSCREW, SHOULDER
