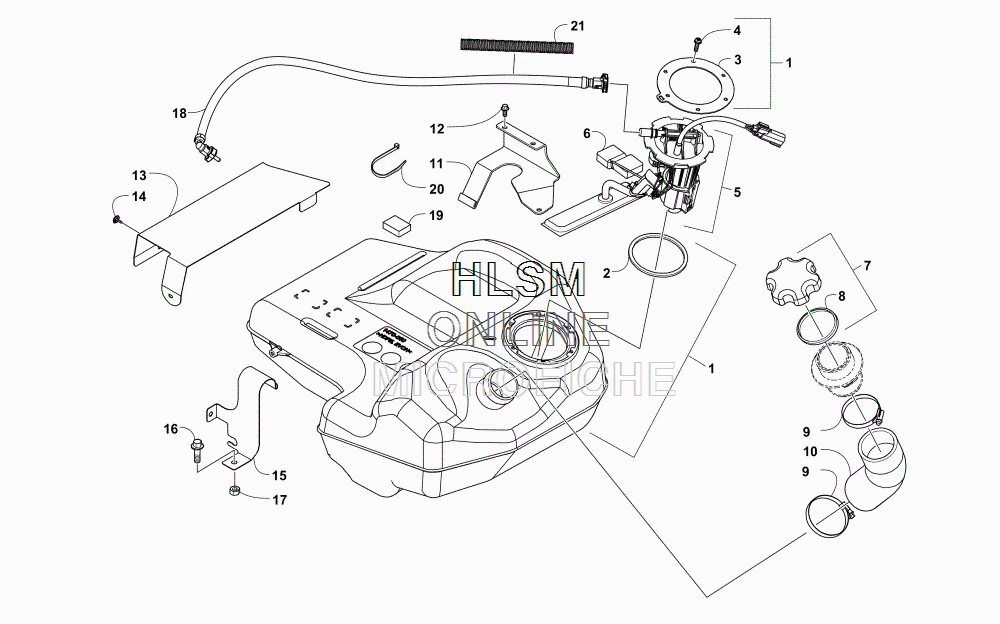

GAS TANK ASSEMBLY для Arctic Cat XR 500 RED [A2015XAK4USR] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-418 TANK, GAS - ASSEMBLY (INC. 2-4)
    TANK, GAS - ASSEMBLY (INC. 2-4)
  • 2
    0470-838 ...SEAL
    ...SEAL
  • 3
    2670-042 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 4
    0423-898 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    0570-430 PUMP, FUEL - ASSEMBLY (INC. 6)
    PUMP, FUEL - ASSEMBLY (INC. 6)
  • 6
    2670-235 ...FLOAT
    ...FLOAT
  • 7
    3306-297 CAP, GAS TANK (INC. 8)
    CAP, GAS TANK (INC. 8)
  • 8
    3306-298 ...GASKET, GAS TANK CAP
    ...GASKET, GAS TANK CAP
  • 9
    0624-390 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    0410-192 HOSE, FILLER - FUEL
    HOSE, FILLER - FUEL
  • 11
    1470-064 BRACKET, FUEL TANK - REAR
    BRACKET, FUEL TANK - REAR
  • 12
    8408-620 SCREW, CAP
    SCREW, CAP
  • 13
    1470-070 SHIELD, HEAT
    SHIELD, HEAT
  • 14
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    7506-226 BRACKET, FUEL TANK
    BRACKET, FUEL TANK
  • 16
    8408-816 SCREW, CAP
    SCREW, CAP
  • 17
    8420-802 NUT
    NUT
  • 18
    0410-261 HOSE, GASLINE
    HOSE, GASLINE
  • 19
    1470-094 FOAM, FUEL TANK
    FOAM, FUEL TANK
  • 20
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 21
    0619-776 CONDUIT - 5 FT
    CONDUIT - 5 FT
