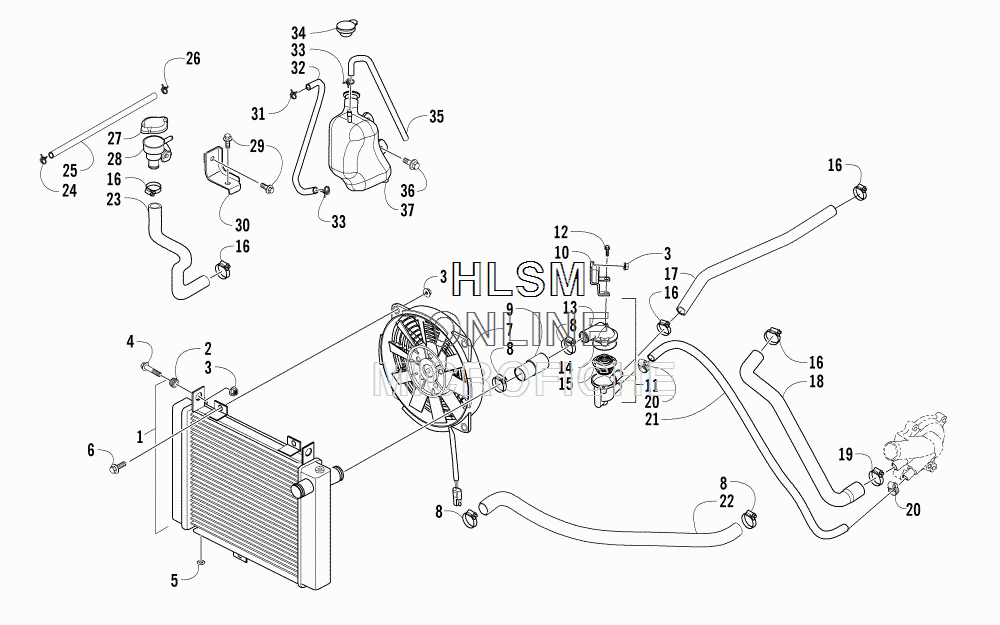

COOLING ASSEMBLY для Arctic Cat XC 450 EFI ORANGE [A2015KCK4CUSY] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-533 RADIATOR (INC. 2)
    RADIATOR (INC. 2)
  • 2
    0423-030 ...GROMMET
    ...GROMMET
  • 3
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 4
    3313-166 SCREW, SHOULDER
    SCREW, SHOULDER
  • 5
    0423-028 BUSHING
    BUSHING
  • 6
    3304-587 SCREW, CAP
    SCREW, CAP
  • 7
    3323-204 FAN, COOLING - ASSEMBLY
    FAN, COOLING - ASSEMBLY
  • 8
    3306-256 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    3306-438 HOSE, COOLANT - RADIATOR/THERMOSTAT
    HOSE, COOLANT - RADIATOR/THERMOSTAT
  • 10
    3306-260 BRACKET, MOUNTING - THERMOSTAT HOUSING
    BRACKET, MOUNTING - THERMOSTAT HOUSING
  • 11
    0808-192 HOUSING, THERMOSTAT - ASSEMBLY (INC. 12-15)
    HOUSING, THERMOSTAT - ASSEMBLY (INC. 12-15)
  • 12
    3303-384 ...BOLT, FLANGE
    ...BOLT, FLANGE
  • 13
    0808-202 ...COVER, HOUSING - THERMOSTAT
    ...COVER, HOUSING - THERMOSTAT
  • 14
    0830-205 ...O-RING
    ...O-RING
  • 15
    0813-050 ...THERMOSTAT
    ...THERMOSTAT
  • 16
    1423-008 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    3306-255 HOSE, COOLANT - THERMOSTAT/CYLINDER
    HOSE, COOLANT - THERMOSTAT/CYLINDER
  • 18
    0410-216 HOSE, COOLANT - WATER PUMP/CYLINDER
    HOSE, COOLANT - WATER PUMP/CYLINDER
  • 19
    3305-941 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    0423-098 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    3306-258 HOSE, COOLANT - THERMOSTAT/WATER PUMP
    HOSE, COOLANT - THERMOSTAT/WATER PUMP
  • 22
    3306-535 HOSE, COOLANT - RADIATOR/WATER PUMP
    HOSE, COOLANT - RADIATOR/WATER PUMP
  • 23
    3306-536 HOSE, COOLANT - FILLER NECK/RADIATOR
    HOSE, COOLANT - FILLER NECK/RADIATOR
  • 24
    3304-161 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    3306-534 HOSE, COOLANT - FILLER NECK/THERMOSTAT
    HOSE, COOLANT - FILLER NECK/THERMOSTAT
  • 26
    3306-349 CLAMP, HOSE
    CLAMP, HOSE
  • 27
    3303-748 CAP, FILLER NECK
    CAP, FILLER NECK
  • 28
    3303-738 NECK, FILLER
    NECK, FILLER
  • 29
    3304-553 BOLT, FLANGE - 6 X 12
    BOLT, FLANGE - 6 X 12
  • 30
    3306-336 BRACKET, MOUNTING - FILLER NECK
    BRACKET, MOUNTING - FILLER NECK
  • 31
    3303-349 CLAMP, HOSE
    CLAMP, HOSE
  • 32
    3306-340 HOSE, COOLANT - RESERVOIR/FILLER NECK
    HOSE, COOLANT - RESERVOIR/FILLER NECK
  • 33
    3304-163 CLAMP, HOSE
    CLAMP, HOSE
  • 34
    3303-749 CAP, RESERVOIR
    CAP, RESERVOIR
  • 35
    3306-339 HOSE, VENT
    HOSE, VENT
  • 36
    3304-652 SCREW, CAP
    SCREW, CAP
  • 37
    3313-661 TANK, RESERVOIR
    TANK, RESERVOIR
