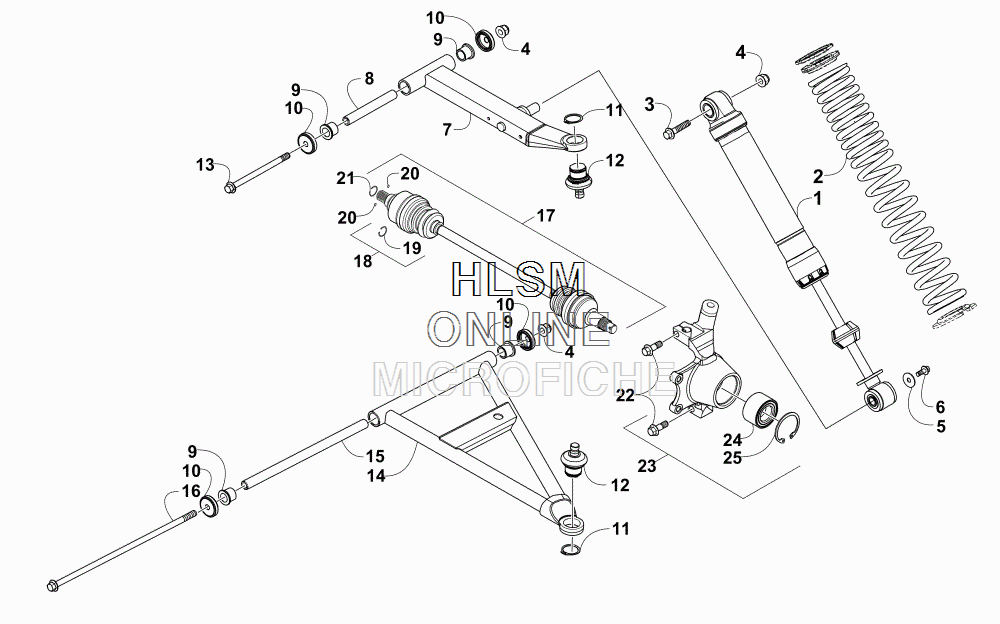

FRONT SUSPENSION ASSEMBLY для Arctic Cat WILDCAT TRAIL XT GREEN [U2015WCT4CUSX] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0403-292 SHOCK ABSORBER
    SHOCK ABSORBER
  • 2
    0504-794 SPRING, SUSPENSION - WHITE
    SPRING, SUSPENSION - WHITE
  • 3
    8409-055 SCREW, CAP
    SCREW, CAP
  • 4
    1423-334 NUT, LOCK
    NUT, LOCK
  • 5
    0423-087 WASHER
    WASHER
  • 6
    8408-821 SCREW, CAP
    SCREW, CAP
  • 7
    0503-814 A-ARM, UPPER RIGHT - RED (INC.8-12)
    A-ARM, UPPER RIGHT - RED (INC.8-12)
  • 7
    0503-815 A-ARM, UPPER LEFT - RED (INC. 8-12)
    A-ARM, UPPER LEFT - RED (INC. 8-12)
  • 8
    0403-305 ...SLEEVE
    ...SLEEVE
  • 9
    0403-264 ...BUSHING
    ...BUSHING
  • 10
    1423-204 ...SEAL
    ...SEAL
  • 11
    0423-009 ...CLIP, BALL JOINT
    ...CLIP, BALL JOINT
  • 12
    0405-483 ...BALL JOINT
    ...BALL JOINT
  • 13
    1423-215 SCREW, CAP
    SCREW, CAP
  • 14
    0503-838 A-ARM, LOWER RIGHT - RED (INC. 9-12 AND 15)
    A-ARM, LOWER RIGHT - RED (INC. 9-12 AND 15)
  • 14
    0503-839 A-ARM, LOWER LEFT - RED (INC. 9-12 AND 15)
    A-ARM, LOWER LEFT - RED (INC. 9-12 AND 15)
  • 15
    0403-402 ...SLEEVE
    ...SLEEVE
  • 16
    1423-249 SCREW, CAP
    SCREW, CAP
  • 17
    2502-348 KIT, HALFSHAFT (INC. 18-21)
    KIT, HALFSHAFT (INC. 18-21)
  • 18
    2436-112 REPAIR KIT, BOOT (INC. 19)
    REPAIR KIT, BOOT (INC. 19)
  • 19
    1441-988 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 20
    1402-885 PIN, DETENT
    PIN, DETENT
  • 21
    1402-889 CLIP, RETAINING
    CLIP, RETAINING
  • 22
    0423-998 SCREW, SHOULDER
    SCREW, SHOULDER
  • 23
    0503-626 KNUCKLE ASSEMBLY - RIGHT (INC. 24-25)
    KNUCKLE ASSEMBLY - RIGHT (INC. 24-25)
  • 23
    0503-627 KNUCKLE ASSEMBLY - LEFT (INC. 24-25)
    KNUCKLE ASSEMBLY - LEFT (INC. 24-25)
  • 24
    1402-809 ...BEARING
    ...BEARING
  • 25
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
