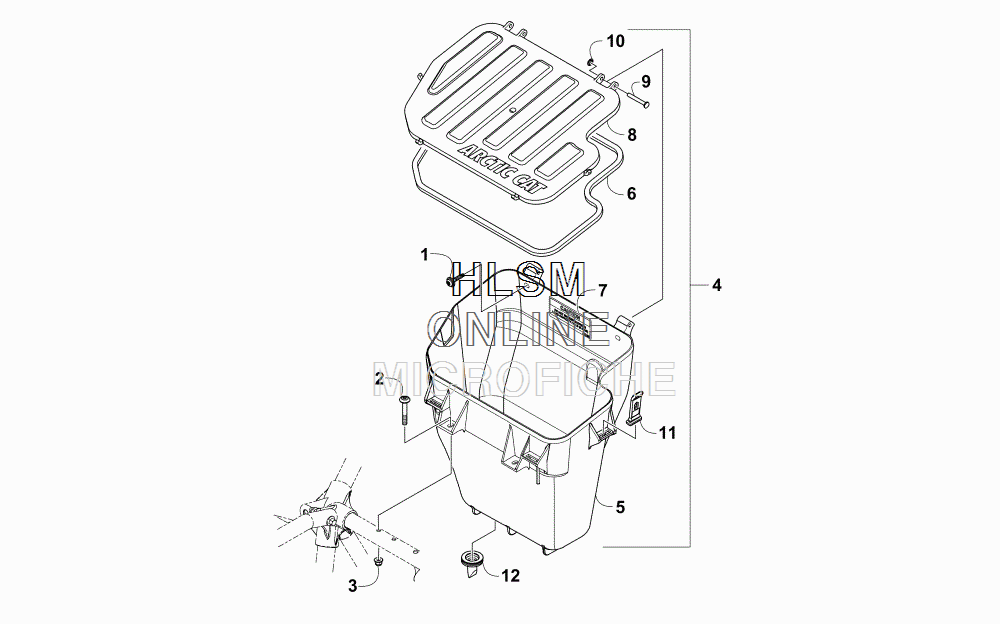

FRONT STORAGE BOX для Arctic Cat WILDCAT SPORT LIMITED BLACK [U2015W8T2PUSJ] - 2015 года выпуска`
-
№АртикулНазвание
-
11423-281 SCREW, SHOULDERSCREW, SHOULDER
-
28476-640 SCREW, MACHINESCREW, MACHINE
-
38427-602 NUT, LOCKNUT, LOCK
-
45506-626 BOX, STORAGE ASSEMBLY (INC. 5-12)BOX, STORAGE ASSEMBLY (INC. 5-12)
-
54406-540 ...BOTTOM, STORAGE BOX...BOTTOM, STORAGE BOX
-
60470-995 ...GASKET...GASKET
-
74411-573 ...DECAL, CAUTION LOAD CAPACITY (15LBS)...DECAL, CAUTION LOAD CAPACITY (15LBS)
-
84406-619 ...LID, STORAGE BOX...LID, STORAGE BOX
-
90623-772 ...RIVET...RIVET
-
102623-001 ...NUT, PUSH...NUT, PUSH
-
111406-134 ...STRAP, HATCH...STRAP, HATCH
-
120470-442 ...VALVE, AIR CLEANER...VALVE, AIR CLEANER
