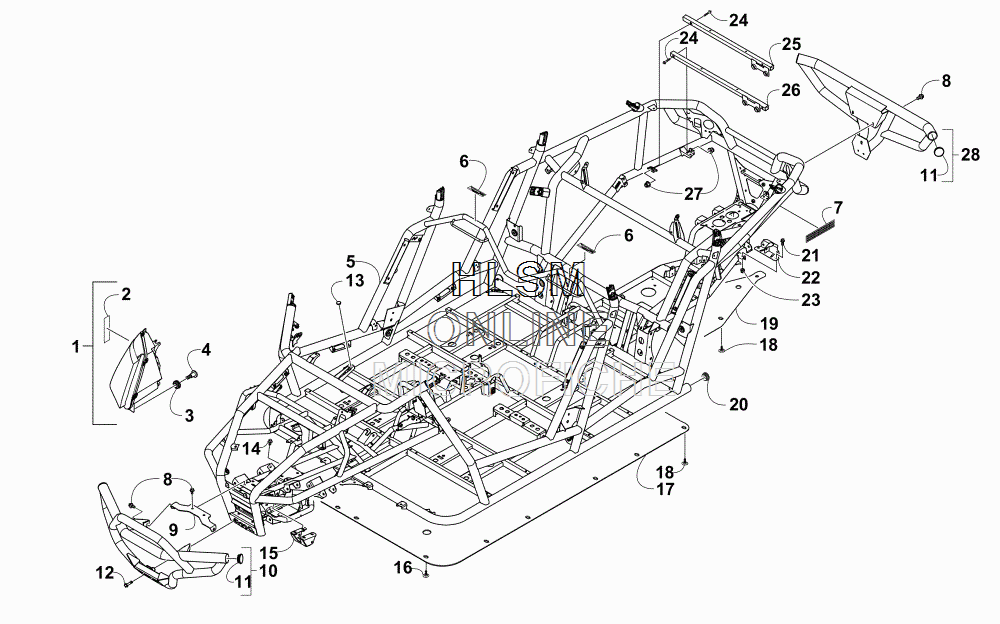

FRAME- HEADLIGHTS- AND RELATED PARTS для Arctic Cat WILDCAT 4X BLUE [U2015WFW1PUSD] - 2015 года выпуска`
-
№АртикулНазвание
-
10509-064 HEADLIGHT ASSEMBLY - RIGHT (INC. 2)HEADLIGHT ASSEMBLY - RIGHT (INC. 2)
-
22411-972 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
10509-065 HEADLIGHT ASSEMBLY - LEFT (INC. 2)HEADLIGHT ASSEMBLY - LEFT (INC. 2)
-
22411-973 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
31423-104 GROMMETGROMMET
-
40423-356 SCREW, SHOULDERSCREW, SHOULDER
-
57506-006 FRAME, MAIN (INC. 6-7)FRAME, MAIN (INC. 6-7)
-
63411-253 ...DECAL, WARNING - SEAT BELT...DECAL, WARNING - SEAT BELT
-
72411-974 ...DECAL, REFLECTOR - RED...DECAL, REFLECTOR - RED
-
88410-816 SCREW, CAPSCREW, CAP
-
95506-176 BRACKET, MOUNTINGBRACKET, MOUNTING
-
105506-441 BUMPER, FRONT - BLUE (INC. TWO NO. 11)BUMPER, FRONT - BLUE (INC. TWO NO. 11)
-
111423-190 ...CAPS - BLACK...CAPS - BLACK
-
128410-640 SCREW, CAPSCREW, CAP
-
130406-877 BUMPERBUMPER
-
148409-018 SCREW, CAPSCREW, CAP
-
154506-703 BRACKET, SUPPORT - FRONT GEARCASEBRACKET, SUPPORT - FRONT GEARCASE
-
160423-101 SCREW, SHOULDERSCREW, SHOULDER
-
174506-843 PLATE, SKID - FRONTPLATE, SKID - FRONT
-
181423-109 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
194506-407 PLATE, SKID - REARPLATE, SKID - REAR
-
202416-962 PLUG, HOLEPLUG, HOLE
-
218409-025 SCREW, CAPSCREW, CAP
-
224506-637 BRACKET, SUPPORT - REAR GEARCASEBRACKET, SUPPORT - REAR GEARCASE
-
238428-002 NUT, LOCKNUT, LOCK
-
248408-845 SCREW, CAPSCREW, CAP
-
254506-680 TUBE, SUPPORT - FRONTTUBE, SUPPORT - FRONT
-
264506-682 TUBE, SUPPORT - REARTUBE, SUPPORT - REAR
-
278427-802 NUT, LOCKNUT, LOCK
-
285506-442 BUMPER, REAR - BLUE (INC. TWO NO. 11)BUMPER, REAR - BLUE (INC. TWO NO. 11)
