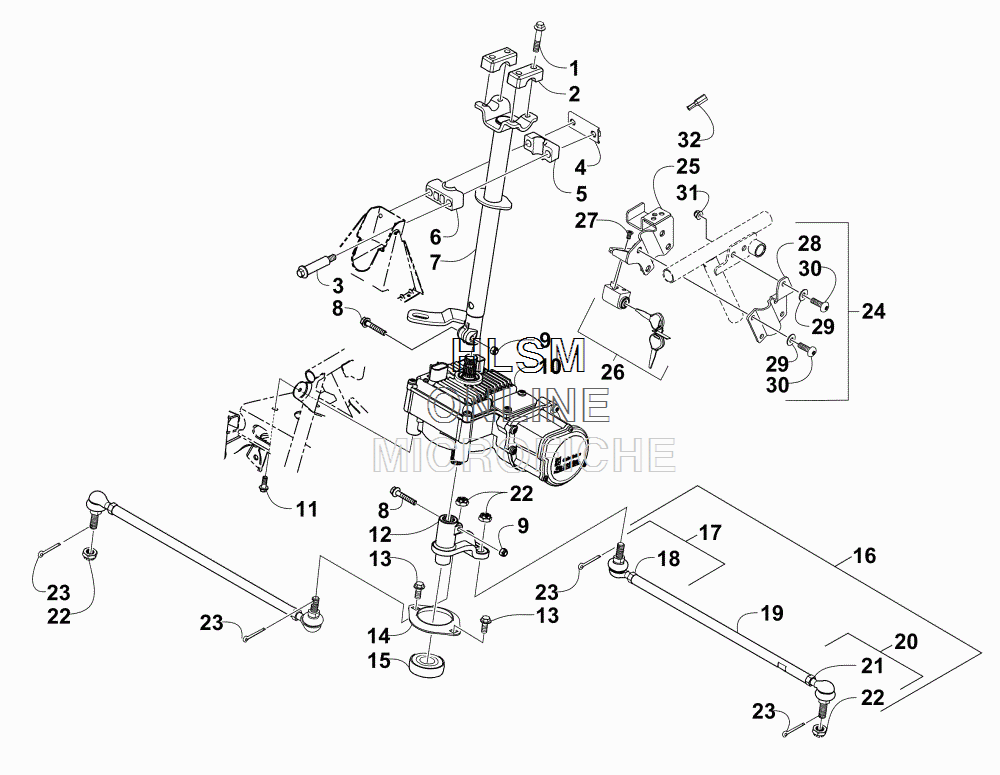

STEERING ASSEMBLY для Arctic Cat TRV 700 XT EFT RED [A2015TGT1PETE] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-835 SCREW, CAP
    SCREW, CAP
  • 2
    0405-035 CAP, STEERING ADJUSTER
    CAP, STEERING ADJUSTER
  • 3
    0423-505 SCREW, SHOULDER
    SCREW, SHOULDER
  • 4
    0505-484 CAP, HOUSING
    CAP, HOUSING
  • 5
    0405-260 HOUSING, UPPER
    HOUSING, UPPER
  • 6
    0405-259 HOUSING, LOWER
    HOUSING, LOWER
  • 7
    0505-712 POST, STEERING
    POST, STEERING
  • 8
    8020-045 SCREW, CAP
    SCREW, CAP
  • 9
    8040-366 NUT, LOCK
    NUT, LOCK
  • 10
    0505-914 ASSEMBLY, ELECTRONIC POWER STEERING
    ASSEMBLY, ELECTRONIC POWER STEERING
  • 11
    8409-020 SCREW, CAP
    SCREW, CAP
  • 12
    0505-664 ARM, STEERING
    ARM, STEERING
  • 13
    8408-816 SCREW, CAP
    SCREW, CAP
  • 14
    0602-233 FLANGE, BEARING
    FLANGE, BEARING
  • 15
    0405-052 BEARING W/INVERTED OIL SEAL
    BEARING W/INVERTED OIL SEAL
  • 16
    0505-872 TIE ROD - ASSEMBLY (INC. 17-21)
    TIE ROD - ASSEMBLY (INC. 17-21)
  • 17
    0505-875 END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 18)
    END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 18)
  • 18
    0423-013 ...NUT - LEFT
    ...NUT - LEFT
  • 19
    0405-281 TIE ROD
    TIE ROD
  • 20
    0505-874 END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 21)
    END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 21)
  • 21
    8420-002 ...NUT
    ...NUT
  • 22
    0423-157 NUT
    NUT
  • 23
    0623-175 PIN, COTTER
    PIN, COTTER
  • 24
    0505-770 LOCK, STEERING - ASSEMBLY (INC. 25-31)
    LOCK, STEERING - ASSEMBLY (INC. 25-31)
  • 25
    0505-710 ...MOUNT, STEERING LOCK
    ...MOUNT, STEERING LOCK
  • 26
    3306-182 ...LOCK, STEERING
    ...LOCK, STEERING
  • 27
    1423-059 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 28
    0405-409 ...MOUNT, STEERING LOCK
    ...MOUNT, STEERING LOCK
  • 29
    8050-247 ...WASHER
    ...WASHER
  • 30
    1423-112 ...SCREW, CAP
    ...SCREW, CAP
  • 31
    8424-802 ...NUT
    ...NUT
  • 32
    2441-251 TOOL, ANTI-TAMPER (OPTIONAL)
    TOOL, ANTI-TAMPER (OPTIONAL)
