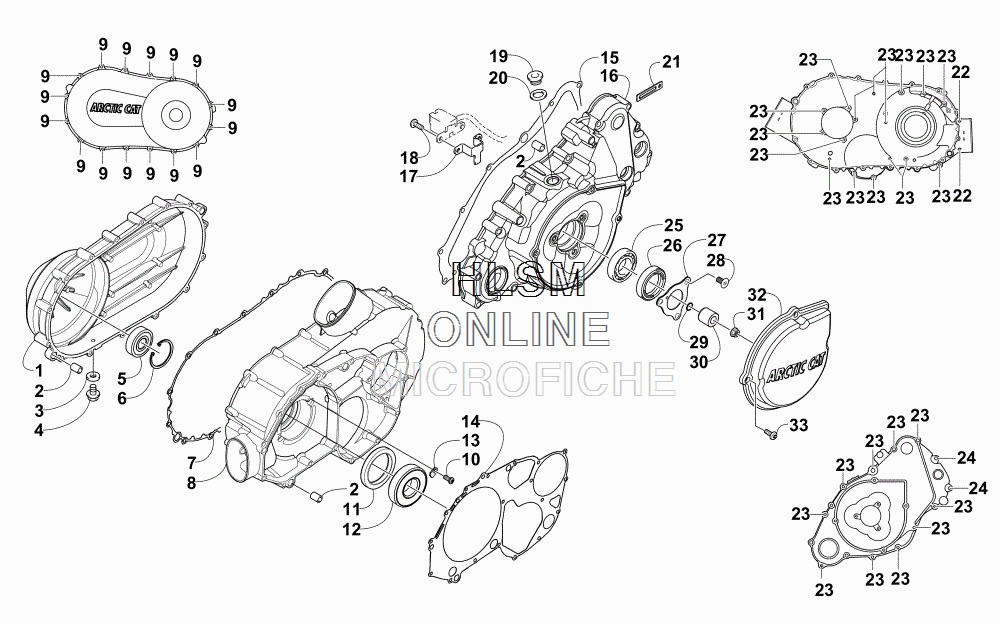

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat TRV 700 XT EFT GREEN [A2015TGT1PETX] - 2015 года выпуска`
-
№АртикулНазвание
-
10806-139 COVER, V-BELTCOVER, V-BELT
-
20829-002 PIN, DOWELPIN, DOWEL
-
30830-013 WASHER, CRUSHWASHER, CRUSH
-
48408-812 SCREW, CAPSCREW, CAP
-
50832-060 BEARINGBEARING
-
60831-078 RING, RETAININGRING, RETAINING
-
70830-220 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
80806-134 COVER, CLUTCHCOVER, CLUTCH
-
98468-645 SCREW, MACHINESCREW, MACHINE
-
100826-029 SCREW, MACHINESCREW, MACHINE
-
110830-188 SEALSEAL
-
120832-009 BEARINGBEARING
-
130822-010 RETAINER, BEARINGRETAINER, BEARING
-
140830-116 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
150830-128 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
160806-170 COVER, MAGNETOCOVER, MAGNETO
-
170802-071 CLAMP, ROUTINGCLAMP, ROUTING
-
188470-510 SCREW, MACHINESCREW, MACHINE
-
190826-155 PLUGPLUG
-
200830-015 WASHER, CRUSHWASHER, CRUSH
-
211623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
228468-675 SCREW, MACHINESCREW, MACHINE
-
238468-640 SCREW, MACHINESCREW, MACHINE
-
248468-625 SCREW, MACHINESCREW, MACHINE
-
251602-981 BEARINGBEARING
-
260830-226 SEALSEAL
-
270805-008 RETAINER, SEALRETAINER, SEAL
-
280826-031 SCREW, MACHINESCREW, MACHINE
-
290830-108 O-RINGO-RING
-
300820-061 BUSHINGBUSHING
-
310827-008 NUTNUT
-
320820-062 COVER, MAGNETOCOVER, MAGNETO
-
338468-616 SCREW, MACHINESCREW, MACHINE
