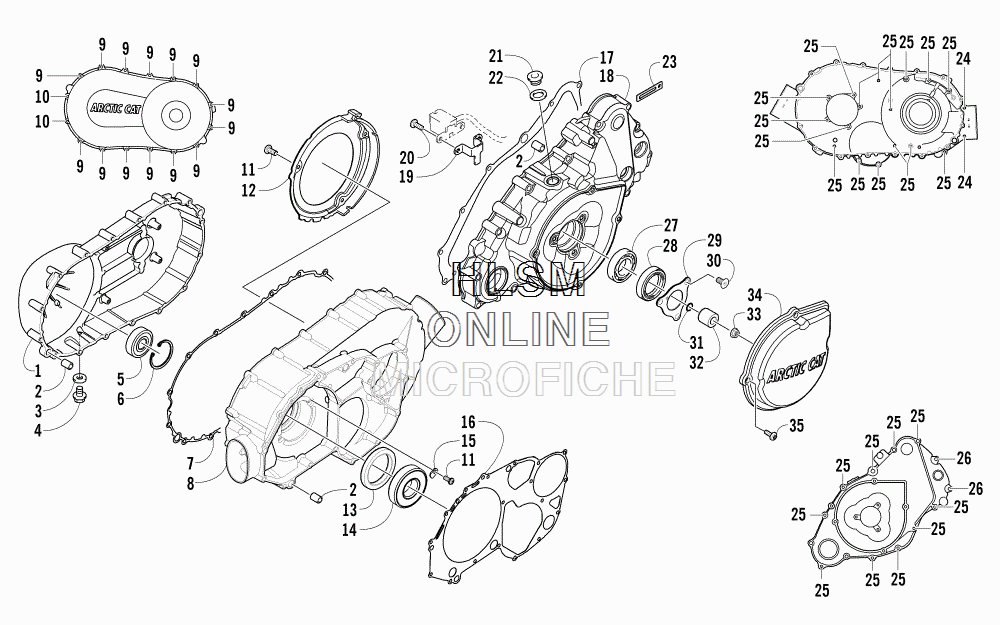

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat TRV 700 LTD ORANGE [A2015TCT1PUSU] - 2015 года выпуска`
-
№АртикулНазвание
-
10806-089 COVER, V-BELTCOVER, V-BELT
-
20829-002 PIN, DOWELPIN, DOWEL
-
30830-013 WASHER, CRUSHWASHER, CRUSH
-
48408-812 SCREW, CAPSCREW, CAP
-
50832-060 BEARINGBEARING
-
60831-078 RING, RETAININGRING, RETAINING
-
70830-174 GASKET, CVT COVERGASKET, CVT COVER
-
80806-086 COVER, CLUTCHCOVER, CLUTCH
-
98468-645 SCREW, MACHINESCREW, MACHINE
-
108468-655 SCREW, MACHINESCREW, MACHINE
-
110826-029 SCREW, MACHINESCREW, MACHINE
-
120806-048 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
130830-244 SEALSEAL
-
140832-009 BEARINGBEARING
-
150822-010 RETAINER, BEARINGRETAINER, BEARING
-
160830-116 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
170830-128 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
180806-127 KIT, COVER - MAGNETO (INC. 19)KIT, COVER - MAGNETO (INC. 19)
-
190802-071 ...CLAMP, ROUTING...CLAMP, ROUTING
-
208470-510 SCREW, MACHINESCREW, MACHINE
-
210826-155 PLUGPLUG
-
220830-015 WASHER, CRUSHWASHER, CRUSH
-
231623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
248468-675 SCREW, MACHINESCREW, MACHINE
-
258468-640 SCREW, MACHINESCREW, MACHINE
-
268468-625 SCREW, MACHINESCREW, MACHINE
-
271602-981 BEARINGBEARING
-
280830-226 SEAL, OILSEAL, OIL
-
290805-008 RETAINER, SEALRETAINER, SEAL
-
300826-031 SCREW, MACHINESCREW, MACHINE
-
310830-108 O-RINGO-RING
-
320820-061 BUSHINGBUSHING
-
330827-008 NUTNUT
-
340820-062 COVER, MAGNETOCOVER, MAGNETO
-
358468-616 SCREW, MACHINESCREW, MACHINE
