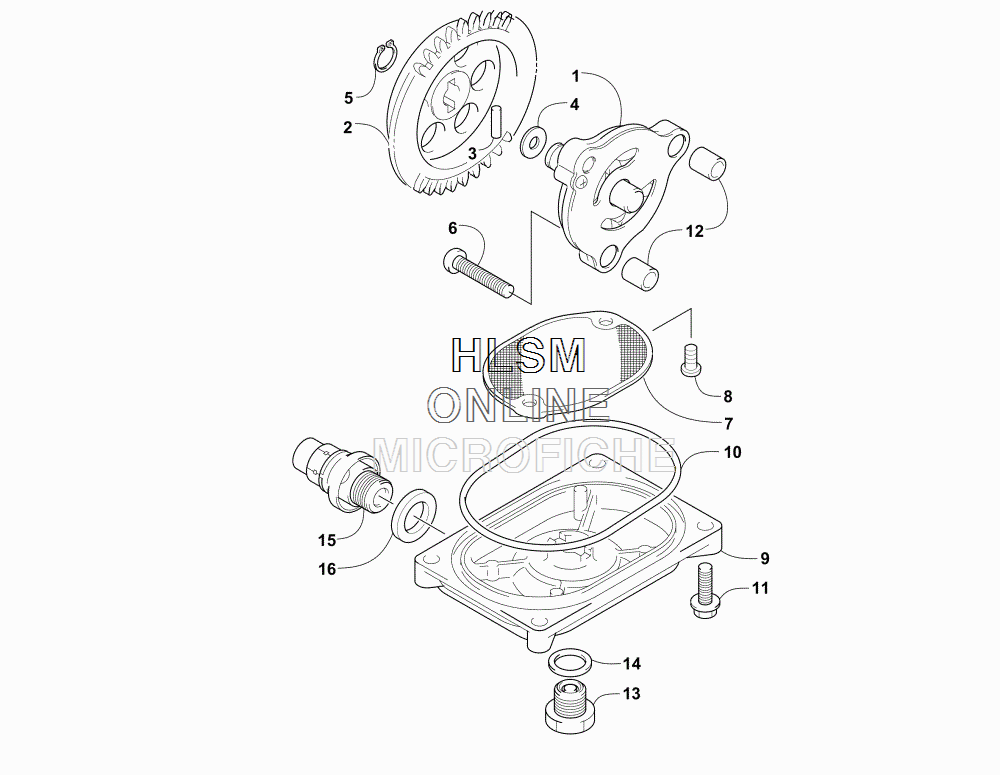

OIL PUMP AND STRAINER ASSEMBLY для Arctic Cat TRV 500 LIME [A2015TBK4CUSZ] - 2015 года выпуска
-
№АртикулНазвание
-
10812-069 PUMP, OILPUMP, OIL
-
20812-010 GEAR, DRIVENGEAR, DRIVEN
-
30812-036 PIN, DRIVEN GEARPIN, DRIVEN GEAR
-
40828-007 WASHERWASHER
-
53004-146 RING, RETAININGRING, RETAINING
-
60826-131 SCREW, MACHINESCREW, MACHINE
-
70812-049 STRAINER, OILSTRAINER, OIL
-
83313-722 SCREW, CAPSCREW, CAP
-
90812-038 CAP, OIL STRAINERCAP, OIL STRAINER
-
100830-159 O-RINGO-RING
-
113303-384 BOLT, FLANGEBOLT, FLANGE
-
120829-033 PIN, DOWELPIN, DOWEL
-
130812-065 PLUG, DRAINPLUG, DRAIN
-
140830-143 WASHER, COMPRESSION - 14 X 19 X 1.35WASHER, COMPRESSION - 14 X 19 X 1.35
-
150812-067 VALVE, OIL-RELIEF - ASSEMBLY (INC. 16)VALVE, OIL-RELIEF - ASSEMBLY (INC. 16)
-
160830-181 ...O-RING...O-RING
