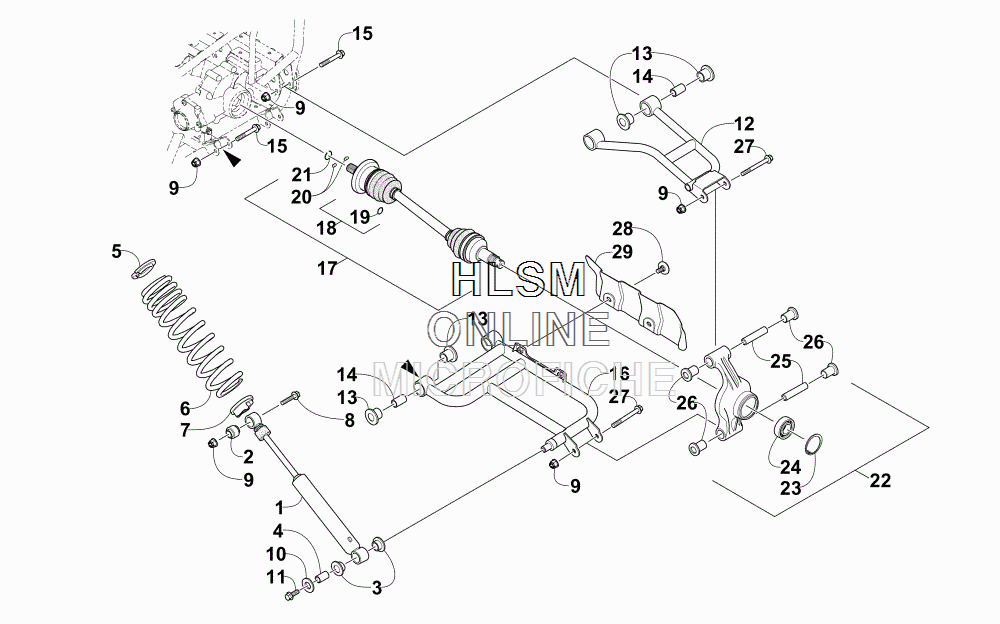

REAR SUSPENSION ASSEMBLY для Arctic Cat TRV 500 LIME [A2015TBK4COSZ] (INTERNATIONAL) - 2015 года выпуска`
-
№АртикулНазвание
-
10404-158 SHOCK ABSORBER (INC. 2-4)SHOCK ABSORBER (INC. 2-4)
-
20403-182 ...BUSHING...BUSHING
-
30603-955 ...BUSHING...BUSHING
-
41603-575 ...SLEEVE, EYELET...SLEEVE, EYELET
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
60504-542 SPRING, SUSPENSION - BLACKSPRING, SUSPENSION - BLACK
-
70404-496 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
88409-050 SCREW, CAPSCREW, CAP
-
90423-744 NUT, LOCKNUT, LOCK
-
100423-087 WASHERWASHER
-
118408-820 SCREW, CAPSCREW, CAP
-
120504-582 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 13-14)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 13-14)
-
120504-583 A-ARM, REAR - UPPER LEFT - BLACK (INC. 13-14)A-ARM, REAR - UPPER LEFT - BLACK (INC. 13-14)
-
130403-409 ...BUSHING...BUSHING
-
140403-438 ...COLLAR...COLLAR
-
158409-075 SCREW, CAPSCREW, CAP
-
160504-572 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 13-14)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 13-14)
-
160504-573 A-ARM, REAR - LOWER LEFT - BLACK (INC. 13-14)A-ARM, REAR - LOWER LEFT - BLACK (INC. 13-14)
-
172502-353 KIT, HALFSHAFT (INC. 18-21)KIT, HALFSHAFT (INC. 18-21)
-
182436-111 ...REPAIR KIT, BOOT (INC. 19)...REPAIR KIT, BOOT (INC. 19)
-
191441-988 ......CLIP, RETAINING......CLIP, RETAINING
-
201402-884 ...PIN, DETENT...PIN, DETENT
-
211402-890 ...CLIP, RETAINING...CLIP, RETAINING
-
220504-548 KNUCKLE, REAR - ASSEMBLY (RIGHT) (INC. 23-26)KNUCKLE, REAR - ASSEMBLY (RIGHT) (INC. 23-26)
-
220504-549 KNUCKLE, REAR - ASSEMBLY (LEFT) (INC. 23-26)KNUCKLE, REAR - ASSEMBLY (LEFT) (INC. 23-26)
-
230423-423 ...RING, RETAINING...RING, RETAINING
-
241402-809 ...BEARING...BEARING
-
250403-437 ...COLLAR, SUSPENSION BUSHING...COLLAR, SUSPENSION BUSHING
-
260403-283 ...BUSHING, SUSPENSION...BUSHING, SUSPENSION
-
278409-000 SCREW, CAPSCREW, CAP
-
280423-545 SCREW, SHOULDERSCREW, SHOULDER
-
291406-068 GUARD, BOOT - RIGHTGUARD, BOOT - RIGHT
-
291406-069 GUARD, BOOT - LEFTGUARD, BOOT - LEFT
