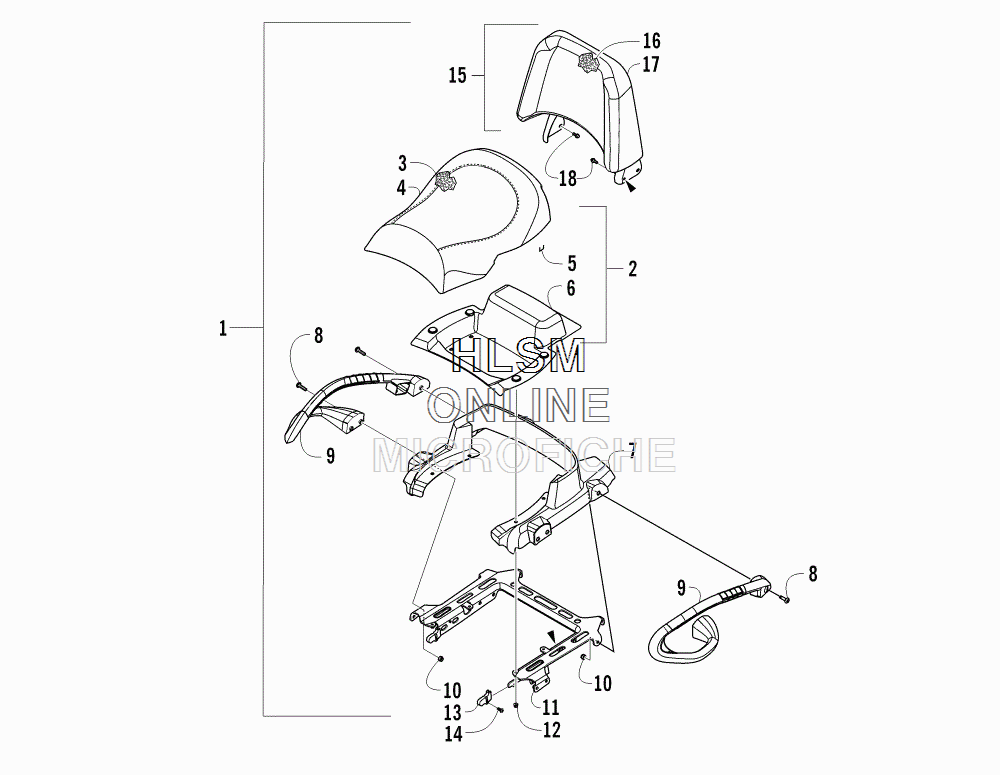

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat TRV 1000 XT ORANGE [A2015TGW1PUSU] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2516-896 SEAT, PASSENGER - ASSEMBLY (INC. 2-14)
    SEAT, PASSENGER - ASSEMBLY (INC. 2-14)
  • 2
    2506-064 ...SEAT, PASSENGER - SUB-ASSEMBLY (INC. 3-6)
    ...SEAT, PASSENGER - SUB-ASSEMBLY (INC. 3-6)
  • 3
    1506-816 ......FOAM, SEAT - PASSENGER
    ......FOAM, SEAT - PASSENGER
  • 4
    1506-815 ......COVER, SEAT - PASSENGER
    ......COVER, SEAT - PASSENGER
  • 5
    0624-263 ......STAPLE
    ......STAPLE
  • 6
    2406-110 ......BASE, SEAT - INNER
    ......BASE, SEAT - INNER
  • 7
    2406-044 ...BASE, SEAT - PASSENGER
    ...BASE, SEAT - PASSENGER
  • 8
    8468-830 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    2406-834 ...HANDHOLD, PASSENGER - RIGHT
    ...HANDHOLD, PASSENGER - RIGHT
  • 9
    2406-835 ...HANDHOLD, PASSENGER - LEFT
    ...HANDHOLD, PASSENGER - LEFT
  • 10
    8432-802 ...NUT, LOCK
    ...NUT, LOCK
  • 11
    2516-040 ...BRACKET, SEAT SUPPORT - ASSEMBLY
    ...BRACKET, SEAT SUPPORT - ASSEMBLY
  • 12
    8427-602 ...NUT, LOCK
    ...NUT, LOCK
  • 13
    2406-895 ...END CAP, SEAT SUPPORT
    ...END CAP, SEAT SUPPORT
  • 14
    0423-538 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 15
    2516-020 BACKREST ASSEMBLY (INC. 16-17)
    BACKREST ASSEMBLY (INC. 16-17)
  • 16
    2516-018 ...FOAM, BACKREST
    ...FOAM, BACKREST
  • 17
    2516-141 ...COVER, BACKREST
    ...COVER, BACKREST
  • 18
    8408-816 SCREW, CAP
    SCREW, CAP
