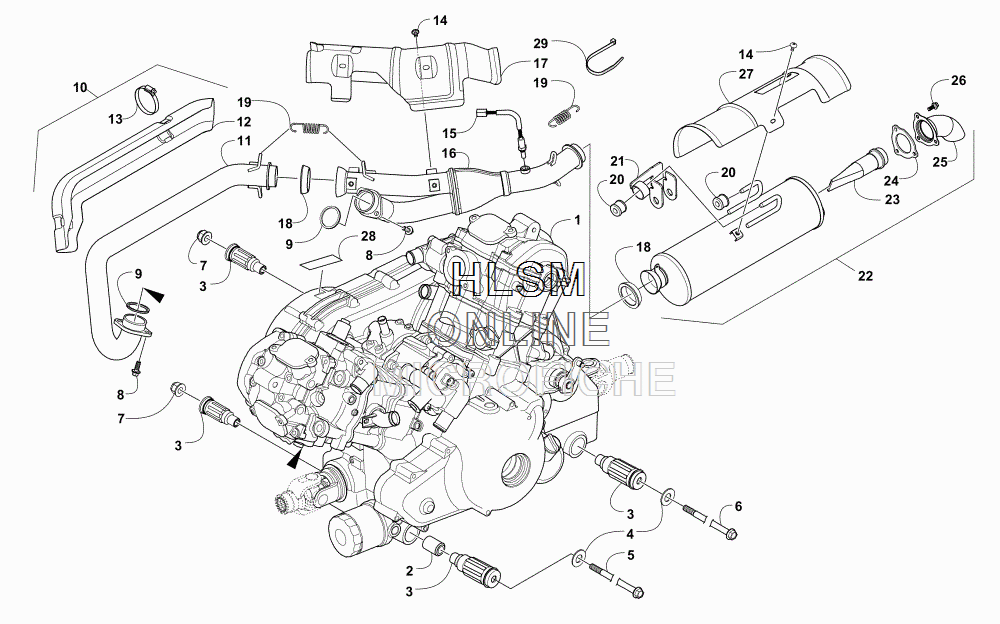

ENGINE AND EXHAUST для Arctic Cat TRV 1000 XT ORANGE [A2015TGW1POSU] (INTERNATIONAL) - 2015 года выпуска`
-
№АртикулНазвание
-
10800-163 ENGINE, A950T (INC. 2-3)ENGINE, A950T (INC. 2-3)
-
20801-128 ...SPACER, ENGINE MOUNT...SPACER, ENGINE MOUNT
-
30801-091 ...MOUNT, ENGINE...MOUNT, ENGINE
-
40423-426 WASHERWASHER
-
50423-734 SCREW, CAPSCREW, CAP
-
60423-451 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
88408-820 SCREW, CAPSCREW, CAP
-
90412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
100512-433 PIPE, EXHAUST - ASSEMBLY (INC. 11-13)PIPE, EXHAUST - ASSEMBLY (INC. 11-13)
-
110512-349 ...PIPE, EXHAUST...PIPE, EXHAUST
-
120412-400 ...SHIELD, EXHAUST PIPE...SHIELD, EXHAUST PIPE
-
130423-317 ...CLAMP...CLAMP
-
148477-610 SCREW, MACHINESCREW, MACHINE
-
150630-302 SENSOR, OXYGENSENSOR, OXYGEN
-
160512-690 PIPE, EXHAUST - REARPIPE, EXHAUST - REAR
-
170412-736 SHIELD, EXHAUST PIPE - REARSHIELD, EXHAUST PIPE - REAR
-
180412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
190612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
200412-577 BUSHINGBUSHING
-
211506-732 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
220512-651 MUFFLER - ASSEMBLY (INC. 23-26)MUFFLER - ASSEMBLY (INC. 23-26)
-
230512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
240412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
250512-733 ...PIPE, TAIL - BLACK...PIPE, TAIL - BLACK
-
268408-616 ...SCREW, CAP...SCREW, CAP
-
270412-373 COVER, MUFFLERCOVER, MUFFLER
-
280411-426 DECAL, WARNING - CLUTCHDECAL, WARNING - CLUTCH
-
290123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
