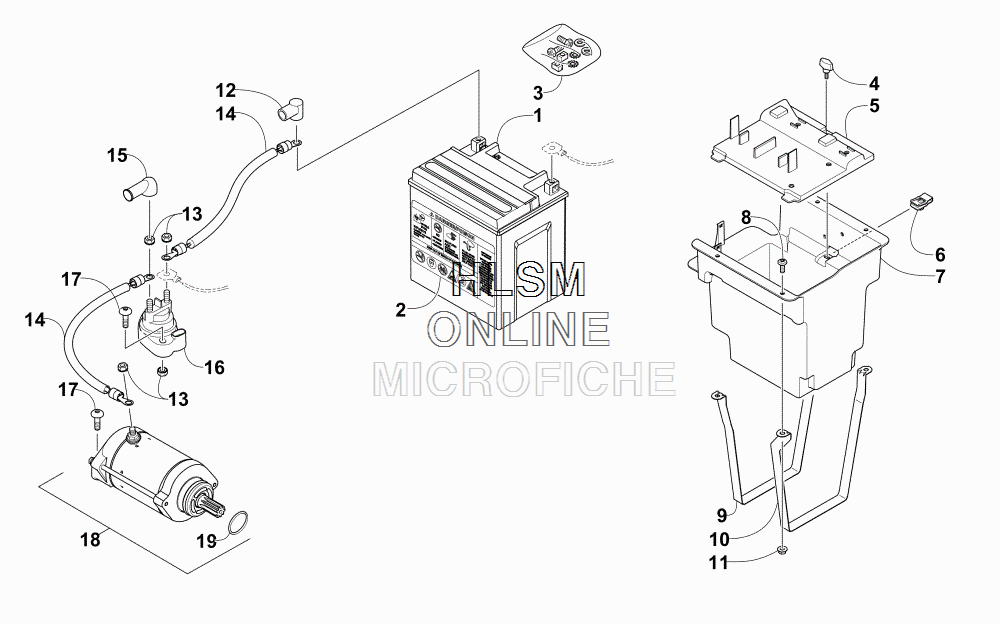

BATTERY AND STARTER MOTOR ASSEMBLY для Arctic Cat PROWLER 700 XT CAMO [U2015R3T1PUSH] - 2015 года выпуска`
-
№АртикулНазвание
-
10445-115 BATTERY (INC. 2-3)BATTERY (INC. 2-3)
-
20645-430 ...DECAL, WARNING...DECAL, WARNING
-
30445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
41441-624 SCREW, THUMBSCREW, THUMB
-
54406-090 COVER, BATTERY BOXCOVER, BATTERY BOX
-
60423-577 CLIP, U-NUTCLIP, U-NUT
-
72406-914 BOX, BATTERYBOX, BATTERY
-
88476-616 SCREW, MACHINESCREW, MACHINE
-
90470-854 HOLD-DOWN, BATTERY BOX - RIGHTHOLD-DOWN, BATTERY BOX - RIGHT
-
100470-855 HOLD-DOWN, BATTERY BOX - LEFTHOLD-DOWN, BATTERY BOX - LEFT
-
118424-602 NUT, LOCKNUT, LOCK
-
120645-019 BOOT, TERMINALBOOT, TERMINAL
-
130623-038 NUT W/WASHERNUT W/WASHER
-
140445-099 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
150645-327 BOOT, TERMINAL - SOLENOIDBOOT, TERMINAL - SOLENOID
-
160445-058 SOLENOID,STARTER RELAYSOLENOID,STARTER RELAY
-
178476-625 SCREW, MACHINESCREW, MACHINE
-
180825-024 MOTOR, STARTER (INC. 19)MOTOR, STARTER (INC. 19)
-
190830-228 ...O-RING...O-RING
