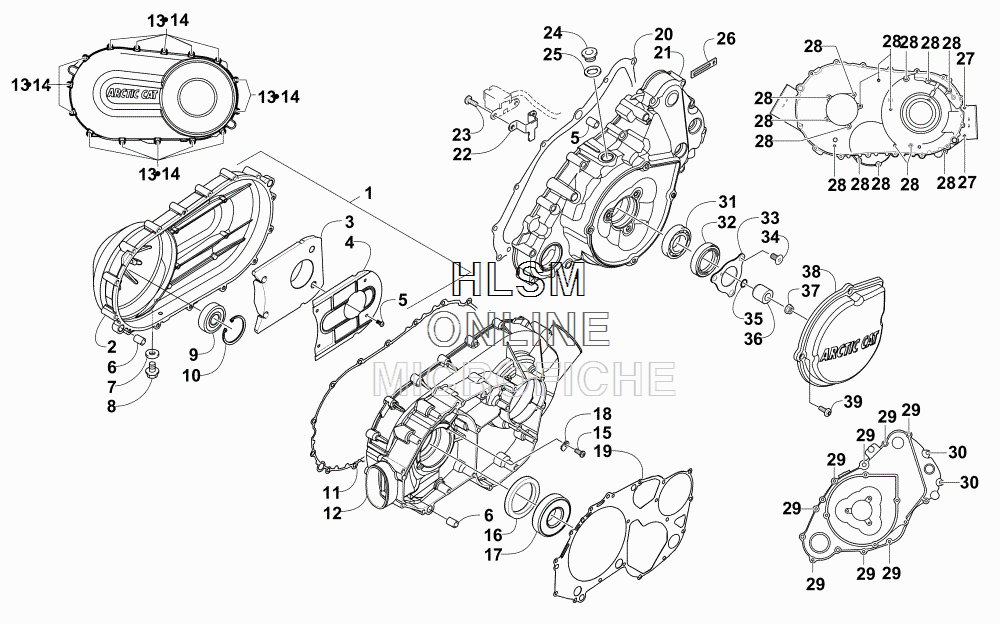

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat PROWLER 550 XT BLACK [U2015R2O4EUSP] - 2015 года выпуска`
-
№АртикулНазвание
-
10806-175 COVER, V-BELT - ASSEMBLY (INC 2-5)COVER, V-BELT - ASSEMBLY (INC 2-5)
-
20806-179 ...COVER, V-BELT - BLACK...COVER, V-BELT - BLACK
-
30806-177 ...DAMPENER, PAD...DAMPENER, PAD
-
40806-178 ...RETAINER, COVER DAMPENER...RETAINER, COVER DAMPENER
-
51423-293 ...SCREW, MACHINE...SCREW, MACHINE
-
60829-002 PIN, DOWELPIN, DOWEL
-
70830-013 WASHER, CRUSHWASHER, CRUSH
-
88408-812 SCREW, CAPSCREW, CAP
-
90832-060 BEARINGBEARING
-
100831-078 RING, RETAININGRING, RETAINING
-
110831-096 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
120806-180 COVER, CLUTCHCOVER, CLUTCH
-
130828-148 WASHERWASHER
-
140826-160 SCREW, MACHINESCREW, MACHINE
-
150826-029 SCREW, MACHINESCREW, MACHINE
-
160830-244 SEALSEAL
-
170832-009 BEARINGBEARING
-
180822-010 RETAINER, BEARINGRETAINER, BEARING
-
190831-097 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
200830-128 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
210806-170 COVER, MAGNETOCOVER, MAGNETO
-
220802-071 CLAMP, ROUTINGCLAMP, ROUTING
-
238470-510 SCREW, MACHINESCREW, MACHINE
-
240826-155 PLUGPLUG
-
250830-015 WASHER, CRUSHWASHER, CRUSH
-
261623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
278470-676 SCREW, MACHINESCREW, MACHINE
-
288470-641 SCREW, MACHINESCREW, MACHINE
-
298468-640 SCREW, MACHINESCREW, MACHINE
-
308468-625 SCREW, MACHINESCREW, MACHINE
-
311602-981 BEARINGBEARING
-
320830-158 SEALSEAL
-
330805-008 RETAINER, SEALRETAINER, SEAL
-
340826-031 SCREW, MACHINESCREW, MACHINE
-
350830-108 O-RINGO-RING
-
360820-061 BUSHINGBUSHING
-
370827-008 NUTNUT
-
380820-062 COVER, MAGNETOCOVER, MAGNETO
-
398468-616 SCREW, MACHINESCREW, MACHINE
