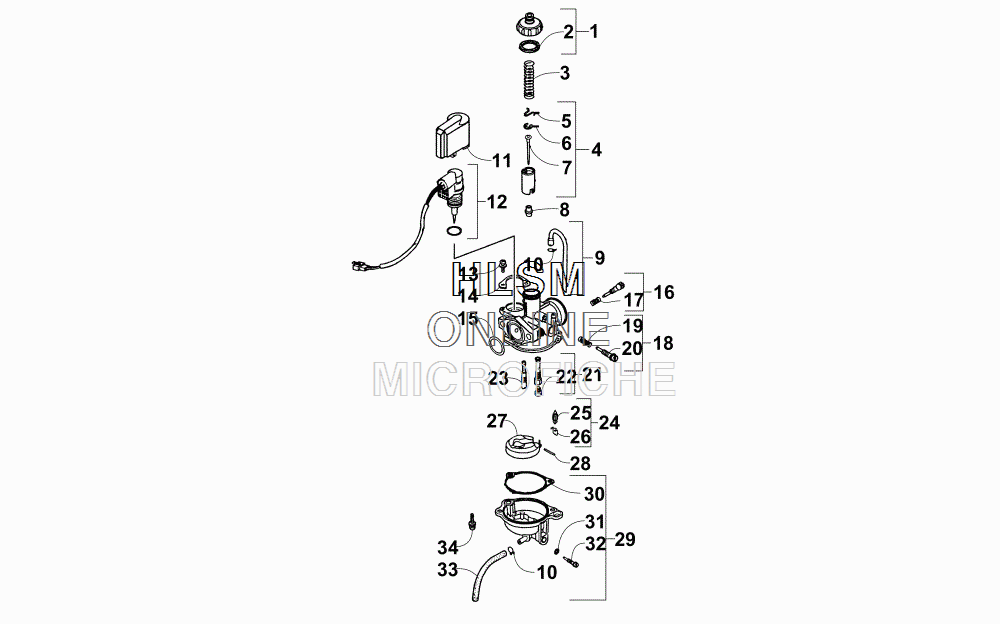

CARBURETOR ASSEMBLY для Arctic Cat 90 2X4 UTILITY RED [A2015KUB2BUSR] - 2015 года выпуска`
-
№АртикулНазвание
-
-3306-829 CARBURETOR - ASSEMBLYCARBURETOR - ASSEMBLY
-
13304-462 SET, TOP (INC. 2)SET, TOP (INC. 2)
-
23304-463 ...GASKET...GASKET
-
33304-464 SPRING, COMPRESSIONSPRING, COMPRESSION
-
43306-905 VALVE, THROTTLE - ASSEMBLY (INC. 5-7)VALVE, THROTTLE - ASSEMBLY (INC. 5-7)
-
53304-465 ...CLIP, SPRING...CLIP, SPRING
-
63304-466 ...E-RING...E-RING
-
73305-592 ...NEEDLE, JET...NEEDLE, JET
-
83304-468 JET, NEEDLEJET, NEEDLE
-
93304-472 PIPE, RUBBER - ASSEMBLY (INC. ONE NO. 10)PIPE, RUBBER - ASSEMBLY (INC. ONE NO. 10)
-
105507-161 ...CLAMP, HOSE...CLAMP, HOSE
-
113304-469 COVERCOVER
-
123304-470 AUTOMATIC BYPASS/STARTER ASSEMBLYAUTOMATIC BYPASS/STARTER ASSEMBLY
-
135507-117 SCREWSCREW
-
143304-471 PLATE, RETAININGPLATE, RETAINING
-
153304-488 O-RINGO-RING
-
163305-446 SCREW, STOP - ASSEMBLY (INC. 17)SCREW, STOP - ASSEMBLY (INC. 17)
-
173305-444 ...SPRING...SPRING
-
183304-477 SCREW, STOP - ASSEMBLY (INC. 19-20)SCREW, STOP - ASSEMBLY (INC. 19-20)
-
193304-232 ...SPRING...SPRING
-
203304-478 ...SCREW, STOP...SCREW, STOP
-
213305-573 HOLDER, JET - NEEDLE - ASSEMBLY (INC. 22)HOLDER, JET - NEEDLE - ASSEMBLY (INC. 22)
-
223304-482 ...JET, MAIN - 80...JET, MAIN - 80
-
225507-170 JET, MAIN - 75 OPTIONALJET, MAIN - 75 OPTIONAL
-
225507-220 JET, MAIN - 78 OPTIONALJET, MAIN - 78 OPTIONAL
-
233304-489 JET, SLOWJET, SLOW
-
243304-490 VALVE, FLOAT - ASSEMBLY (INC. 25 AND ONE NO. 26)VALVE, FLOAT - ASSEMBLY (INC. 25 AND ONE NO. 26)
-
253306-752 ...VALVE, FLOAT - SET...VALVE, FLOAT - SET
-
263304-484 ...CLIP...CLIP
-
273304-491 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
283304-485 PIN, FLOATPIN, FLOAT
-
293304-486 CHAMBER, FLOAT - W/GASKET (INC. ONE NO. 10 AND 30-33)CHAMBER, FLOAT - W/GASKET (INC. ONE NO. 10 AND 30-33)
-
303305-569 ...GASKET...GASKET
-
313304-239 ...O-RING...O-RING
-
323304-243 ...SCREW, DRAIN...SCREW, DRAIN
-
333305-248 ...TUBE, DRAIN...TUBE, DRAIN
-
343303-320 SCREW, MACHINESCREW, MACHINE
