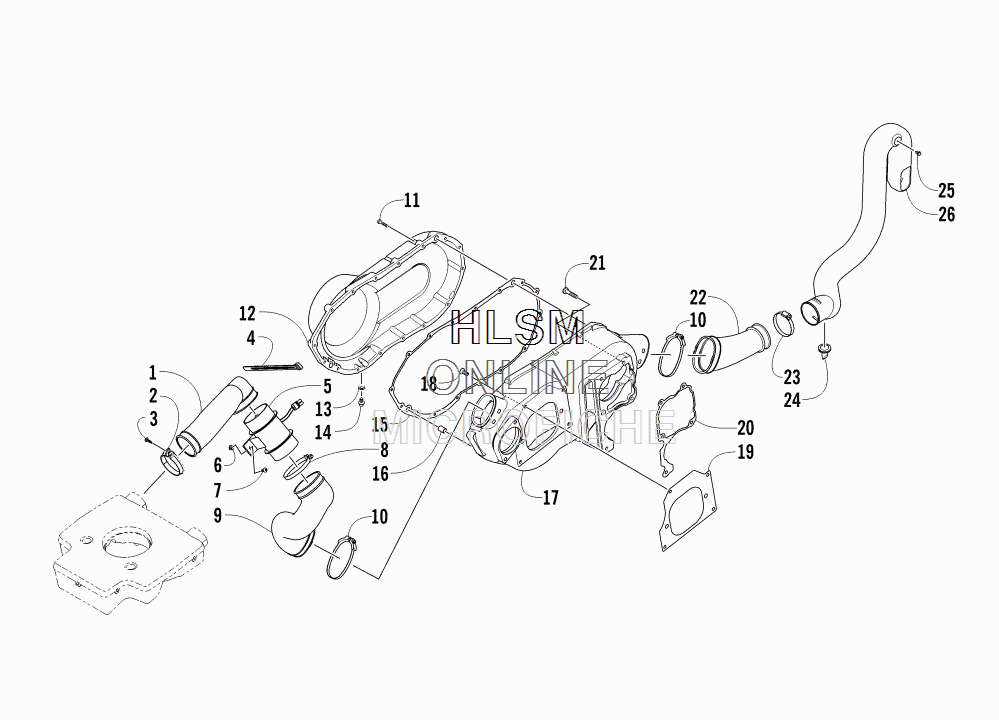

CASE/BELT COOLING ASSEMBLY для Arctic Cat 700 DIESEL GREEN [A2015TBT4DUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-132 DUCT, BELT COOLING - FRONT
    DUCT, BELT COOLING - FRONT
  • 2
    0423-551 CLAMP
    CLAMP
  • 3
    0423-342 SCREW, SELF-TAPPING - .1875 X .75
    SCREW, SELF-TAPPING - .1875 X .75
  • 4
    0623-316 TIE, CABLE - 14 IN.
    TIE, CABLE - 14 IN.
  • 5
    0413-141 FAN, BELT COOLING
    FAN, BELT COOLING
  • 6
    8424-502 NUT
    NUT
  • 7
    8475-512 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    0423-057 CLAMP
    CLAMP
  • 9
    0413-133 BOOT, BELT COOLING - INLET
    BOOT, BELT COOLING - INLET
  • 10
    0423-730 CLAMP
    CLAMP
  • 11
    8468-630 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    1502-157 COVER, CLUTCH
    COVER, CLUTCH
  • 13
    0830-013 WASHER, CRUSH
    WASHER, CRUSH
  • 14
    8408-812 SCREW, CAP
    SCREW, CAP
  • 15
    1402-528 GASKET, V-BELT COVER
    GASKET, V-BELT COVER
  • 16
    0829-002 PIN, DOWEL
    PIN, DOWEL
  • 17
    1402-527 COVER, CLUTCH
    COVER, CLUTCH
  • 18
    8472-820 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    1402-524 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 20
    1402-526 GASKET, GEARCASE
    GASKET, GEARCASE
  • 21
    0423-118 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    0413-134 BOOT, BELT COOLING - OUTLET
    BOOT, BELT COOLING - OUTLET
  • 23
    0423-019 CLAMP
    CLAMP
  • 24
    0470-442 VALVE, AIR CLEANER
    VALVE, AIR CLEANER
  • 25
    0623-301 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    0413-106 DUCT, BELT COOLING - REAR
    DUCT, BELT COOLING - REAR
