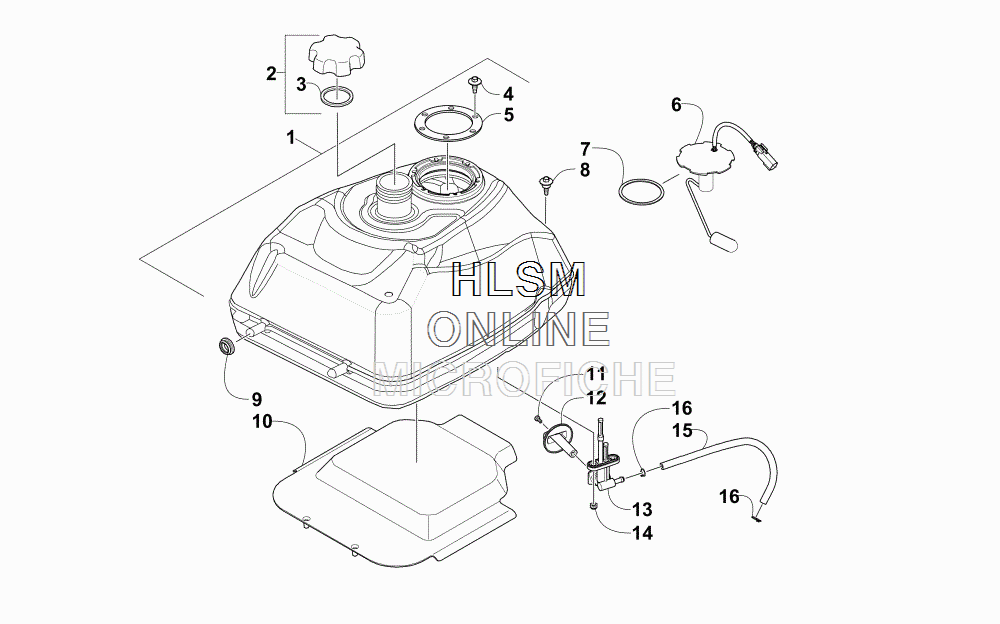

GAS TANK ASSEMBLY для Arctic Cat 400 4X4 EFT RED [A2015IRG4BETR] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-241 TANK, GAS - ASSEMBLY
    TANK, GAS - ASSEMBLY
  • 2
    3306-297 CAP, GAS TANK (INC. 3)
    CAP, GAS TANK (INC. 3)
  • 3
    3306-298 ...GASKET, GAS TANK CAP
    ...GASKET, GAS TANK CAP
  • 4
    3306-300 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 5
    3306-299 PLATE, RETAINING
    PLATE, RETAINING
  • 6
    3313-852 SENSOR, FUEL LEVEL
    SENSOR, FUEL LEVEL
  • 7
    3313-845 SEAL
    SEAL
  • 8
    0423-732 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    0423-460 GROMMET
    GROMMET
  • 10
    3313-833 SHIELD, HEAT
    SHIELD, HEAT
  • 11
    3307-118 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    3313-287 KNOB, GAS TANK VALVE
    KNOB, GAS TANK VALVE
  • 13
    3306-897 VALVE, GAS TANK
    VALVE, GAS TANK
  • 14
    3304-431 NUT, LOCK
    NUT, LOCK
  • 15
    3313-685 HOSE, GASLINE (INC. 16)
    HOSE, GASLINE (INC. 16)
  • 16
    3313-684 ...CLAMP, HOSE
    ...CLAMP, HOSE
