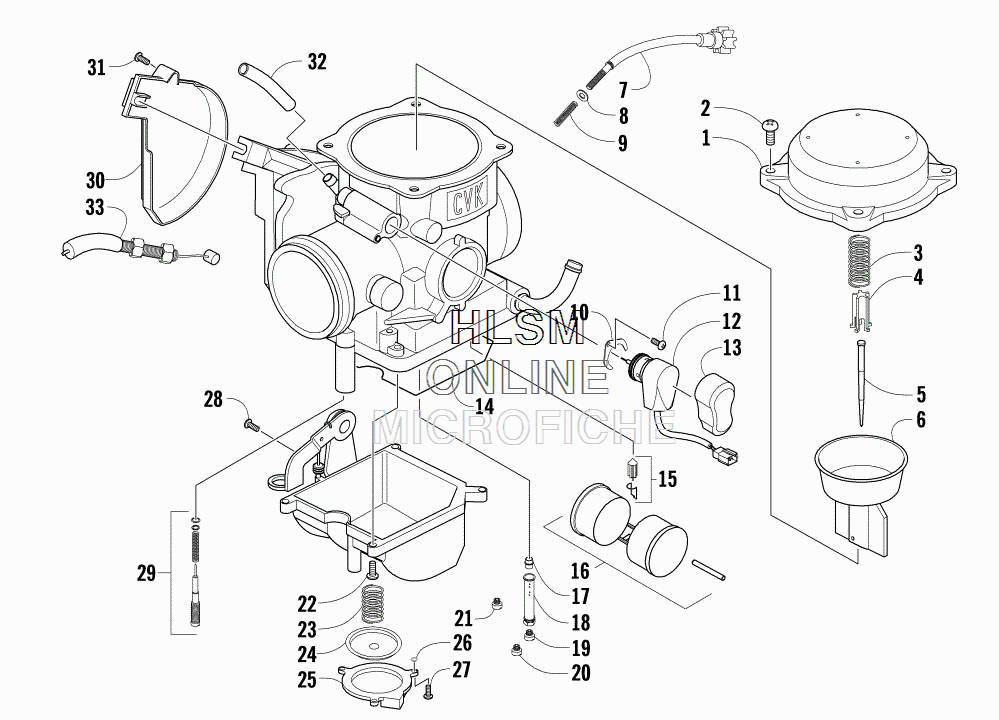

CARBURETOR для Arctic Cat 400 4X4 EFT GREEN [A2015IRG4BETG] - 2015 года выпуска`
-
№АртикулНазвание
-
-0470-856 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, MACHINESCREW, MACHINE
-
35507-066 SPRINGSPRING
-
45507-005 SEAT, SPRINGSEAT, SPRING
-
55507-110 JET NEEDLEJET NEEDLE
-
65507-004 PISTON, VACUUMPISTON, VACUUM
-
75507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
85507-028 WASHERWASHER
-
95507-029 SPRINGSPRING
-
105507-115 PLATEPLATE
-
115507-117 SCREW, MACHINESCREW, MACHINE
-
125507-180 CHOKE, ELECTRICCHOKE, ELECTRIC
-
135507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
145507-067 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
155507-107 VALVE, FLOAT - SETVALVE, FLOAT - SET
-
165507-039 FLOAT SETFLOAT SET
-
175507-007 NEEDLE JETNEEDLE JET
-
185507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
195507-125 MAIN JET - 120MAIN JET - 120
-
205507-097 STARTER JET - 75STARTER JET - 75
-
215507-246 JET, SLOWJET, SLOW
-
225507-017 SCREW, MACHINESCREW, MACHINE
-
235507-032 SPRINGSPRING
-
245507-197 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
255507-198 HOUSING, PUMPHOUSING, PUMP
-
265507-034 U-RINGU-RING
-
275507-035 SCREW, MACHINESCREW, MACHINE
-
285507-050 SCREW, DRAINSCREW, DRAIN
-
295507-111 SCREW, PILOT - SETSCREW, PILOT - SET
-
305507-036 COVERCOVER
-
315507-037 SCREW, MACHINESCREW, MACHINE
-
323313-476 HOSE, VENTHOSE, VENT
-
333306-275 CABLE, THROTTLECABLE, THROTTLE
