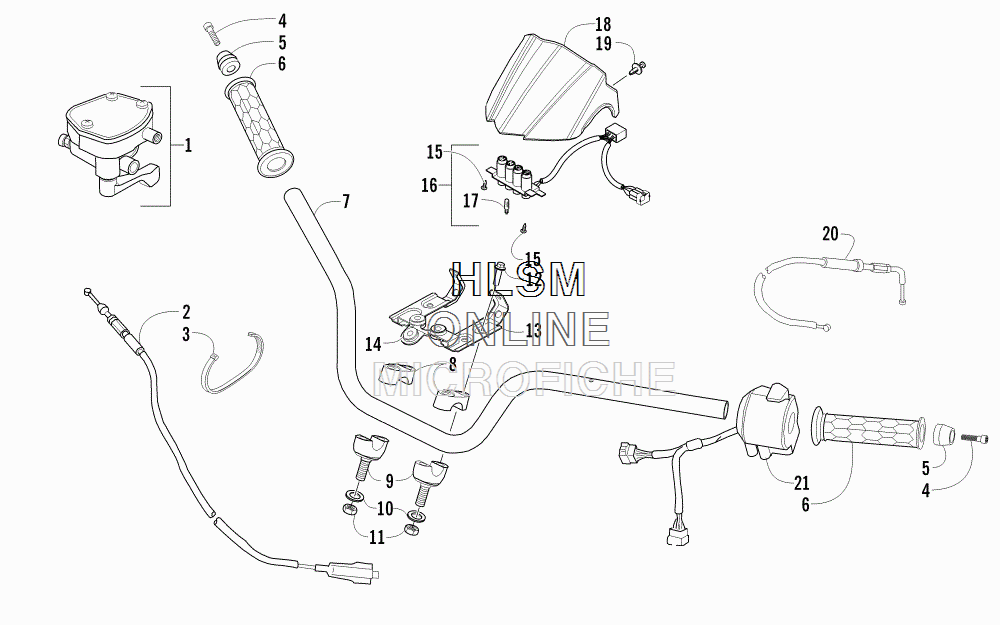

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BUSZ] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-953 CASE, THROTTLE - ASSEMBLY
    CASE, THROTTLE - ASSEMBLY
  • 2
    3305-414 CABLE, THROTTLE
    CABLE, THROTTLE
  • 3
    3303-839 TIE, CABLE
    TIE, CABLE
  • 4
    3304-016 SCREW, CAP
    SCREW, CAP
  • 5
    3305-541 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 6
    3305-905 GRIP, HANDLE
    GRIP, HANDLE
  • 7
    3304-367 HANDLEBAR
    HANDLEBAR
  • 8
    3303-954 CLAMP, HANDLEBAR - UPPER
    CLAMP, HANDLEBAR - UPPER
  • 9
    3303-955 CLAMP, HANDLEBAR - LOWER
    CLAMP, HANDLEBAR - LOWER
  • 10
    3304-136 WASHER
    WASHER
  • 11
    3306-189 NUT
    NUT
  • 12
    3305-400 SCREW, CAP
    SCREW, CAP
  • 13
    3304-368 BRACKET, INSTRUMENT POD
    BRACKET, INSTRUMENT POD
  • 14
    3303-239 GROMMET
    GROMMET
  • 15
    3304-650 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    3304-285 PILOT LAMP (INC. 17)
    PILOT LAMP (INC. 17)
  • 17
    3304-284 ...BULB
    ...BULB
  • 18
    3303-436 COVER, HANDLEBAR - BLACK
    COVER, HANDLEBAR - BLACK
  • 19
    3303-592 CLIP, RETAINING
    CLIP, RETAINING
  • 20
    3305-462 CABLE, CHOKE
    CABLE, CHOKE
  • 21
    3303-852 SWITCH ASSEMBLY, LEFT
    SWITCH ASSEMBLY, LEFT
