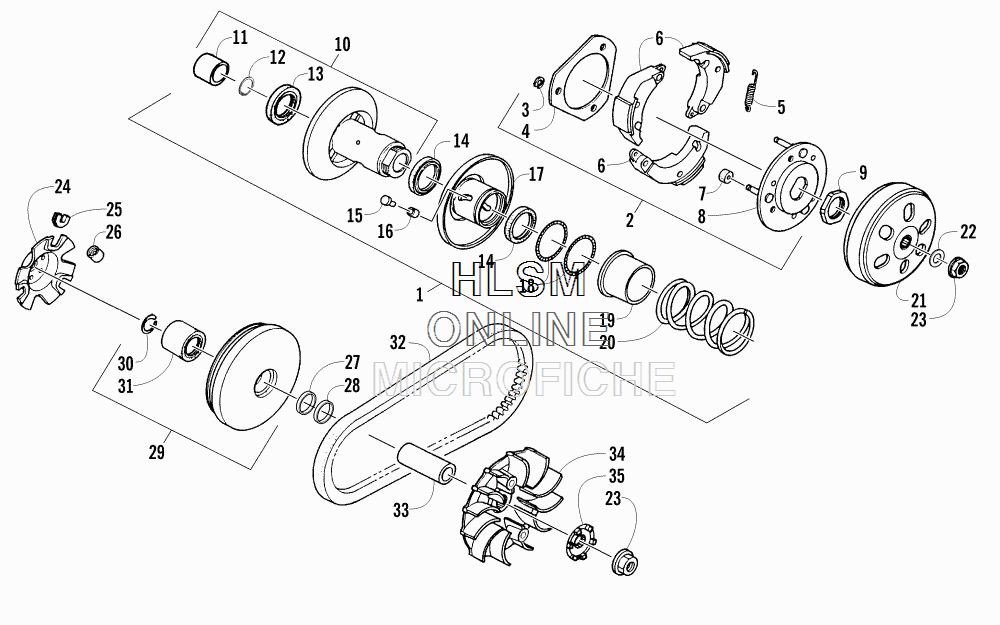

CLUTCH ASSEMBLY для Arctic Cat 150 UTILITY RED [A2015KYC2BUSR] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-986 PULLEY, DRIVEN - ASSEMBLY (INC. 2-20)
    PULLEY, DRIVEN - ASSEMBLY (INC. 2-20)
  • 2
    3304-981 ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
    ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
  • 3
    3304-054 ......RING, RETAINING
    ......RING, RETAINING
  • 4
    3306-805 ......PLATE, CLUTCH
    ......PLATE, CLUTCH
  • 5
    3304-984 ......SPRING
    ......SPRING
  • 6
    3304-985 ......WEIGHT, CLUTCH
    ......WEIGHT, CLUTCH
  • 7
    3303-780 ......ROLLER
    ......ROLLER
  • 8
    3304-982 ......PLATE, CLUTCH
    ......PLATE, CLUTCH
  • 9
    3304-994 ...NUT
    ...NUT
  • 10
    3304-988 ...FACE, DRIVEN - FIXED (INC. 11-13)
    ...FACE, DRIVEN - FIXED (INC. 11-13)
  • 11
    3304-996 ......BEARING
    ......BEARING
  • 12
    3304-149 ......RING, RETAINING
    ......RING, RETAINING
  • 13
    3304-070 ......BEARING
    ......BEARING
  • 14
    3304-997 ...SEAL
    ...SEAL
  • 15
    3304-990 ...PIN, GUIDE
    ...PIN, GUIDE
  • 16
    3303-787 ...GUIDE, ROLLER
    ...GUIDE, ROLLER
  • 17
    3304-989 ...FACE, DRIVEN - MOVABLE
    ...FACE, DRIVEN - MOVABLE
  • 18
    3304-619 ...O-RING
    ...O-RING
  • 19
    3304-992 ...SLEEVE, SPRING
    ...SLEEVE, SPRING
  • 20
    3304-991 ...SPRING
    ...SPRING
  • 21
    3304-973 CLUTCH, OUTER
    CLUTCH, OUTER
  • 22
    3304-995 WASHER, THRUST
    WASHER, THRUST
  • 23
    3303-334 NUT
    NUT
  • 24
    3304-979 PLATE, RAMP
    PLATE, RAMP
  • 25
    3304-980 SLIDE
    SLIDE
  • 26
    3304-978 ROLLER
    ROLLER
  • 27
    3305-744 COLLAR
    COLLAR
  • 28
    3305-745 COLLAR
    COLLAR
  • 29
    3304-976 FACE, DRIVE - MOVABLE (INC. 30-31)
    FACE, DRIVE - MOVABLE (INC. 30-31)
  • 30
    3304-160 ...RING, RETAINING
    ...RING, RETAINING
  • 31
    3304-977 ...SLEEVE
    ...SLEEVE
  • 32
    3304-987 BELT, DRIVE
    BELT, DRIVE
  • 33
    3304-975 SLEEVE
    SLEEVE
  • 34
    3304-974 FACE, DRIVE
    FACE, DRIVE
  • 35
    3304-993 RATCHET, KICK STARTER
    RATCHET, KICK STARTER
