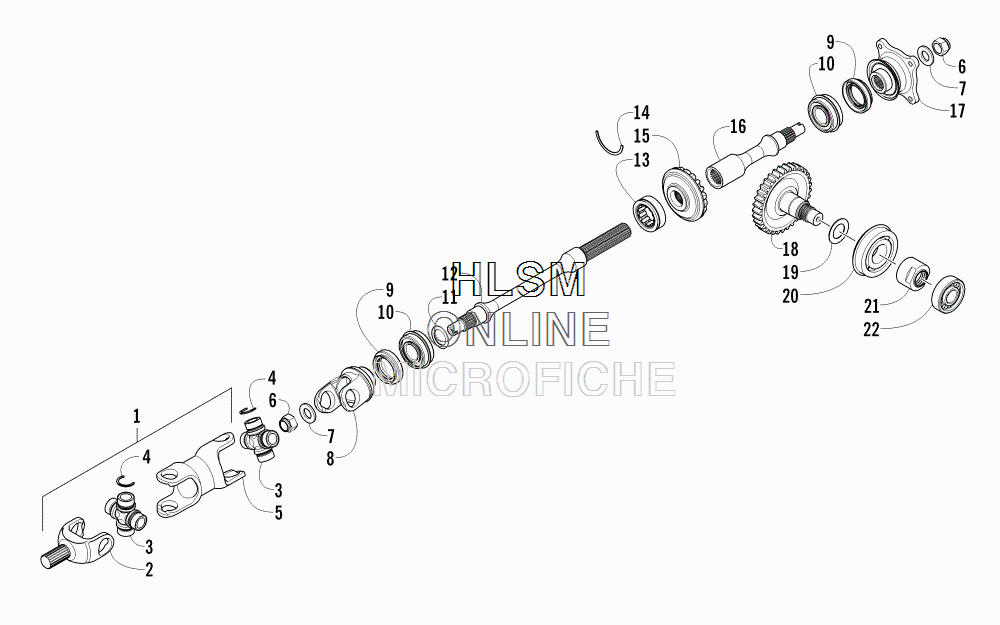

SECONDARY DRIVE ASSEMBLY для Arctic Cat 1000 XT RED [A2015AGW1PUSE] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1502-342 DRIVESHAFT, FRONT - ASSEMBLY (INC. 2, ONE NO. 3, FOUR NO. 4, AND 5)
    DRIVESHAFT, FRONT - ASSEMBLY (INC. 2, ONE NO. 3, FOUR NO. 4, AND 5)
  • 2
    1402-701 ...YOKE, SLIP
    ...YOKE, SLIP
  • 3
    0402-944 JOINT, UNIVERSAL (INC. 4)
    JOINT, UNIVERSAL (INC. 4)
  • 4
    0423-395 ...RING, RETAINING
    ...RING, RETAINING
  • 5
    1502-341 DRIVESHAFT, FRONT
    DRIVESHAFT, FRONT
  • 6
    0827-013 NUT
    NUT
  • 7
    0828-020 WASHER
    WASHER
  • 8
    1502-325 YOKE, PROPELLER SHAFT JOINT
    YOKE, PROPELLER SHAFT JOINT
  • 9
    0830-043 SEAL, OIL
    SEAL, OIL
  • 10
    0832-017 BEARING
    BEARING
  • 11
    0828-021 SHIM, 25 X 34 X 0.25 MM
    SHIM, 25 X 34 X 0.25 MM
  • 11
    0828-022 SHIM, 25 X 34 X 0.30 MM
    SHIM, 25 X 34 X 0.30 MM
  • 11
    0828-023 SHIM, 25 X 34 X 0.70 MM
    SHIM, 25 X 34 X 0.70 MM
  • 11
    0828-024 SHIM, 25 X 34 X 0.90 MM
    SHIM, 25 X 34 X 0.90 MM
  • 11
    0828-025 SHIM, 25 X 34 X 0.95 MM
    SHIM, 25 X 34 X 0.95 MM
  • 11
    0828-026 SHIM, 25 X 34 X 1.00 MM
    SHIM, 25 X 34 X 1.00 MM
  • 11
    0828-027 SHIM, 25 X 34 X 1.05 MM
    SHIM, 25 X 34 X 1.05 MM
  • 11
    0828-028 SHIM, 25 X 34 X 1.10 MM
    SHIM, 25 X 34 X 1.10 MM
  • 11
    0828-029 SHIM, 25 X 34 X 1.15 MM
    SHIM, 25 X 34 X 1.15 MM
  • 12
    0819-115 SHAFT, SECONDARY DRIVEN - FRONT
    SHAFT, SECONDARY DRIVEN - FRONT
  • 13
    0832-016 BEARING, DRIVEN GEAR
    BEARING, DRIVEN GEAR
  • 14
    0819-011 RING, DRIVEN BEARING
    RING, DRIVEN BEARING
  • 15
    0822-106 GEAR, SECONDARY DRIVEN
    GEAR, SECONDARY DRIVEN
  • 16
    0819-053 SHAFT, SECONDARY DRIVEN - REAR
    SHAFT, SECONDARY DRIVEN - REAR
  • 17
    0819-005 FLANGE, OUTPUT JOINT - REAR
    FLANGE, OUTPUT JOINT - REAR
  • 18
    0822-132 GEAR, SECONDARY DRIVE
    GEAR, SECONDARY DRIVE
  • 19
    0828-119 SHIM, 30 X 48 X 0.25 MM
    SHIM, 30 X 48 X 0.25 MM
  • 19
    0828-120 SHIM, 30 X 48 X 0.30 MM
    SHIM, 30 X 48 X 0.30 MM
  • 19
    0828-121 SHIM, 30 X 48 X 0.35 MM
    SHIM, 30 X 48 X 0.35 MM
  • 19
    0828-122 SHIM, 30 X 48 X 0.90 MM
    SHIM, 30 X 48 X 0.90 MM
  • 19
    0828-123 SHIM, 30 X 48 X 0.95 MM
    SHIM, 30 X 48 X 0.95 MM
  • 19
    0828-124 SHIM, 30 X 48 X 1.00 MM
    SHIM, 30 X 48 X 1.00 MM
  • 19
    0828-125 SHIM, 30 X 48 X 1.05 MM
    SHIM, 30 X 48 X 1.05 MM
  • 19
    0828-126 SHIM, 30 X 48 X 1.10 MM
    SHIM, 30 X 48 X 1.10 MM
  • 19
    0828-127 SHIM, 30 X 48 X 1.15 MM
    SHIM, 30 X 48 X 1.15 MM
  • 20
    0832-083 BEARING W/ SNAP RING
    BEARING W/ SNAP RING
  • 21
    0827-060 NUT
    NUT
  • 22
    0832-050 BEARING
    BEARING
