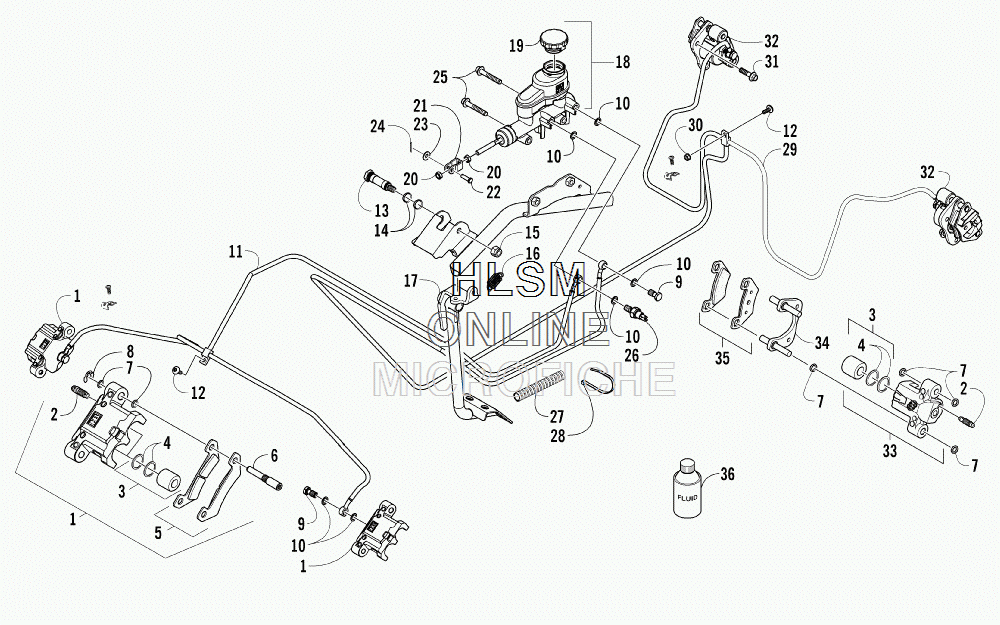

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat WILDCAT 4 1000 LIMITED ORANGE METALLIC [U2014WBW1PUSY] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    2502-030 CALIPER, BRAKE - FRONT RIGHT (INC. 2-4)
    CALIPER, BRAKE - FRONT RIGHT (INC. 2-4)
  • 1
    2502-031 CALIPER, BRAKE - FRONT LEFT (INC. 2-4)
    CALIPER, BRAKE - FRONT LEFT (INC. 2-4)
  • 2
    0502-609 ...VALVE, BLEED
    ...VALVE, BLEED
  • 3
    0502-606 ...PISTON/SEAL SET (INC. 4)
    ...PISTON/SEAL SET (INC. 4)
  • 4
    0502-607 ......SEAL SET
    ......SEAL SET
  • 5
    2502-034 PAD, BRAKE - SET - FRONT
    PAD, BRAKE - SET - FRONT
  • 6
    2402-106 PIN, RETAINING
    PIN, RETAINING
  • 7
    0502-608 O-RING, GUIDE - SET
    O-RING, GUIDE - SET
  • 8
    2402-107 RING, RETAINING
    RING, RETAINING
  • 9
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 10
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 11
    2402-118 HOSE, BRAKE - FRONT
    HOSE, BRAKE - FRONT
  • 12
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0402-872 AXLE
    AXLE
  • 14
    1602-213 O-RING
    O-RING
  • 15
    8422-002 NUT, LOCK
    NUT, LOCK
  • 16
    1612-178 SPRING
    SPRING
  • 17
    2502-071 LEVER, BRAKE
    LEVER, BRAKE
  • 18
    0502-786 CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 19-21)
    CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 19-21)
  • 19
    0405-225 ...CAP, RESERVOIR
    ...CAP, RESERVOIR
  • 20
    0402-592 ...NUT
    ...NUT
  • 21
    1402-520 ...CLEVIS
    ...CLEVIS
  • 22
    1402-377 PIN, CLEVIS
    PIN, CLEVIS
  • 23
    8050-217 WASHER
    WASHER
  • 24
    0117-868 PIN, COTTER
    PIN, COTTER
  • 25
    8408-850 SCREW, CAP
    SCREW, CAP
  • 26
    3313-239 SWITCH, BRAKE PRESSURE
    SWITCH, BRAKE PRESSURE
  • 27
    0619-776 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
  • 28
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 29
    2402-065 HOSE, BRAKE - REAR
    HOSE, BRAKE - REAR
  • 30
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 31
    8408-831 SCREW, CAP
    SCREW, CAP
  • 32
    1502-729 CALIPER, BRAKE - REAR RIGHT (INC. 2-4, 7, AND 33-35)
    CALIPER, BRAKE - REAR RIGHT (INC. 2-4, 7, AND 33-35)
  • 32
    1502-728 CALIPER, BRAKE - REAR LEFT (INC. 2-4, 7, AND 33-35)
    CALIPER, BRAKE - REAR LEFT (INC. 2-4, 7, AND 33-35)
  • 33
    1436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR RIGHT (INC. 2-4)
    ...HOUSING, CALIPER - ASSEMBLY - REAR RIGHT (INC. 2-4)
  • 33
    1436-160 ...HOUSING, CALIPER - ASSEMBLY - REAR LEFT (INC. 2-4)
    ...HOUSING, CALIPER - ASSEMBLY - REAR LEFT (INC. 2-4)
  • 34
    0502-960 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 35
    1436-420 ...PAD, BRAKE - SET - REAR
    ...PAD, BRAKE - SET - REAR
  • 36
    5639-848 FLUID, BRAKE - 12 OZ
    FLUID, BRAKE - 12 OZ
