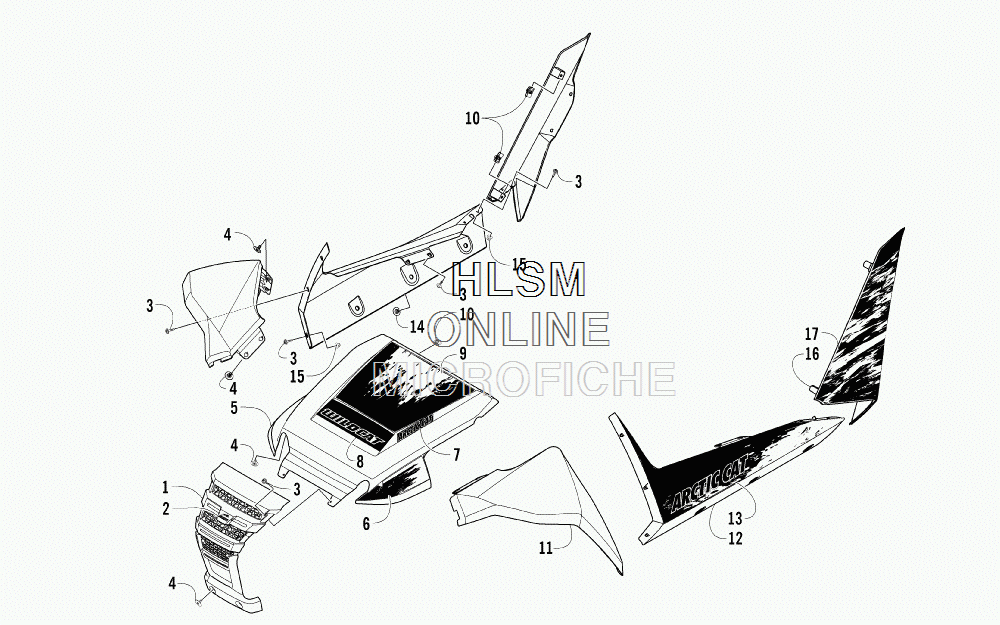

FRONT AND SIDE PANEL ASSEMBLIES для Arctic Cat WILDCAT 1000 ORANGE METALLIC [U2014W3W1PUSY] - 2014 года выпуска

№

Артикул

Название
1

2416-685 FASCIA, FRONT - BLACK

FASCIA, FRONT - BLACK
2

2411-943 DECAL, "ARCTIC CAT"

DECAL, "ARCTIC CAT"
3

0423-609 SCREW, MACHINE

SCREW, MACHINE
4

0423-101 SCREW, SHOULDER

SCREW, SHOULDER
5

5506-416 HOOD - BLACK

HOOD - BLACK
6

3411-714 DECAL, HOOD - RIGHT (ORANGE METAL)

DECAL, HOOD - RIGHT (ORANGE METAL)
6

3411-715 DECAL, HOOD - LEFT (ORANGE METAL)

DECAL, HOOD - LEFT (ORANGE METAL)
7

3411-716 DECAL, "ARCTIC CAT" (ORANGE METAL)

DECAL, "ARCTIC CAT" (ORANGE METAL)
8

3411-713 DECAL, HOOD - FRONT (ORANGE METAL)

DECAL, HOOD - FRONT (ORANGE METAL)
9

3411-712 DECAL, HOOD - CENTER (ORANGE METAL)

DECAL, HOOD - CENTER (ORANGE METAL)
10

0423-577 CLIP, U-NUT

CLIP, U-NUT
11

5506-420 FENDER, FRONT - RIGHT - BLACK

FENDER, FRONT - RIGHT - BLACK
11

5506-421 FENDER, FRONT - LEFT - BLACK

FENDER, FRONT - LEFT - BLACK
12

2416-988 PANEL, SIDE - LOWER RIGHT - BLACK

PANEL, SIDE - LOWER RIGHT - BLACK
12

2416-989 PANEL, SIDE - LOWER LEFT - BLACK

PANEL, SIDE - LOWER LEFT - BLACK
13

3411-722 DECAL, LOWER SIDE PANEL - RIGHT (ORANGE METAL)

DECAL, LOWER SIDE PANEL - RIGHT (ORANGE METAL)
13

3411-723 DECAL, LOWER SIDE PANEL - LEFT (ORANGE METAL)

DECAL, LOWER SIDE PANEL - LEFT (ORANGE METAL)
14

1423-133 SCREW, SHOULDER

SCREW, SHOULDER
15

8427-602 NUT, LOCK

NUT, LOCK
16

2416-990 PANEL, SIDE - UPPER RIGHT - BLACK

PANEL, SIDE - UPPER RIGHT - BLACK
16

2416-991 PANEL, SIDE - UPPER LEFT - BLACK

PANEL, SIDE - UPPER LEFT - BLACK
17

3411-724 DECAL, UPPER SIDE PANEL - RIGHT (ORANGE METAL)

DECAL, UPPER SIDE PANEL - RIGHT (ORANGE METAL)
17

3411-725 DECAL, UPPER SIDE PANEL - LEFT (ORANGE METAL)

DECAL, UPPER SIDE PANEL - LEFT (ORANGE METAL)
