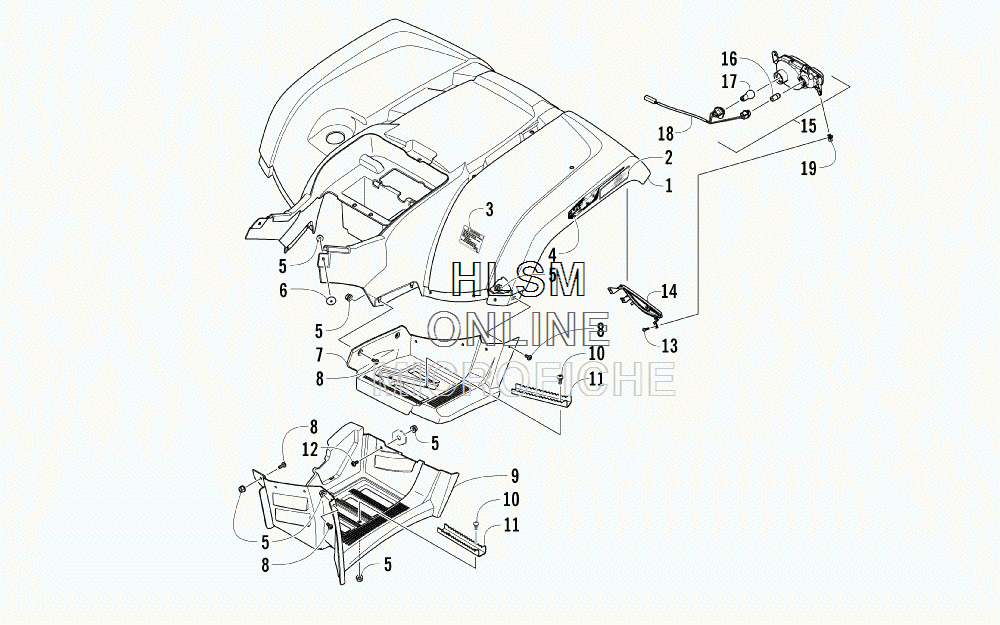

REAR BODY PANEL AND FOOTWELL ASSEMBLIES для Arctic Cat TRV 1000 EFT 4X4 BLUE [A2014TGW1PETL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    5506-448 FENDER, REAR - ASSEMBLY - BLUE
    FENDER, REAR - ASSEMBLY - BLUE
  • 2
    1411-592 DECAL, REFLECTOR - RIGHT - RED
    DECAL, REFLECTOR - RIGHT - RED
  • 2
    1411-593 DECAL, REFLECTOR - LEFT - RED
    DECAL, REFLECTOR - LEFT - RED
  • 3
    2411-830 DECAL, WARNING - TIRE PRESSURE
    DECAL, WARNING - TIRE PRESSURE
  • 4
    3411-532 DECAL, "XT" (BLUE)
    DECAL, "XT" (BLUE)
  • 4
    3411-533 DECAL, "XT" (BLUE)
    DECAL, "XT" (BLUE)
  • 5
    8427-602 NUT, LOCK
    NUT, LOCK
  • 6
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 7
    2406-042 FOOTWELL, REAR - RIGHT
    FOOTWELL, REAR - RIGHT
  • 7
    2406-043 FOOTWELL, REAR - LEFT
    FOOTWELL, REAR - LEFT
  • 8
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    2506-856 FOOTWELL - RIGHT
    FOOTWELL - RIGHT
  • 9
    2506-857 FOOTWELL - LEFT
    FOOTWELL - LEFT
  • 10
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 11
    5506-497 FOOTPEG
    FOOTPEG
  • 12
    8477-620 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    8476-516 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0409-112 BEZEL, TAILLIGHT - RIGHT
    BEZEL, TAILLIGHT - RIGHT
  • 14
    0409-113 BEZEL, TAILLIGHT - LEFT
    BEZEL, TAILLIGHT - LEFT
  • 15
    3313-392 TAILLIGHT ASSEMBLY - RIGHT (INC. 16-18)
    TAILLIGHT ASSEMBLY - RIGHT (INC. 16-18)
  • 15
    3313-393 TAILLIGHT ASSEMBLY - LEFT (INC. 16-18)
    TAILLIGHT ASSEMBLY - LEFT (INC. 16-18)
  • 16
    3313-506 ...BULB, TURN SIGNAL
    ...BULB, TURN SIGNAL
  • 17
    3303-849 ...BULB, TAILLIGHT
    ...BULB, TAILLIGHT
  • 18
    3313-509 ...HARNESS, TAILLIGHT - RIGHT
    ...HARNESS, TAILLIGHT - RIGHT
  • 18
    3313-507 ...HARNESS, TAILLIGHT - LEFT
    ...HARNESS, TAILLIGHT - LEFT
  • 19
    3304-061 CLIP, U-NUT
    CLIP, U-NUT
