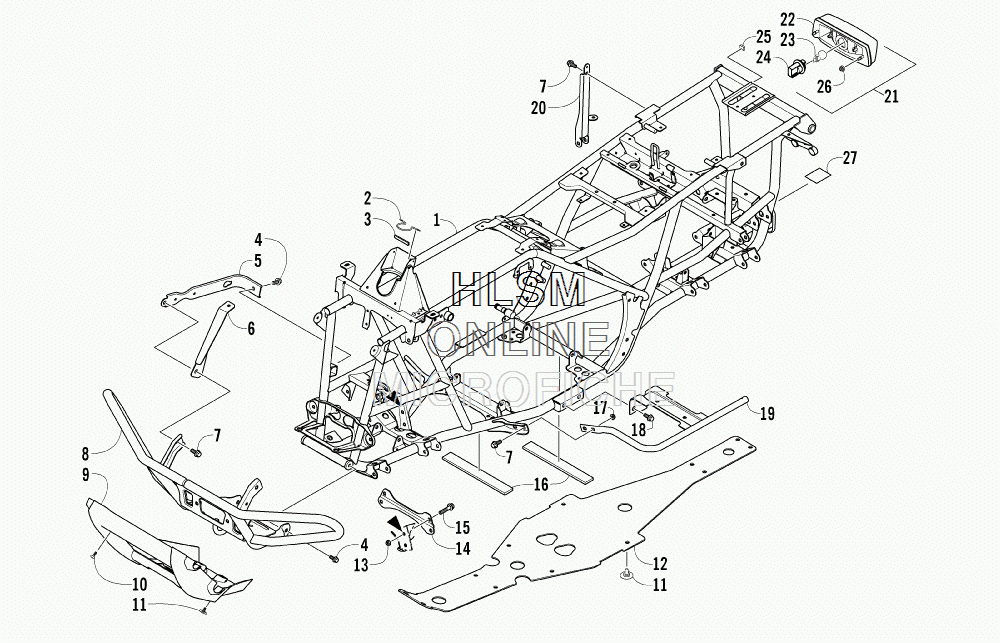

FRAME- TAILLIGHT- AND RELATED PARTS для Arctic Cat TBX 700 XT RED 4X4 [A2014BBT4EUSR] - 2014 года выпуска`
-
№АртикулНазвание
-
15506-411 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
48409-020 SCREW, CAPSCREW, CAP
-
51506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
61506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
78408-816 SCREW, CAPSCREW, CAP
-
81506-855 BUMPERBUMPER
-
91406-360 FASCIA, BUMPER - FRONTFASCIA, BUMPER - FRONT
-
100423-419 SCREW, MACHINESCREW, MACHINE
-
110423-101 SCREW, SHOULDERSCREW, SHOULDER
-
122406-091 PANEL, BELLYPANEL, BELLY
-
130423-744 NUT, LOCKNUT, LOCK
-
142516-852 BRACE, A-ARMBRACE, A-ARM
-
158409-025 SCREW, CAPSCREW, CAP
-
160406-289 PAD, FRAMEPAD, FRAME
-
178424-802 NUTNUT
-
188409-016 SCREW, CAPSCREW, CAP
-
191506-590 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
191506-591 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
202506-447 BRACKET, SUPPORTBRACKET, SUPPORT
-
210509-022 TAILLIGHT ASSEMBLY (INC. 22-24)TAILLIGHT ASSEMBLY (INC. 22-24)
-
220509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
230409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
240409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
251406-790 PAD, TAILLIGHTPAD, TAILLIGHT
-
260423-534 GROMMETGROMMET
-
271411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
