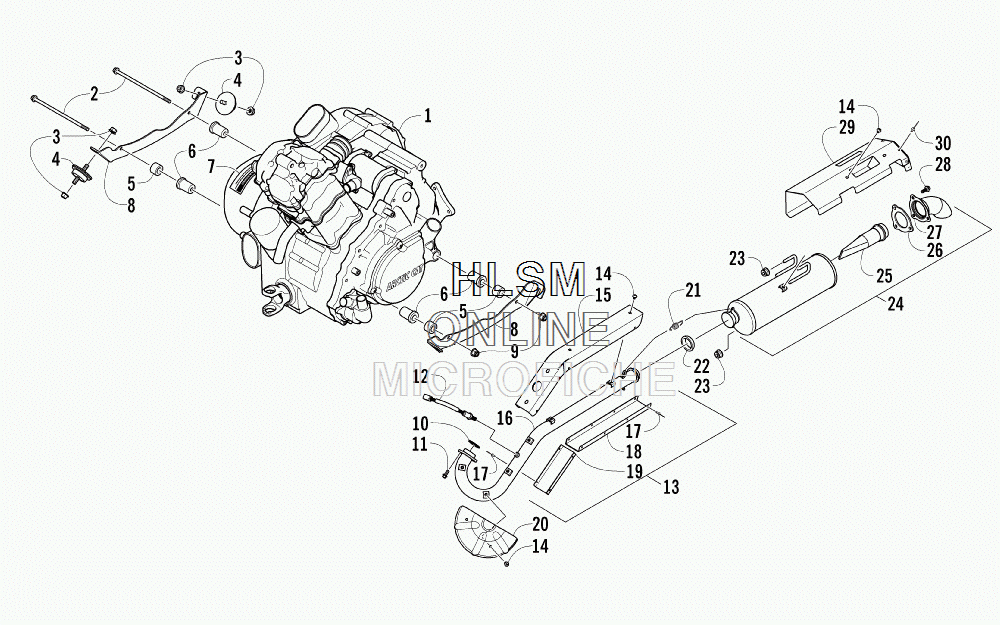

ENGINE AND EXHAUST для Arctic Cat PROWLER 700 HDX 4X4 RED [U2014P5T1POSE] (INTERNATIONAL) - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0800-131 ENGINE, A700L
    ENGINE, A700L
  • 2
    1423-064 SCREW, CAP
    SCREW, CAP
  • 3
    8424-002 NUT
    NUT
  • 4
    0408-014 MOUNT, ENGINE
    MOUNT, ENGINE
  • 5
    1423-025 SPACER
    SPACER
  • 6
    0801-180 BUSHING
    BUSHING
  • 7
    0411-426 DECAL, WARNING
    DECAL, WARNING
  • 8
    2516-768 BRACKET, ENGINE - RIGHT
    BRACKET, ENGINE - RIGHT
  • 8
    2516-769 BRACKET, ENGINE - LEFT
    BRACKET, ENGINE - LEFT
  • 9
    8428-002 NUT, LOCK
    NUT, LOCK
  • 10
    0412-338 GASKET, EXHAUST
    GASKET, EXHAUST
  • 11
    8408-820 SCREW, CAP
    SCREW, CAP
  • 12
    0630-302 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 13
    0512-640 PIPE, EXHAUST - ASSEMBLY (INC. FOUR NO. 14 AND 15-19)
    PIPE, EXHAUST - ASSEMBLY (INC. FOUR NO. 14 AND 15-19)
  • 14
    8477-610 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 15
    0412-693 ...SHIELD, PIPE - UPPER REAR
    ...SHIELD, PIPE - UPPER REAR
  • 16
    0512-641 ...PIPE, EXHAUST
    ...PIPE, EXHAUST
  • 17
    1623-130 ...RIVET
    ...RIVET
  • 18
    0412-580 ...SHIELD, PIPE - LOWER REAR
    ...SHIELD, PIPE - LOWER REAR
  • 19
    0412-579 ...SHIELD, PIPE - LOWER FRONT
    ...SHIELD, PIPE - LOWER FRONT
  • 20
    0512-547 SHIELD, PIPE - FORWARD
    SHIELD, PIPE - FORWARD
  • 21
    0612-668 SPRING
    SPRING
  • 22
    0412-375 SEAL, EXHAUST
    SEAL, EXHAUST
  • 23
    0412-544 BUSHING
    BUSHING
  • 24
    0512-651 MUFFLER - ASSEMBLY (INC. 25-28)
    MUFFLER - ASSEMBLY (INC. 25-28)
  • 25
    0512-647 ...SPARK ARRESTER ASSEMBLY
    ...SPARK ARRESTER ASSEMBLY
  • 26
    0412-675 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 27
    0512-733 ...PIPE, TAIL - BLACK
    ...PIPE, TAIL - BLACK
  • 28
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 29
    0512-667 SHIELD, HEAT - MUFFLER (INC. 30)
    SHIELD, HEAT - MUFFLER (INC. 30)
  • 30
    8061-486 ...RIVET
    ...RIVET
