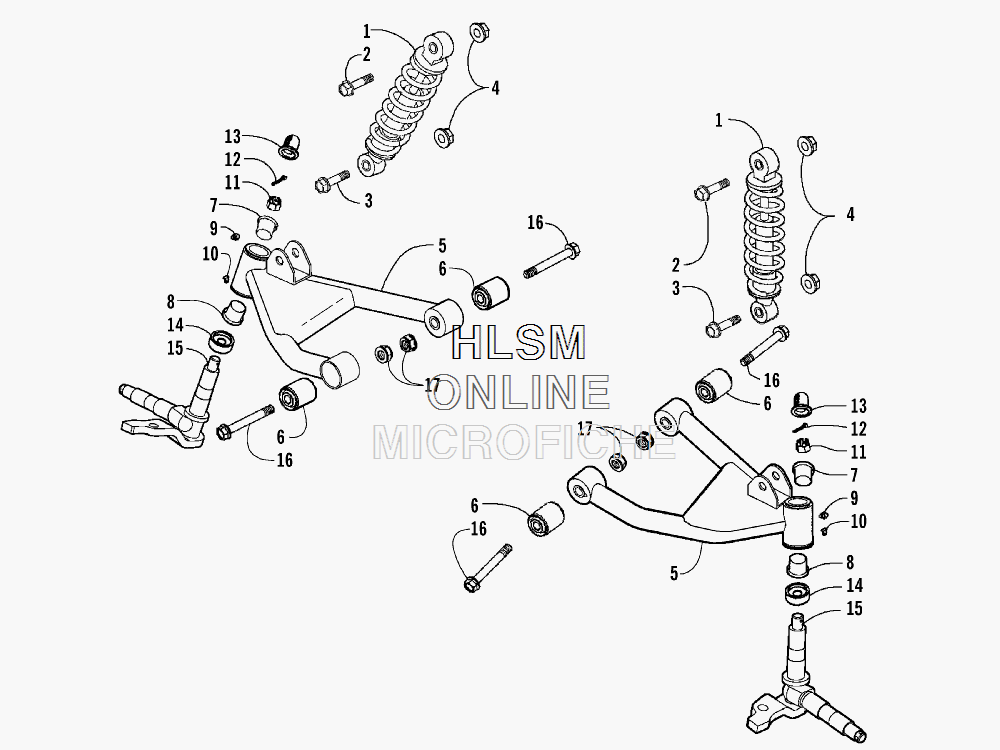

FRONT SUSPENSION ASSEMBLY для Arctic Cat DVX 90 [A2014KSB2BUSZ] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-739 SHOCK/SPRING ASSEMBLY - WHITE
    SHOCK/SPRING ASSEMBLY - WHITE
  • 2
    3303-376 SCREW, CAP
    SCREW, CAP
  • 3
    3303-309 SCREW, CAP
    SCREW, CAP
  • 4
    3303-333 NUT
    NUT
  • 5
    3305-994 ARM, SWING - RIGHT (INC. 6-10)
    ARM, SWING - RIGHT (INC. 6-10)
  • 5
    3305-995 ARM, SWING - LEFT (INC. 6-10)
    ARM, SWING - LEFT (INC. 6-10)
  • 6
    3303-216 ...BUSHING
    ...BUSHING
  • 7
    3303-218 ...BUSHING UPPER
    ...BUSHING UPPER
  • 8
    3303-217 ...BUSHING BOTTOM
    ...BUSHING BOTTOM
  • 9
    3303-393 ...FITTING, GREASE
    ...FITTING, GREASE
  • 10
    3303-394 ...CAP, GREASE FITTING
    ...CAP, GREASE FITTING
  • 11
    3303-329 NUT, CASTLE
    NUT, CASTLE
  • 12
    3303-337 PIN, COTTER
    PIN, COTTER
  • 13
    3303-219 CAP
    CAP
  • 14
    3303-220 SEAL
    SEAL
  • 15
    3303-178 SHAFT, STEERING - RIGHT
    SHAFT, STEERING - RIGHT
  • 15
    3303-180 SHAFT, STEERING - LEFT
    SHAFT, STEERING - LEFT
  • 16
    3304-595 SCREW, CAP
    SCREW, CAP
  • 17
    3304-031 NUT
    NUT
