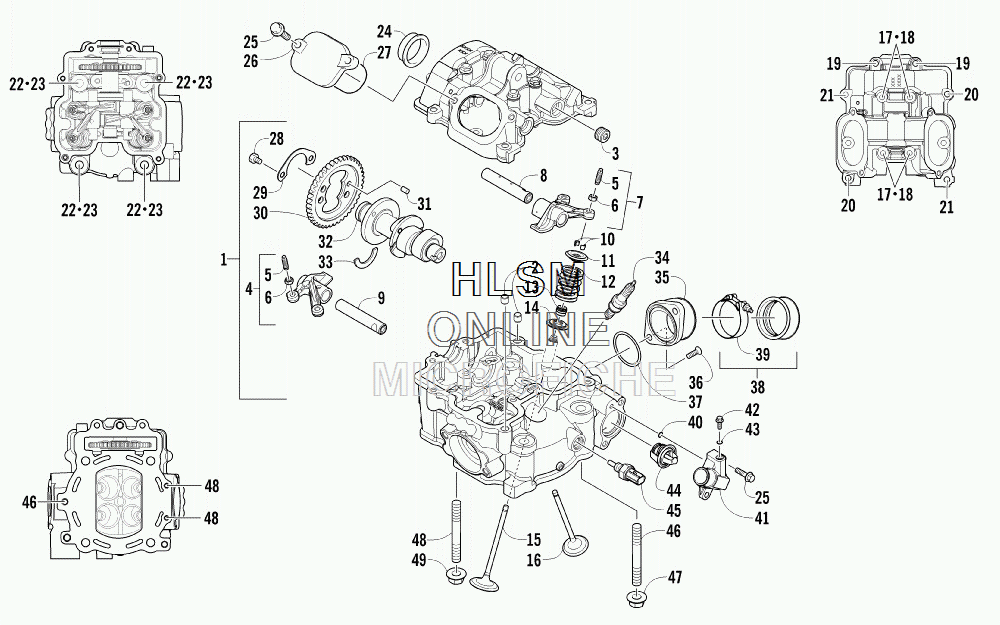

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat ATV 700 XT GREEN [A2014AGT1POSX] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
10808-226 HEAD, CYLINDER - ASSEMBLY (INC. 2-17)HEAD, CYLINDER - ASSEMBLY (INC. 2-17)
-
20829-062 ...PIN, DOWEL...PIN, DOWEL
-
30831-092 ...PLUG, SHAFT...PLUG, SHAFT
-
40809-319 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
-
50809-240 ......SCREW, ADJUSTER......SCREW, ADJUSTER
-
60827-059 ......NUT......NUT
-
70809-318 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
-
80809-241 ...SHAFT, ROCKER ARM - INTAKE...SHAFT, ROCKER ARM - INTAKE
-
90809-242 ...SHAFT, ROCKER ARM - EXHAUST...SHAFT, ROCKER ARM - EXHAUST
-
100809-233 ...COTTER, VALVE...COTTER, VALVE
-
110809-232 ...RETAINER, SPRING...RETAINER, SPRING
-
120809-231 ...SPRING, VALVE...SPRING, VALVE
-
130830-186 ...SEAL, OIL...SEAL, OIL
-
140809-215 ...SEAT, SPRING - VALVE...SEAT, SPRING - VALVE
-
150809-228 ...VALVE, INTAKE...VALVE, INTAKE
-
160809-229 ...VALVE, EXHAUST...VALVE, EXHAUST
-
170826-149 ...SCREW, CAP...SCREW, CAP
-
180830-155 GASKETGASKET
-
190826-002 SCREW,CAP HFH M6 X 1 X 30SCREW,CAP HFH M6 X 1 X 30
-
200826-005 SCREW,CAP HFH M6 X 1 X 35SCREW,CAP HFH M6 X 1 X 35
-
210826-006 SCREW,CAP HFH M6 X 1 X 25SCREW,CAP HFH M6 X 1 X 25
-
220808-037 BOLT,HFH M10 X 1.25 - 195 (HEAD BOLT)BOLT,HFH M10 X 1.25 - 195 (HEAD BOLT)
-
230830-147 WASHERWASHER
-
240808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
250826-007 SCREW, CAPSCREW, CAP
-
260808-003 CAP, INSPECTIONCAP, INSPECTION
-
270830-004 O-RINGO-RING
-
280826-034 SCREW, CAP HH-M6-1X10.5 W/THD LOCKSCREW, CAP HH-M6-1X10.5 W/THD LOCK
-
290828-004 PLATE, RETAINERPLATE, RETAINER
-
300809-212 SPROCKETSPROCKET
-
310829-049 PIN, DOWELPIN, DOWEL
-
320809-245 CAMSHAFTCAMSHAFT
-
330809-003 C-RINGC-RING
-
340217-799 SPARK PLUG - CPR8ESPARK PLUG - CPR8E
-
350470-668 FLANGE, INTAKE MANIFOLDFLANGE, INTAKE MANIFOLD
-
360826-008 SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOCSCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC
-
370830-090 O-RINGO-RING
-
380437-069 BOOT (INC. 39)BOOT (INC. 39)
-
391423-041 ...CLAMP...CLAMP
-
400830-168 O-RINGO-RING
-
410808-208 COVER, THERMOSTAT (INC. 42-43)COVER, THERMOSTAT (INC. 42-43)
-
428408-512 ...SCREW, CAP...SCREW, CAP
-
430423-182 ...O-RING...O-RING
-
440808-078 THERMOSTAT (65 DEG)THERMOSTAT (65 DEG)
-
450808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
460827-031 BOLT, STUDBOLT, STUD
-
478424-804 NUTNUT
-
480827-054 BOLT, STUDBOLT, STUD
-
498424-604 NUTNUT
