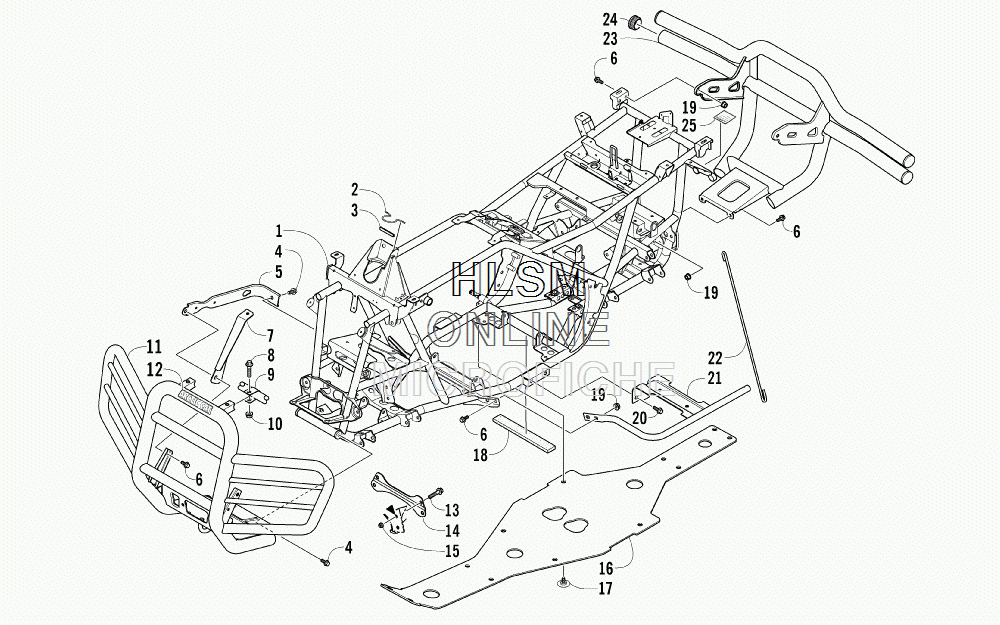

FRAME AND RELATED PARTS для Arctic Cat ATV 700 LTD METALIC RED [A2014ALT1PUSE] - 2014 года выпуска`
-
№АртикулНазвание
-
14506-853 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
48409-020 SCREW, CAPSCREW, CAP
-
51506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
68408-816 SCREW, CAPSCREW, CAP
-
71506-562 BRACKET, MOUNTING - BUMPER - RIGHT (BLACK)BRACKET, MOUNTING - BUMPER - RIGHT (BLACK)
-
71506-563 BRACKET, MOUNTING - BUMPER - LEFT (BLACK)BRACKET, MOUNTING - BUMPER - LEFT (BLACK)
-
88410-835 SCREW, CAPSCREW, CAP
-
92506-641 STRAP, SUPPORTSTRAP, SUPPORT
-
108424-805 NUTNUT
-
112506-639 BUMPER, FRONTBUMPER, FRONT
-
120411-501 DECAL, BUMPER - "ARCTIC CAT"DECAL, BUMPER - "ARCTIC CAT"
-
138409-025 SCREW, CAPSCREW, CAP
-
142516-852 BRACE, A-ARMBRACE, A-ARM
-
150423-744 NUT, LOCKNUT, LOCK
-
161406-030 PANEL, BELLYPANEL, BELLY
-
170423-101 SCREW, SHOULDERSCREW, SHOULDER
-
180406-289 PAD, FRAMEPAD, FRAME
-
198424-802 NUTNUT
-
208409-016 SCREW, CAPSCREW, CAP
-
211506-380 FOOTREST - RIGHT (BLACK)FOOTREST - RIGHT (BLACK)
-
211506-379 FOOTREST - LEFT (BLACK)FOOTREST - LEFT (BLACK)
-
222506-423 ROD, SUPPORTROD, SUPPORT
-
231506-615 BUMPER, REAR (INC. 24)BUMPER, REAR (INC. 24)
-
240406-130 ...PLUG...PLUG
-
251411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
