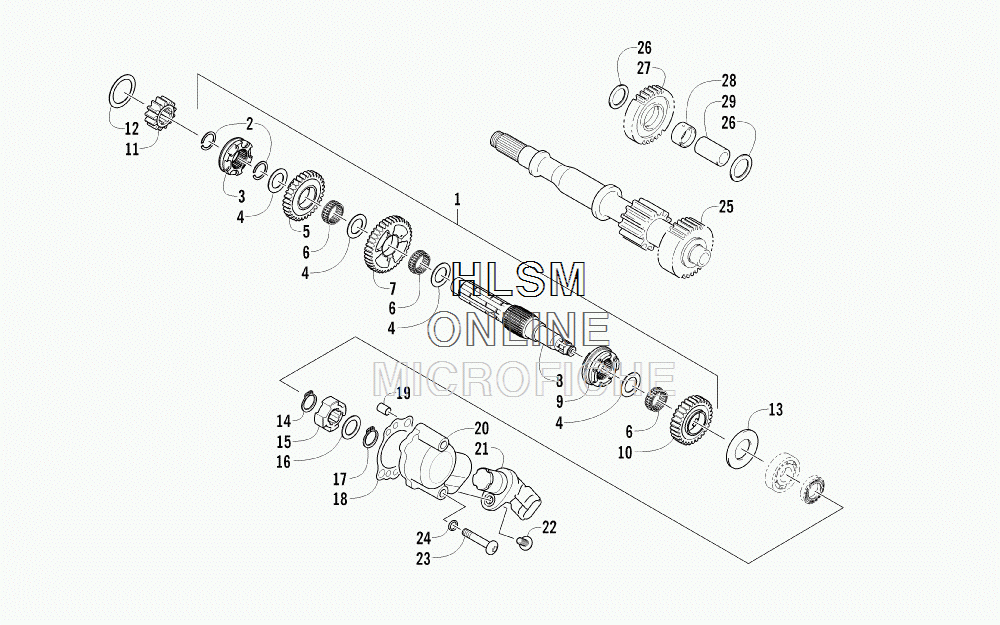

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat ATV 700 LTD METALIC RED [A2014ALT1POSE] (INTERNATIONAL) - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0822-144 COUNTERSHAFT ASSEMBLY (INC. 2-10)
    COUNTERSHAFT ASSEMBLY (INC. 2-10)
  • 2
    0831-085 ...RING, RETAINING
    ...RING, RETAINING
  • 3
    0822-120 ...GEAR SELECT, REVERSE
    ...GEAR SELECT, REVERSE
  • 4
    0822-121 ...SHIM
    ...SHIM
  • 5
    0822-119 ...GEAR, REVERSE DRIVEN
    ...GEAR, REVERSE DRIVEN
  • 6
    0832-082 ...BEARING
    ...BEARING
  • 7
    0822-114 ...GEAR, DRIVEN - LOW
    ...GEAR, DRIVEN - LOW
  • 8
    0822-113 ...COUNTERSHAFT
    ...COUNTERSHAFT
  • 9
    0822-145 ...GEAR SELECT, SLIDING
    ...GEAR SELECT, SLIDING
  • 10
    0822-148 ...GEAR, DRIVEN - HIGH
    ...GEAR, DRIVEN - HIGH
  • 11
    0822-125 GEAR, DRIVE
    GEAR, DRIVE
  • 12
    0828-019 WASHER, THRUST
    WASHER, THRUST
  • 13
    0828-011 WASHER
    WASHER
  • 14
    0831-040 RING, RETAINING
    RING, RETAINING
  • 15
    0822-050 TRIGGER, SPEEDOMETER SENSOR
    TRIGGER, SPEEDOMETER SENSOR
  • 16
    0828-069 WASHER, THRUST
    WASHER, THRUST
  • 17
    0831-039 RING, RETAINING
    RING, RETAINING
  • 18
    0830-129 GASKET
    GASKET
  • 19
    0829-023 PIN, DOWEL
    PIN, DOWEL
  • 20
    0822-049 HOUSING, SPEEDOMETER SENSOR
    HOUSING, SPEEDOMETER SENSOR
  • 21
    0430-091 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 22
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    8468-645 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0830-107 GASKET
    GASKET
  • 25
    0822-001 DRIVESHAFT
    DRIVESHAFT
  • 26
    0828-016 WASHER, THRUST
    WASHER, THRUST
  • 27
    0822-011 GEAR, REVERSE IDLE
    GEAR, REVERSE IDLE
  • 28
    0822-012 BUSHING
    BUSHING
  • 29
    0822-015 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
