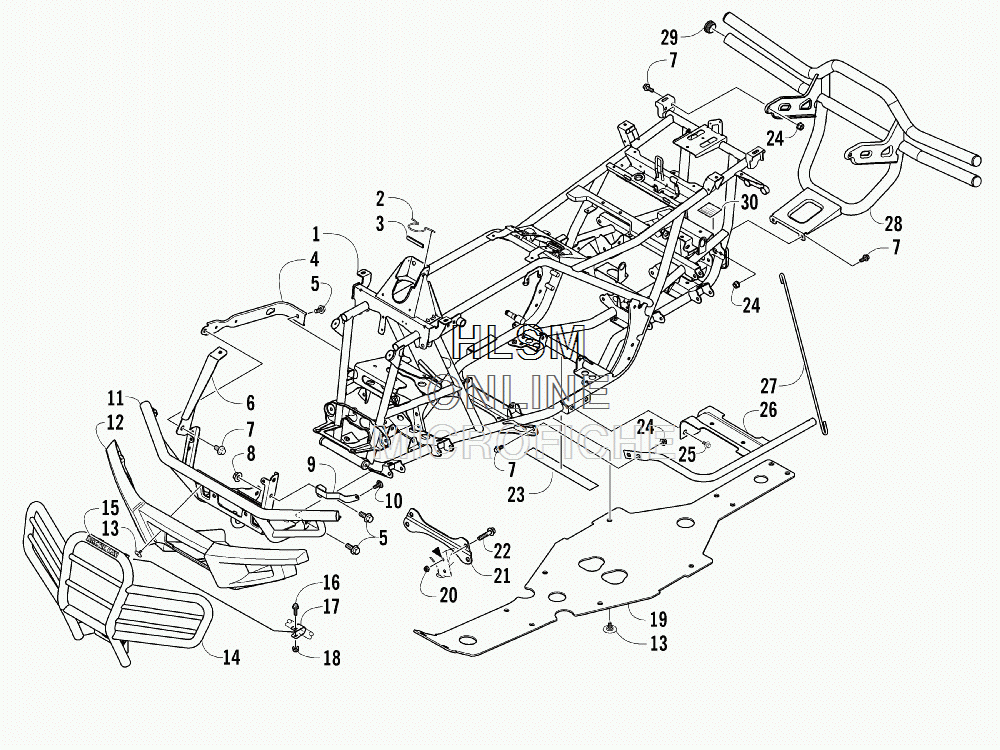

FRAME AND RELATED PARTS для Arctic Cat ATV 550 Limited 4X4 RED [A2014BLO1POSE] (INTERNATIONAL) - 2014 года выпуска`
-
№АртикулНазвание
-
14506-853 FRAME, MAIN (BLACK)FRAME, MAIN (BLACK)
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
41506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
58409-020 SCREW, CAPSCREW, CAP
-
61506-686 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-687 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
78408-816 SCREW, CAPSCREW, CAP
-
88424-002 NUTNUT
-
92516-594 BRACKET, SUPPORT - RIGHTBRACKET, SUPPORT - RIGHT
-
92516-595 BRACKET, SUPPORT - LEFTBRACKET, SUPPORT - LEFT
-
100623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
111506-684 BUMPER, FRONTBUMPER, FRONT
-
121406-868 FASCIA, BUMPER - FRONT - BLACKFASCIA, BUMPER - FRONT - BLACK
-
130423-101 SCREW, SHOULDERSCREW, SHOULDER
-
141436-032 BUMPER, PUSH - FRONT (INC. 15-18)BUMPER, PUSH - FRONT (INC. 15-18)
-
150411-501 ...DECAL, BUMPER - "ARCTIC CAT"...DECAL, BUMPER - "ARCTIC CAT"
-
168410-835 ...SCREW, CAP...SCREW, CAP
-
172506-641 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
188424-805 ...NUT...NUT
-
191406-030 PANEL, BELLYPANEL, BELLY
-
200423-744 NUT, LOCKNUT, LOCK
-
212516-852 BRACE, A-ARMBRACE, A-ARM
-
228409-025 SCREW, CAPSCREW, CAP
-
230406-289 PAD, FRAMEPAD, FRAME
-
248424-802 NUTNUT
-
258409-016 SCREW, CAPSCREW, CAP
-
261506-659 FOOTREST - RIGHTFOOTREST - RIGHT
-
261506-660 FOOTREST - LEFTFOOTREST - LEFT
-
272506-426 ROD, SUPPORTROD, SUPPORT
-
281506-802 BUMPER, PUSH - REAR (INC. 29)BUMPER, PUSH - REAR (INC. 29)
-
292406-045 ...PLUG, HOLE...PLUG, HOLE
-
301411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
