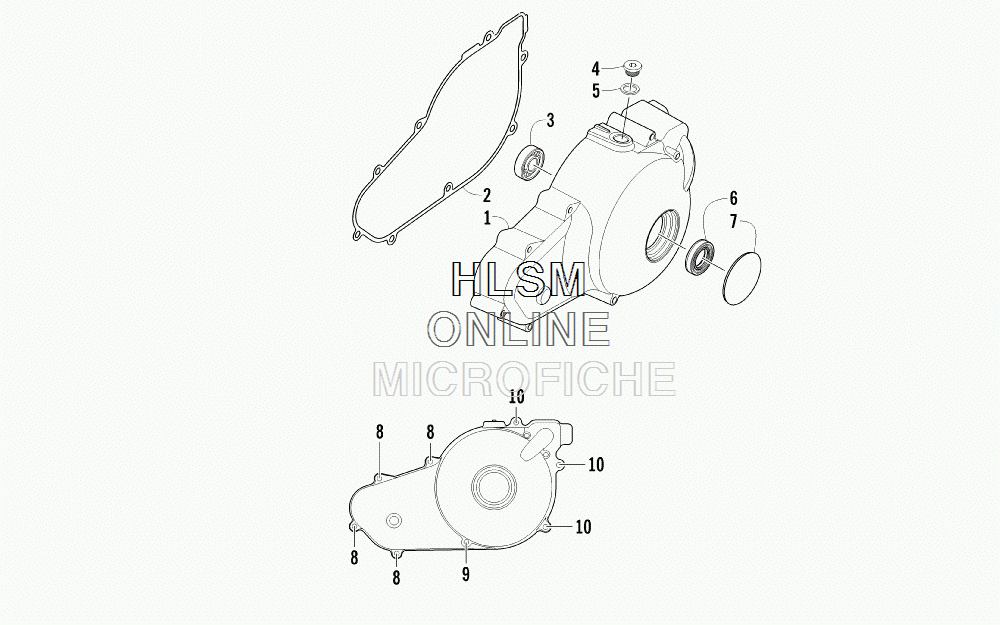

MAGNETO SIDE ENGINE COVERS для Arctic Cat ATV 1000 XT TEAM GREEN [A2014AGW1PUSX] - 2014 года выпуска
-
№АртикулНазвание
-
10806-107 COVER, MAGNETOCOVER, MAGNETO
-
20830-132 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
30832-010 BEARING, CONRAD-SC03A78C3BEARING, CONRAD-SC03A78C3
-
40826-155 PLUG, CHECKPLUG, CHECK
-
50830-015 WASHER, CRUSHWASHER, CRUSH
-
60830-176 SEAL, CAPSEAL, CAP
-
70806-066 CAP, MAGNETO COVERCAP, MAGNETO COVER
-
88468-650 SCREW, MACHINESCREW, MACHINE
-
98468-695 SCREW, MACHINESCREW, MACHINE
-
108468-665 SCREW, MACHINESCREW, MACHINE
