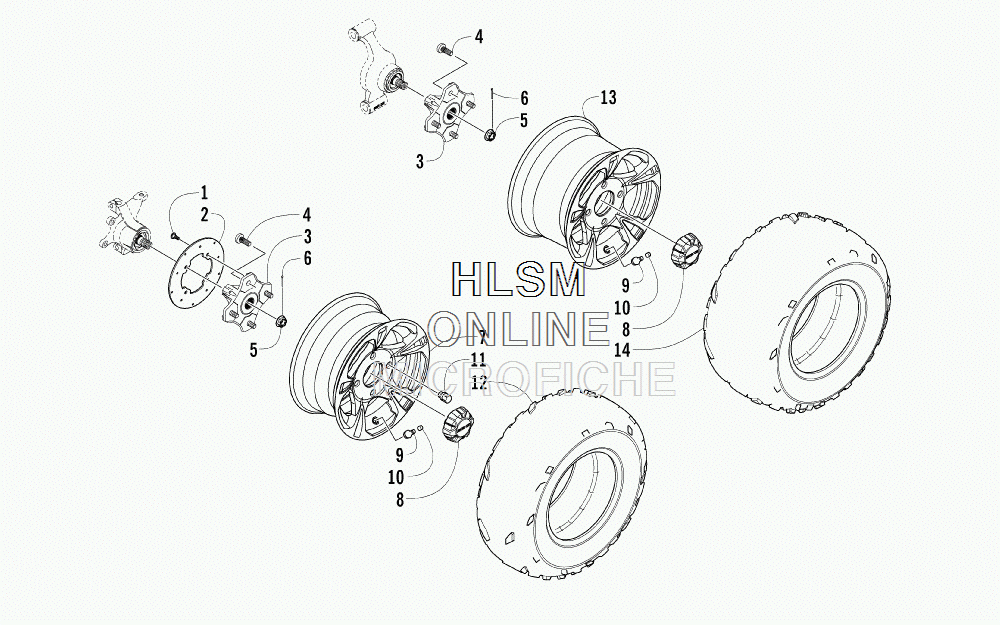

WHEEL AND TIRE ASSEMBLY для Arctic Cat ATV 1000 XT TEAM GREEN [A2014AGW1PUSX] (INTERNATIONAL) - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-557 SCREW, SHOULDER
    SCREW, SHOULDER
  • 2
    1436-808 DISC, BRAKE
    DISC, BRAKE
  • 3
    1502-437 HUB, WHEEL (INC. 4)
    HUB, WHEEL (INC. 4)
  • 4
    0402-974 ...STUD
    ...STUD
  • 5
    0423-607 NUT, CASTLE
    NUT, CASTLE
  • 6
    0423-407 PIN, COTTER
    PIN, COTTER
  • 7
    2402-068 WHEEL, ALUMINUM-FRONT (12X6.0) (INC. 8)
    WHEEL, ALUMINUM-FRONT (12X6.0) (INC. 8)
  • 8
    2402-084 ...CAP, WHEEL
    ...CAP, WHEEL
  • 9
    0402-064 STEM, VALVE (INC. 10)
    STEM, VALVE (INC. 10)
  • 10
    0402-140 ...CAP, VALVE STEM
    ...CAP, VALVE STEM
  • 11
    0423-618 NUT, LUG - CHROME
    NUT, LUG - CHROME
  • 12
    1402-935 TIRE, BIGHORN 2 AT26X9R12 (FR12) - FRONT
    TIRE, BIGHORN 2 AT26X9R12 (FR12) - FRONT
  • 13
    2402-069 WHEEL, ALUMINUM-REAR (12X7.5) (INC. 8)
    WHEEL, ALUMINUM-REAR (12X7.5) (INC. 8)
  • 14
    1402-936 TIRE, BIGHORN 2 AT26X11R12 (RR12) - REAR
    TIRE, BIGHORN 2 AT26X11R12 (RR12) - REAR
