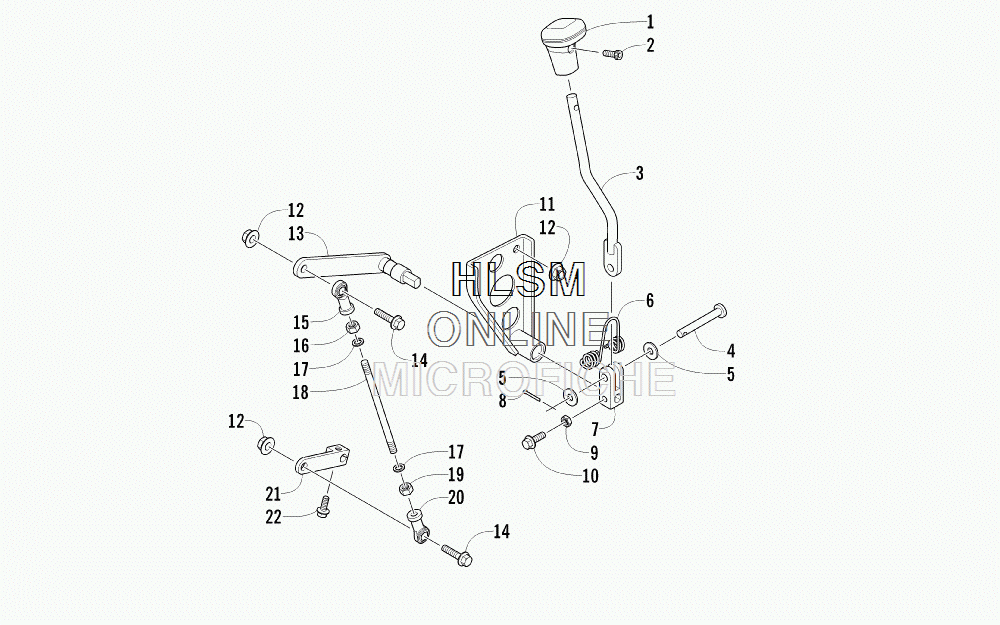

SHIFT LEVER ASSEMBLY для Arctic Cat 300 Utility [A2014KUF2BUSR] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-823 KNOB, SHIFT LEVER
    KNOB, SHIFT LEVER
  • 2
    3304-401 SCREW, CAP
    SCREW, CAP
  • 3
    3303-816 ROD, SHIFT LEVER
    ROD, SHIFT LEVER
  • 4
    3303-817 PIN, SHIFT LEVER
    PIN, SHIFT LEVER
  • 5
    3304-138 WASHER
    WASHER
  • 6
    3303-818 SPRING, SHIFT LEVER
    SPRING, SHIFT LEVER
  • 7
    3303-819 BRACKET, SHIFT LEVER
    BRACKET, SHIFT LEVER
  • 8
    3304-142 PIN, COTTER
    PIN, COTTER
  • 9
    3305-340 NUT
    NUT
  • 10
    3303-382 SCREW, CAP
    SCREW, CAP
  • 11
    3305-299 BRACKET, MOUNTING - SHIFT LEVER
    BRACKET, MOUNTING - SHIFT LEVER
  • 12
    3303-332 NUT
    NUT
  • 13
    3303-821 LEVER, SHIFT
    LEVER, SHIFT
  • 14
    3304-176 SCREW, CAP
    SCREW, CAP
  • 15
    3303-970 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 16
    3304-125 NUT, HEX - RIGHT-HAND THREAD
    NUT, HEX - RIGHT-HAND THREAD
  • 17
    3303-607 WASHER
    WASHER
  • 18
    3303-822 TIE ROD
    TIE ROD
  • 19
    3304-126 NUT, HEX - LEFT-HAND THREAD
    NUT, HEX - LEFT-HAND THREAD
  • 20
    3303-972 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 21
    3303-814 LINKAGE, SHIFT
    LINKAGE, SHIFT
  • 22
    3304-112 SCREW, CAP
    SCREW, CAP
