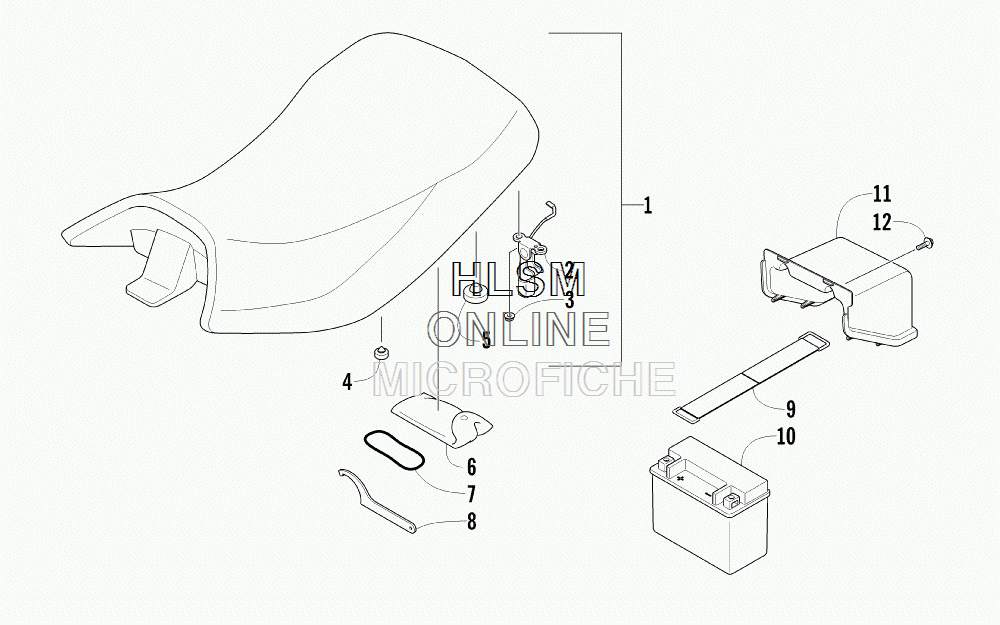

SEAT- BATTERY- AND TOOL KIT ASSEMBLIES для Arctic Cat 300 Utility [A2014KUF2BOSR] (INTERNATIONAL) - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-985 SEAT ASSEMBLY (INC. 2-5)
    SEAT ASSEMBLY (INC. 2-5)
  • 2
    3303-986 ...LATCH, SEAT
    ...LATCH, SEAT
  • 3
    3305-929 ...NUT
    ...NUT
  • 4
    3306-470 ...BUMPER, SEAT - FRONT
    ...BUMPER, SEAT - FRONT
  • 5
    3306-579 ...BUMPER, SEAT - REAR
    ...BUMPER, SEAT - REAR
  • 6
    3304-648 KIT, TOOL
    KIT, TOOL
  • 7
    3303-242 RETAINER, TOOL KIT
    RETAINER, TOOL KIT
  • 8
    1441-797 WRENCH, SPANNER - OPTIONAL
    WRENCH, SPANNER - OPTIONAL
  • 9
    3303-937 HOLD-DOWN, BATTERY
    HOLD-DOWN, BATTERY
  • 10
    3304-275 BATTERY
    BATTERY
  • 11
    3306-783 COVER, BATTERY - BLACK
    COVER, BATTERY - BLACK
  • 12
    3304-029 SCREW, CAP
    SCREW, CAP
