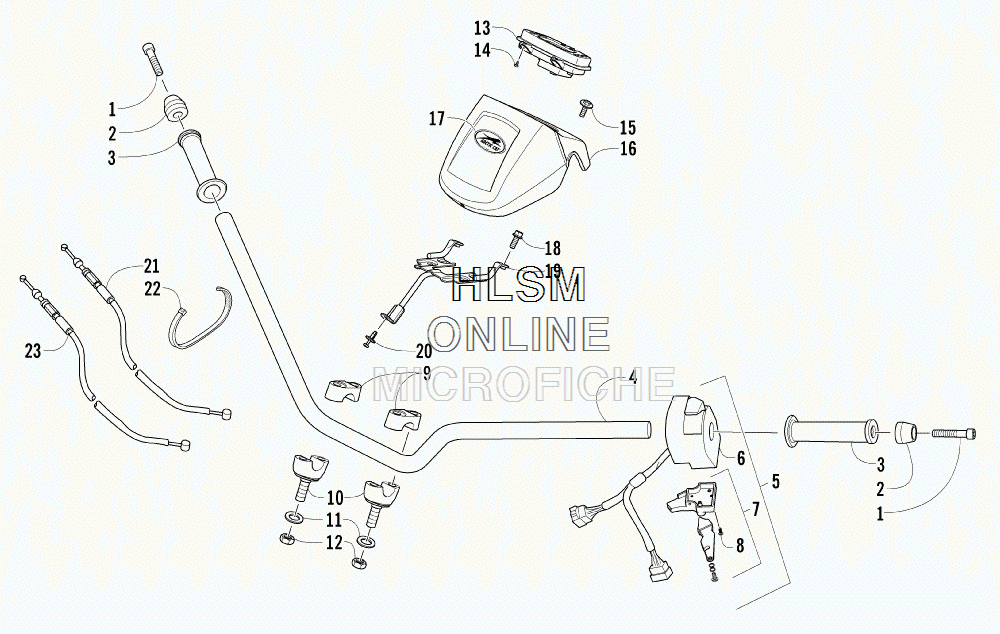

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 150 Utility [A2014KYC2BOSR] (INTERNATIONAL) - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-016 SCREW, CAP
    SCREW, CAP
  • 2
    3305-541 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 3
    3305-905 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 4
    3305-714 HANDLEBAR - BLACK
    HANDLEBAR - BLACK
  • 5
    3303-852 SWITCH, CONTROL - ASSEMBLY (INC. 6-8)
    SWITCH, CONTROL - ASSEMBLY (INC. 6-8)
  • 6
    3313-428 ...CONTROL
    ...CONTROL
  • 7
    3306-800 ...LEVER/BASE, CHOKE - ASSEMBLY (INC. 8)
    ...LEVER/BASE, CHOKE - ASSEMBLY (INC. 8)
  • 9
    3303-954 CLAMP, HANDLEBAR - UPPER
    CLAMP, HANDLEBAR - UPPER
  • 10
    3303-955 CLAMP, HANDLEBAR - LOWER
    CLAMP, HANDLEBAR - LOWER
  • 11
    3304-136 WASHER
    WASHER
  • 12
    3306-189 NUT
    NUT
  • 13
    3305-923 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 14
    3304-645 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    3304-029 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    3306-199 INSTRUMENT POD - BLACK
    INSTRUMENT POD - BLACK
  • 17
    9611-751 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
  • 18
    3305-400 SCREW, CAP
    SCREW, CAP
  • 19
    3305-715 BRACKET, INSTRUMENT POD
    BRACKET, INSTRUMENT POD
  • 20
    3303-592 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 21
    3305-072 CABLE, THROTTLE
    CABLE, THROTTLE
  • 22
    3303-839 TIE, CABLE
    TIE, CABLE
  • 22
    3303-289 TIE, CABLE
    TIE, CABLE
  • 23
    3303-723 CABLE, CHOKE
    CABLE, CHOKE
