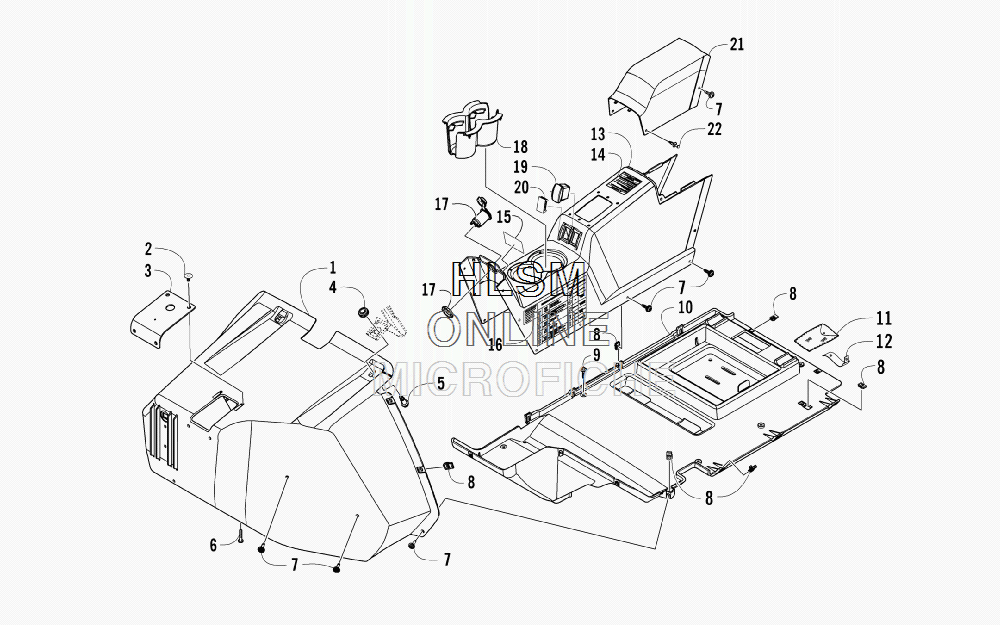

FRONT CONSOLE AND FLOOR PANEL ASSEMBLY для Arctic Cat Wildcat 4 1000 - BLACK [U2013W4W1POSQ] (INTERNATIONAL) - 2013 года выпуска`
-
№АртикулНазвание
-
12416-592 PANEL, FENDER - INNER RIGHTPANEL, FENDER - INNER RIGHT
-
12416-593 PANEL, FENDER - INNER LEFTPANEL, FENDER - INNER LEFT
-
20623-544 CLIP, RETAININGCLIP, RETAINING
-
32416-983 PANEL, FILLER - BRAKE PEDALPANEL, FILLER - BRAKE PEDAL
-
41423-104 GROMMETGROMMET
-
51423-125 SCREW, SHOULDERSCREW, SHOULDER
-
61423-083 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70423-609 SCREW, MACHINESCREW, MACHINE
-
80423-577 CLIP, U-NUTCLIP, U-NUT
-
91423-142 SCREW, CAP W/WASHERSCREW, CAP W/WASHER
-
102416-516 PANEL, FLOOR - RIGHTPANEL, FLOOR - RIGHT
-
102416-517 PANEL, FLOOR - LEFTPANEL, FLOOR - LEFT
-
112516-863 KIT, TOOLKIT, TOOL
-
120707-582 RETAINER, TOOL KITRETAINER, TOOL KIT
-
135506-247 CONSOLE - FRONT (INC. 14-16)CONSOLE - FRONT (INC. 14-16)
-
143411-262 ...DECAL, WARNING - REVERSE...DECAL, WARNING - REVERSE
-
152411-311 ...DECAL, STARTING INSTRUCTION...DECAL, STARTING INSTRUCTION
-
162411-940 ...DECAL, PRE-RIDE...DECAL, PRE-RIDE
-
170641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
182416-109 INSERT, CUPHOLDERINSERT, CUPHOLDER
-
190409-071 SWITCH, OVERRIDESWITCH, OVERRIDE
-
200409-070 PLUG, SWITCH-HOLEPLUG, SWITCH-HOLE
-
212416-841 COVER, ACCESS - BATTERYCOVER, ACCESS - BATTERY
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
