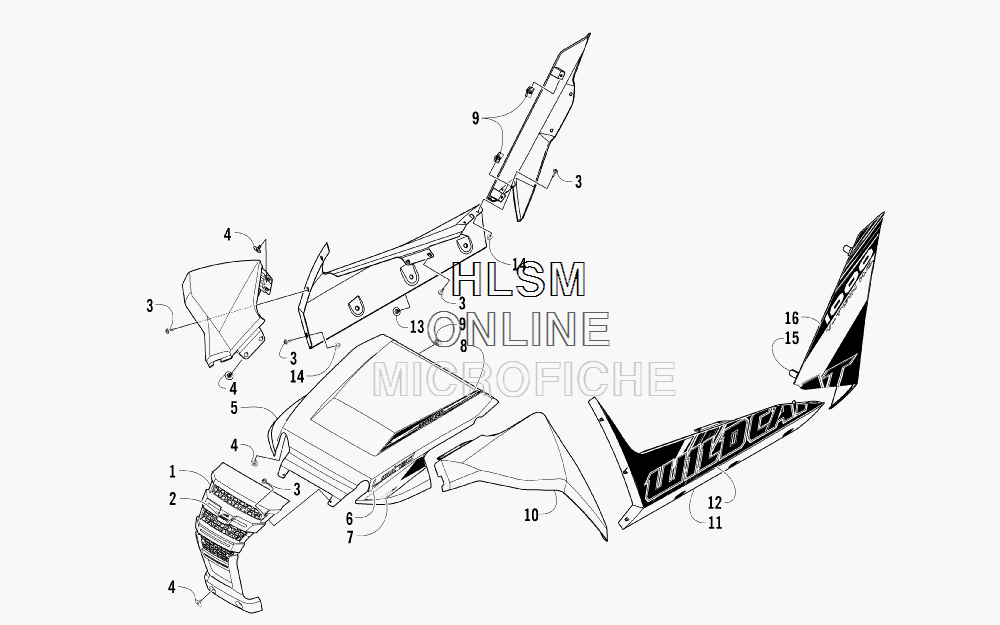

FRONT AND SIDE PANEL ASSEMBLIES для Arctic Cat Wildcat 1000 Limited - WHITE [U2013W2W1PUSW] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    2416-685 FASCIA, FRONT - BLACK
    FASCIA, FRONT - BLACK
  • 2
    2411-943 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
  • 3
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 5
    5506-152 HOOD - BLACK
    HOOD - BLACK
  • 6
    9611-796 DECAL, "LIMITED"
    DECAL, "LIMITED"
  • 7
    3411-172 DECAL, HOOD - RIGHT
    DECAL, HOOD - RIGHT
  • 7
    3411-173 DECAL, HOOD - LEFT
    DECAL, HOOD - LEFT
  • 8
    3411-170 DECAL, "ARCTIC CAT" - RIGHT
    DECAL, "ARCTIC CAT" - RIGHT
  • 8
    3411-171 DECAL, "ARCTIC CAT" - LEFT
    DECAL, "ARCTIC CAT" - LEFT
  • 9
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 10
    5506-142 FENDER, FRONT - RIGHT - WHITE
    FENDER, FRONT - RIGHT - WHITE
  • 10
    5506-143 FENDER, FRONT - LEFT - WHITE
    FENDER, FRONT - LEFT - WHITE
  • 11
    2416-988 PANEL, SIDE - LOWER RIGHT - BLACK
    PANEL, SIDE - LOWER RIGHT - BLACK
  • 11
    2416-989 PANEL, SIDE - LOWER LEFT - BLACK
    PANEL, SIDE - LOWER LEFT - BLACK
  • 12
    3411-174 DECAL, LOWER SIDE PANEL - RIGHT
    DECAL, LOWER SIDE PANEL - RIGHT
  • 12
    3411-175 DECAL, LOWER SIDE PANEL - LEFT
    DECAL, LOWER SIDE PANEL - LEFT
  • 13
    1423-133 SCREW, SHOULDER
    SCREW, SHOULDER
  • 14
    8427-602 NUT, LOCK
    NUT, LOCK
  • 15
    2416-990 PANEL, SIDE - UPPER RIGHT - BLACK
    PANEL, SIDE - UPPER RIGHT - BLACK
  • 15
    2416-991 PANEL, SIDE - UPPER LEFT - BLACK
    PANEL, SIDE - UPPER LEFT - BLACK
  • 16
    3411-176 DECAL, UPPER SIDE PANEL - RIGHT
    DECAL, UPPER SIDE PANEL - RIGHT
  • 16
    3411-177 DECAL, UPPER SIDE PANEL - LEFT
    DECAL, UPPER SIDE PANEL - LEFT
