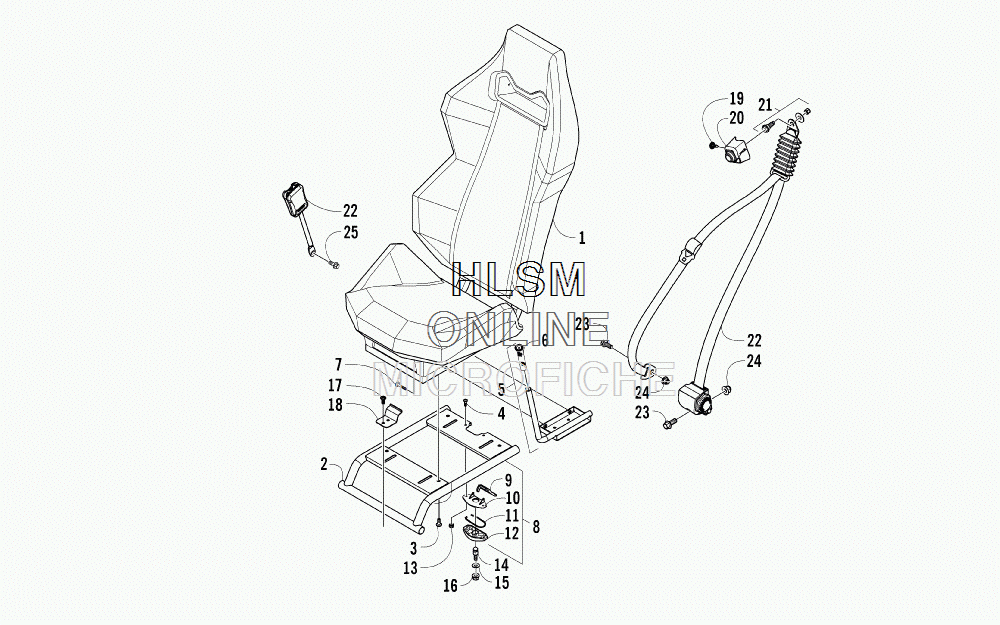

SEAT ASSEMBLY для Arctic Cat Wildcat 1000 Limited - RED [U2013W2W1POSE] (INTERATIONAL) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5506-163 SEAT - ASSEMBLY - RED
    SEAT - ASSEMBLY - RED
  • 2
    4506-662 BASE, SEAT
    BASE, SEAT
  • 3
    0423-817 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    5506-173 HANDLE - ASSEMBLY (INC. 6)
    HANDLE - ASSEMBLY (INC. 6)
  • 6
    4606-945 ...GRIP
    ...GRIP
  • 7
    8477-635 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    2706-164 LATCH, SEAT - ASSEMBLY (INC. 9-12)
    LATCH, SEAT - ASSEMBLY (INC. 9-12)
  • 9
    2606-854 ...LEVER, SEAT LATCH
    ...LEVER, SEAT LATCH
  • 10
    1673-635 ...COVER, SEAT LATCH
    ...COVER, SEAT LATCH
  • 11
    0673-023 ...CLIP, SPRING
    ...CLIP, SPRING
  • 12
    1673-634 ...BACK, SEAT LATCH
    ...BACK, SEAT LATCH
  • 13
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 14
    0423-559 STUD, LATCH - SEAT
    STUD, LATCH - SEAT
  • 15
    0423-073 WASHER
    WASHER
  • 16
    8424-002 NUT
    NUT
  • 17
    8408-821 SCREW, CAP
    SCREW, CAP
  • 18
    4506-691 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 19
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    2416-936 COVER, SEAT BELT - RIGHT
    COVER, SEAT BELT - RIGHT
  • 20
    2416-937 COVER, SEAT BELT - LEFT
    COVER, SEAT BELT - LEFT
  • 21
    0423-915 SCREW, SHOULDER - ASSEMBLY
    SCREW, SHOULDER - ASSEMBLY
  • 22
    5506-159 BELT, SEAT - ASSEMBLY
    BELT, SEAT - ASSEMBLY
  • 23
    1423-182 SCREW, CAP
    SCREW, CAP
  • 24
    1423-184 NUT, LOCK
    NUT, LOCK
  • 25
    1423-183 SCREW, CAP
    SCREW, CAP
