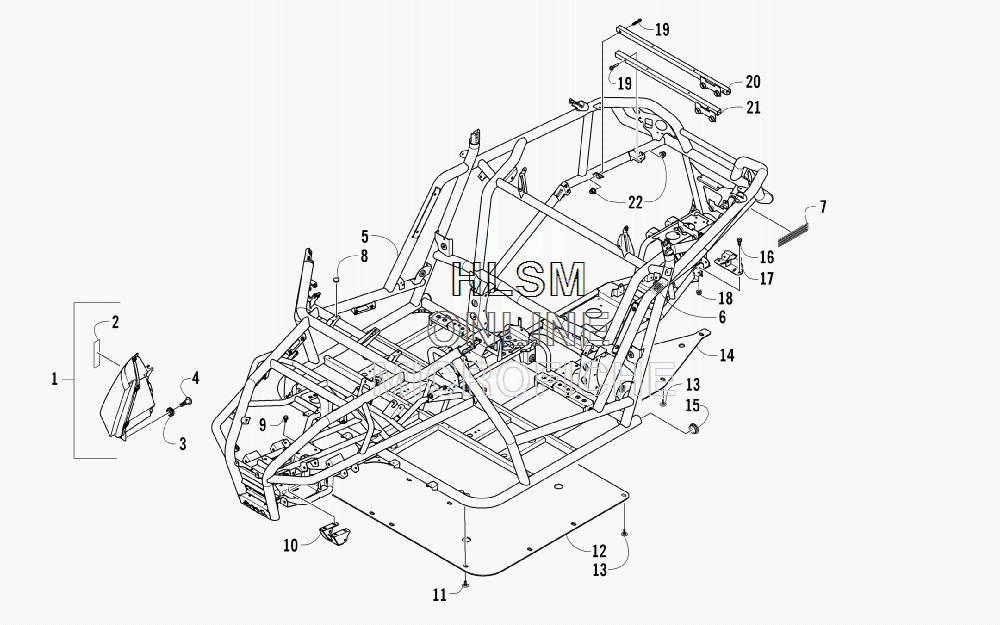

FRAME- HEADLIGHTS- AND RELATED PARTS для Arctic Cat Wildcat 1000 - ORANGE [U2013W3W1PUSY] (LATE MODEL) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0509-064 HEADLIGHT ASSEMBLY - RIGHT (INC. 2)
    HEADLIGHT ASSEMBLY - RIGHT (INC. 2)
  • 1
    0509-065 HEADLIGHT ASSEMBLY - LEFT (INC. 2)
    HEADLIGHT ASSEMBLY - LEFT (INC. 2)
  • 2
    2411-972 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 2
    2411-973 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 3
    1423-104 GROMMET
    GROMMET
  • 4
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 5
    5506-223 FRAME, MAIN (INC. 6-7)
    FRAME, MAIN (INC. 6-7)
  • 6
    2411-941 ...DECAL, WARNING - ROPS
    ...DECAL, WARNING - ROPS
  • 7
    2411-974 ...DECAL, REFLECTOR - RED
    ...DECAL, REFLECTOR - RED
  • 8
    0406-877 BUMPER
    BUMPER
  • 9
    8409-018 SCREW, CAP
    SCREW, CAP
  • 10
    4506-703 BRACKET, SUPPORT - FRONT GEARCASE
    BRACKET, SUPPORT - FRONT GEARCASE
  • 11
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    4506-406 PLATE, SKID - FRONT
    PLATE, SKID - FRONT
  • 13
    1423-109 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    4506-407 PLATE, SKID - REAR
    PLATE, SKID - REAR
  • 15
    2416-962 PLUG, HOLE
    PLUG, HOLE
  • 16
    8409-025 SCREW, CAP
    SCREW, CAP
  • 17
    4506-637 BRACKET, SUPPORT - REAR GEARCASE
    BRACKET, SUPPORT - REAR GEARCASE
  • 18
    8428-002 NUT, LOCK
    NUT, LOCK
  • 19
    8408-845 SCREW, CAP
    SCREW, CAP
  • 20
    4506-680 TUBE, SUPPORT - FRONT
    TUBE, SUPPORT - FRONT
  • 21
    4506-682 TUBE, SUPPORT - REAR
    TUBE, SUPPORT - REAR
  • 22
    8427-802 NUT, LOCK
    NUT, LOCK
