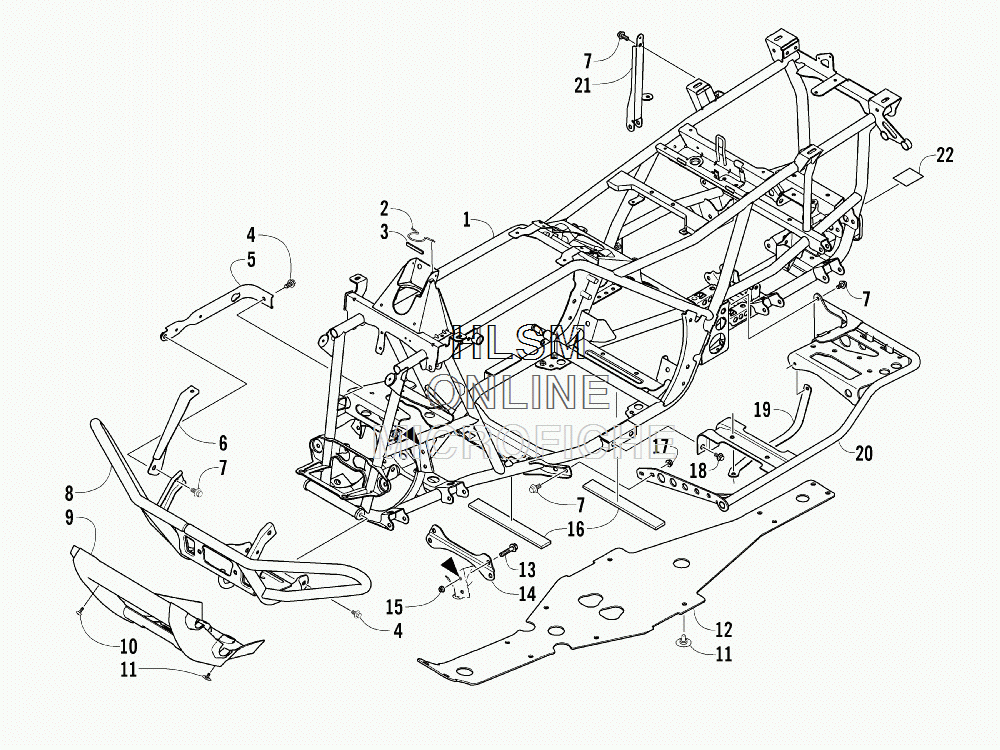

FRAME AND RELATED PARTS для Arctic Cat TRV 550 XT 4x4 [A2013TGO1PUSN] - 2013 года выпуска`
-
№АртикулНазвание
-
14506-819 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
48409-020 SCREW, CAPSCREW, CAP
-
51506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
61506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
78408-816 SCREW, CAPSCREW, CAP
-
81506-855 BUMPERBUMPER
-
91406-360 FASCIA, BUMPER - FRONTFASCIA, BUMPER - FRONT
-
100423-419 SCREW, MACHINESCREW, MACHINE
-
110423-101 SCREW, SHOULDERSCREW, SHOULDER
-
122406-091 PANEL, BELLYPANEL, BELLY
-
138409-025 SCREW, CAPSCREW, CAP
-
142516-852 BRACE, A-ARMBRACE, A-ARM
-
150423-744 NUT, LOCKNUT, LOCK
-
160406-289 PAD, FRAMEPAD, FRAME
-
178424-802 NUTNUT
-
188409-016 SCREW, CAPSCREW, CAP
-
192406-216 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
192406-217 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
201506-848 FOOTREST - RIGHTFOOTREST - RIGHT
-
201506-849 FOOTREST - LEFTFOOTREST - LEFT
-
212506-447 BRACKET, SUPPORTBRACKET, SUPPORT
-
221411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
