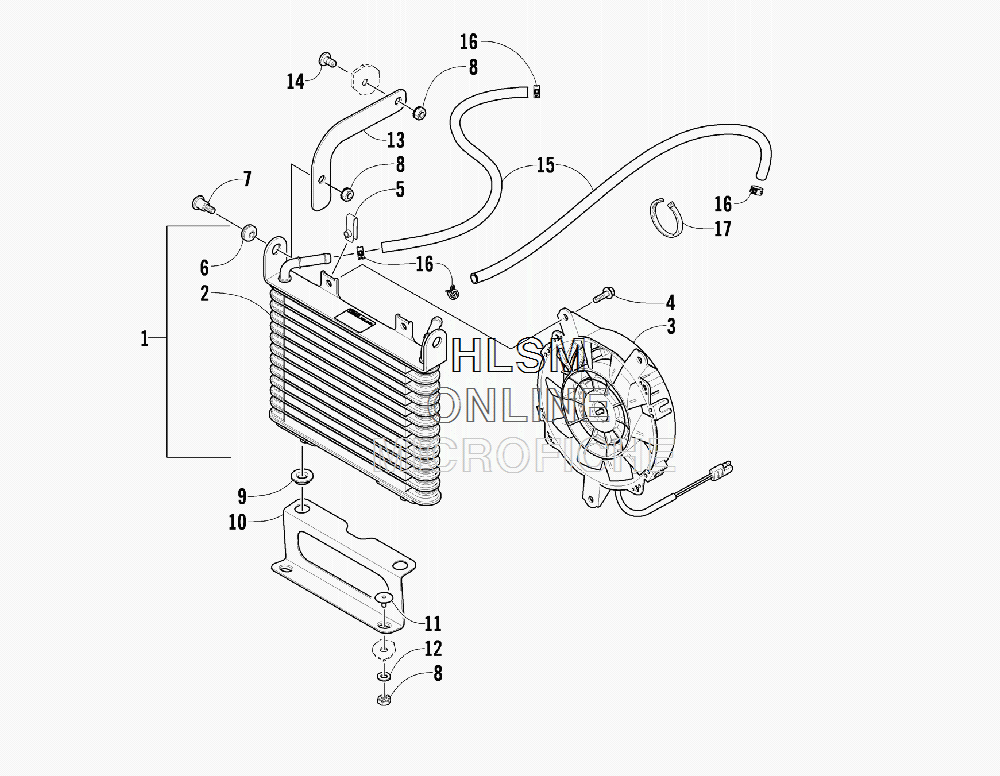

COOLING ASSEMBLY для Arctic Cat TRV 400 Core 4x4 [A2013TBG4BUSP] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0513-026 COOLER, OIL - ASSEMBLY (INC. 2-6)
    COOLER, OIL - ASSEMBLY (INC. 2-6)
  • 2
    0413-224 ...COOLER, OIL
    ...COOLER, OIL
  • 3
    0413-145 ...FAN, COOLING
    ...FAN, COOLING
  • 4
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 5
    0423-031 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 6
    0423-030 ...GROMMET
    ...GROMMET
  • 7
    0423-484 SCREW, SHOULDER
    SCREW, SHOULDER
  • 8
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 9
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 10
    0513-021 BRACKET, MOUNTING - LOWER
    BRACKET, MOUNTING - LOWER
  • 11
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    8050-222 WASHER
    WASHER
  • 13
    0513-020 BRACKET, MOUNTING - UPPER
    BRACKET, MOUNTING - UPPER
  • 14
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0410-044 HOSE, COOLANT
    HOSE, COOLANT
  • 16
    0423-098 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
