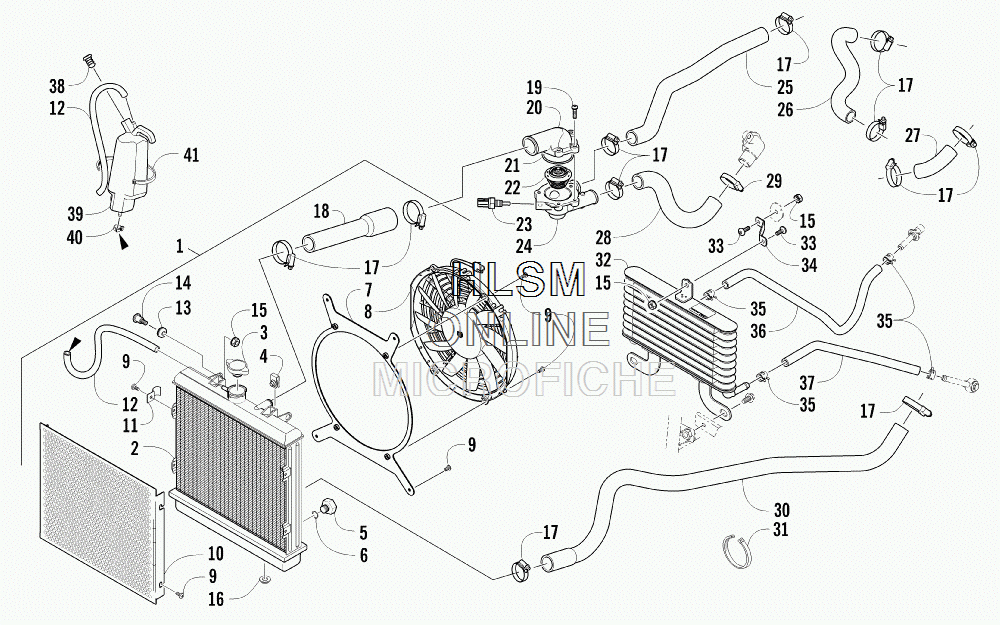

COOLING ASSEMBLY для Arctic Cat TRV 1000 Limited 4x4 [A2013TCW1POSS] (INTERATIONAL) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-258 RADIATOR ASSEMBLY (INC. 2-13)
    RADIATOR ASSEMBLY (INC. 2-13)
  • 2
    0413-216 ...RADIATOR
    ...RADIATOR
  • 3
    0413-255 ...CAP, RADIATOR
    ...CAP, RADIATOR
  • 4
    1623-637 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 5
    0413-195 ...PLUG, DRAIN
    ...PLUG, DRAIN
  • 6
    1602-213 ...O-RING
    ...O-RING
  • 7
    0413-217 ...BRACKET, MOUNTING - FAN
    ...BRACKET, MOUNTING - FAN
  • 8
    0413-123 ...FAN, COOLING
    ...FAN, COOLING
  • 9
    8470-510 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 10
    0413-214 ...SCREEN, RADIATOR
    ...SCREEN, RADIATOR
  • 11
    0423-351 ...CLAMP, WIRE
    ...CLAMP, WIRE
  • 12
    0610-011 ...HOSE - 25 FT
    ...HOSE - 25 FT
  • 13
    0423-030 ...GROMMET
    ...GROMMET
  • 14
    0423-484 SCREW, SHOULDER
    SCREW, SHOULDER
  • 15
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 16
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 17
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0410-120 HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
    HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
  • 19
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    0808-092 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 21
    0830-173 O-RING
    O-RING
  • 22
    0808-093 THERMOSTAT
    THERMOSTAT
  • 23
    0808-124 SENSOR, ENGINE COOLANT TEMPERATURE
    SENSOR, ENGINE COOLANT TEMPERATURE
  • 24
    0808-189 HOUSING, THERMOSTAT
    HOUSING, THERMOSTAT
  • 25
    0410-195 HOSE, COOLANT - NO. 2 - HOT
    HOSE, COOLANT - NO. 2 - HOT
  • 26
    0410-116 HOSE, COOLANT - COLD
    HOSE, COOLANT - COLD
  • 27
    0410-115 HOSE, COOLANT - CROSSOVER - COLD
    HOSE, COOLANT - CROSSOVER - COLD
  • 28
    0410-117 HOSE, COOLANT - NO. 1 - HOT
    HOSE, COOLANT - NO. 1 - HOT
  • 29
    1623-093 CLAMP, HOSE
    CLAMP, HOSE
  • 30
    0410-229 HOSE, COOLANT - LOWER
    HOSE, COOLANT - LOWER
  • 31
    0623-751 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 32
    0413-211 COOLER, OIL
    COOLER, OIL
  • 33
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    0513-022 BRACKET, MOUNTING - OIL COOLER - UPPER
    BRACKET, MOUNTING - OIL COOLER - UPPER
  • 35
    0423-632 CLAMP, HOSE
    CLAMP, HOSE
  • 36
    0410-149 HOSE, OIL COOLER - IN
    HOSE, OIL COOLER - IN
  • 37
    0410-219 HOSE, OIL COOLER - OUT
    HOSE, OIL COOLER - OUT
  • 38
    0413-087 PLUG
    PLUG
  • 39
    0413-086 BOTTLE, OVERFLOW
    BOTTLE, OVERFLOW
  • 40
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 41
    0623-316 TIE, CABLE - 14 IN.
    TIE, CABLE - 14 IN.
